Editing Zones/Outputs for a Door I/O
1. Select a Zone/Output for the door I/O.
2. Click the Edit button.
3. The 2 inputs and the output belonging to this door I/O can be configured as normal door inputs and
outputs. See Editing a door on page278.
4. In order to use the inputs, they have to be assigned to a zone number.

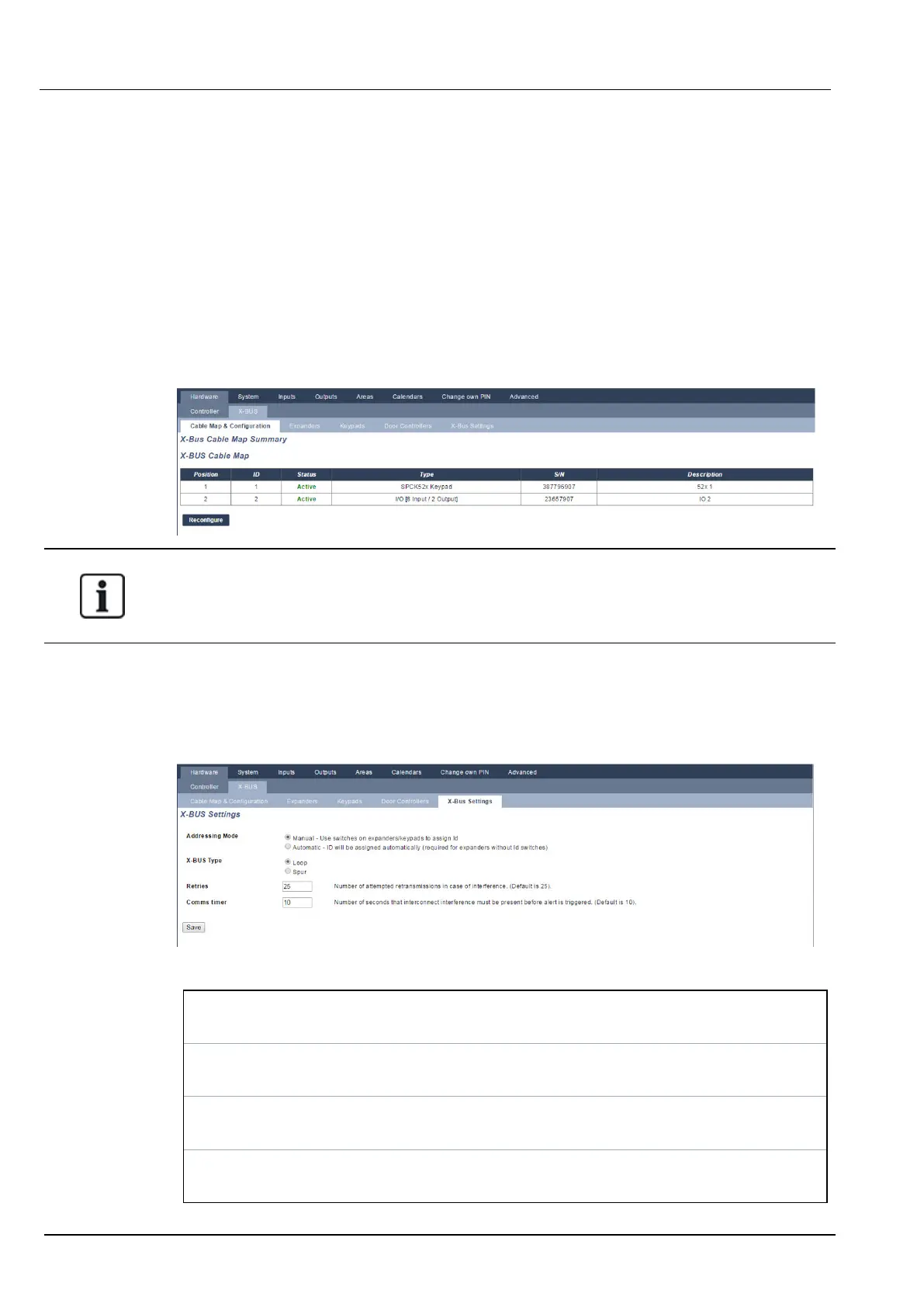

17.10.2.4 Cable Map
For a list of the expanders/keypads in the order they are configured on the SPC system:
l Select Configuration > Hardware > X-BUS > Cable Map & Configuration.
The following page will be displayed:
For more detail on X-BUS interfacing, see Wiring the X-BUS interface on page75.
17.10.2.5 Settings
To configure X-BUS connections:
1. Select Configuration > Hardware >X-BUS > X-Bus Settings.
The following page will be displayed.
2. Configure the fields as described in the table below.
Addressing
Mode
Select if expanders/keypads are either manually or automatically addressed on
the X-BUS.
X-BUS
Type
Select Loop or Spur configuration.
Retries The number of times the system attempts to re-transmit data on the X-BUS
interface before a communications fault is generated. (1–99: default is 25)
Comms
Timer
The length of time before a communication fault is recorded.
SPC4xxx/5xxx/6xxx – Installation & Configuration Manual Engineer programming via the browser
© Vanderbilt 2018 251 A6V10276959-d
11.2018
