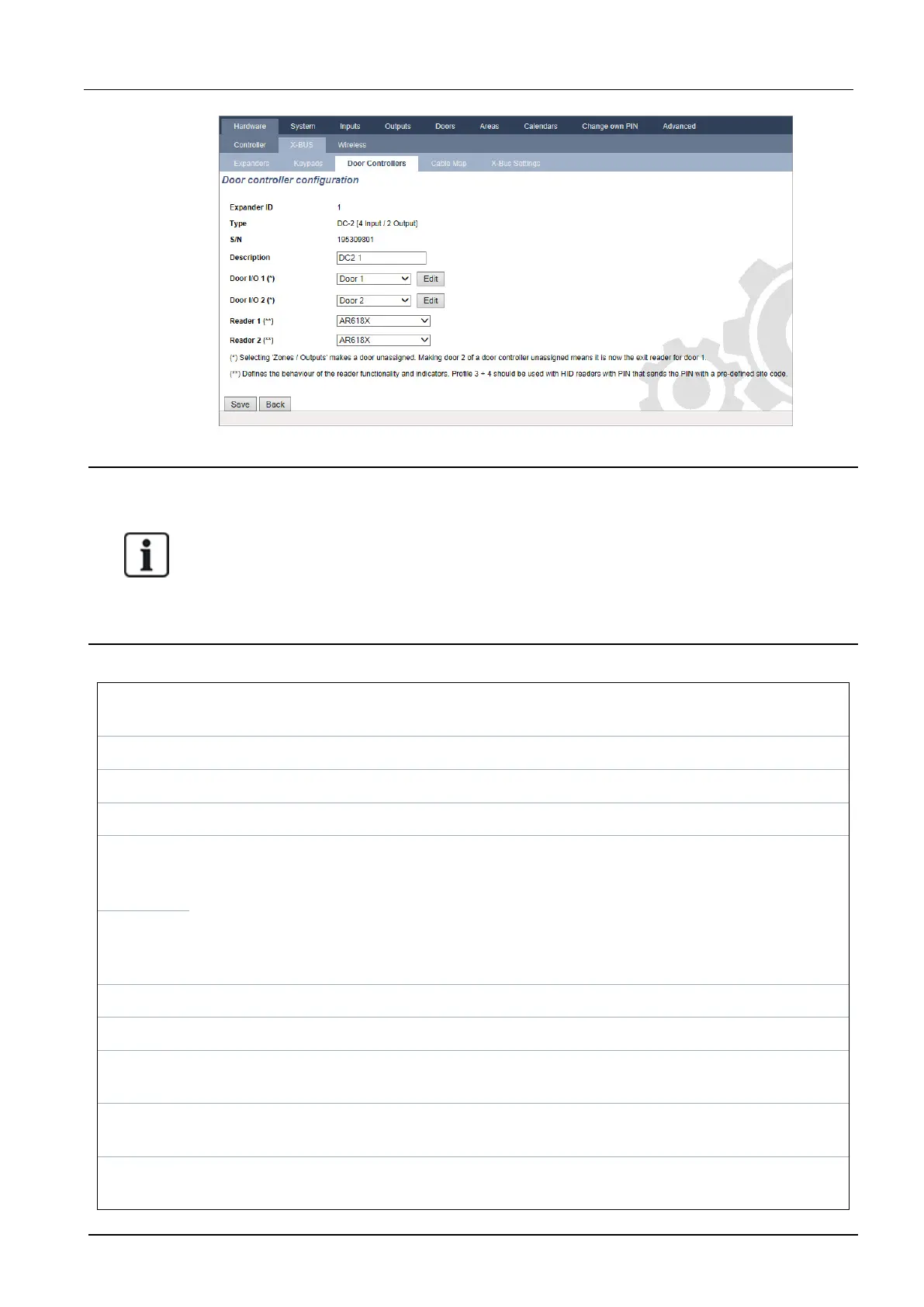

3. Configure the fields as described in the table below.
For naming and identifying:
In loop configuration, each expander is numbered consecutively from the first (expander
connected to the 1A 1B on the controller) to the last (expander connected to the 2A 2B on the
controller).
Example for SPC63xx: Expanders, when numbered 1 through 63, are allocated zones (in
groupings of 8) in subsequent identities of 1 to 512 (the greatest number in zone identification is
512). Therefore, any expander named or identified by a number greater than 63 has no allocated
zones.
Expander
ID
ID of the door controller set with the rotary switches.
Type Type of the door controller.
S/N Serial number of the door controller.
Description Description of the door controller.
Door I/O 1 l If a door is assigned to the door I/O, select the corresponding door number. If the two inputs
and outputs are configurable, select Zones/Outputs.
l If a door number is selected for the door I/O, the door settings can be changed by clicking on
the edit button. This is equal to Settings > Doors.
l If Zones/Options is selected, the two zones and the one output can be configured by
clicking the edit button.
Door I/O 2
Profile 1 For readers with a green and a red LED.
Profile 2 For VANDERBILT readers with a yellow LED (AR618X).
Profile 3 Profile 3 is used with HID readers that send a PIN to the panel as a card reading with a predefined
site code (0 )
Profile 4 Profile 4 is used with HID readers that send a PIN to the panel as a card reading with a predefined
site code (255 ).
Profile 5 Select to enable Sesam readers. It is also recommended that you select the Override Reader
Profile option to provide feedback on the setting process.
SPC4xxx/5xxx/6xxx – Installation & Configuration Manual Engineer programming via the browser
© Vanderbilt 2018 250 A6V10276959-d
11.2018
