Status The programmed status of that zone. A status value of Normal means that the zone is

programmed to operate normally. The following is a complete list of possible values:

Isolate, Soak, Inhibit, Tamper, Alarm, Fire Exit, Warning Fault, Holdup Fault, Detector Fault, Line

Fault, Panic, Hold Up, Tech, Medic, Lock, Fire, Trouble, PIR Masked, Normal, Actuated,

Tamper, Post Alarm. A zone is in the post alarm status if an alarm occurred and the confirmed

alarm timed out. This reinstates the zone, however it also flags that an alarm did occur.

Performable actions

Refresh Updates the status information displayed for the panel.

Log Click the Log button to view a log of the input status of that zone.

Inhibit Click this button to inhibit a fault or open zone. The inhibit operation will disable that fault or zone for one

arming period only.

Inhibit operation is not available in Security Grade EN 50131 Grade 3.

Restore Click this button to restore the alarm condition of the panel.

Isolate Zone . Isolating a zone will deactivate that zone until such time as the zone is explicitly deisolated

again.

It is recommended that you exercise caution when isolating zones as those zones will not be active

every time the system is SET.

Soak Highlight a zone and click this button to perform a Soak test on that zone.

Seismic

Test

Click this button to initiate a test of the selected seismic sensor. For more information on seismic

sensors, see Seismic Sensors on page353.

Hide

Closed

Click this button to hide all closed inputs.

Filter

Zones

Select a zone type from the dropdown menu. Only the summary of this zone type will be displayed.

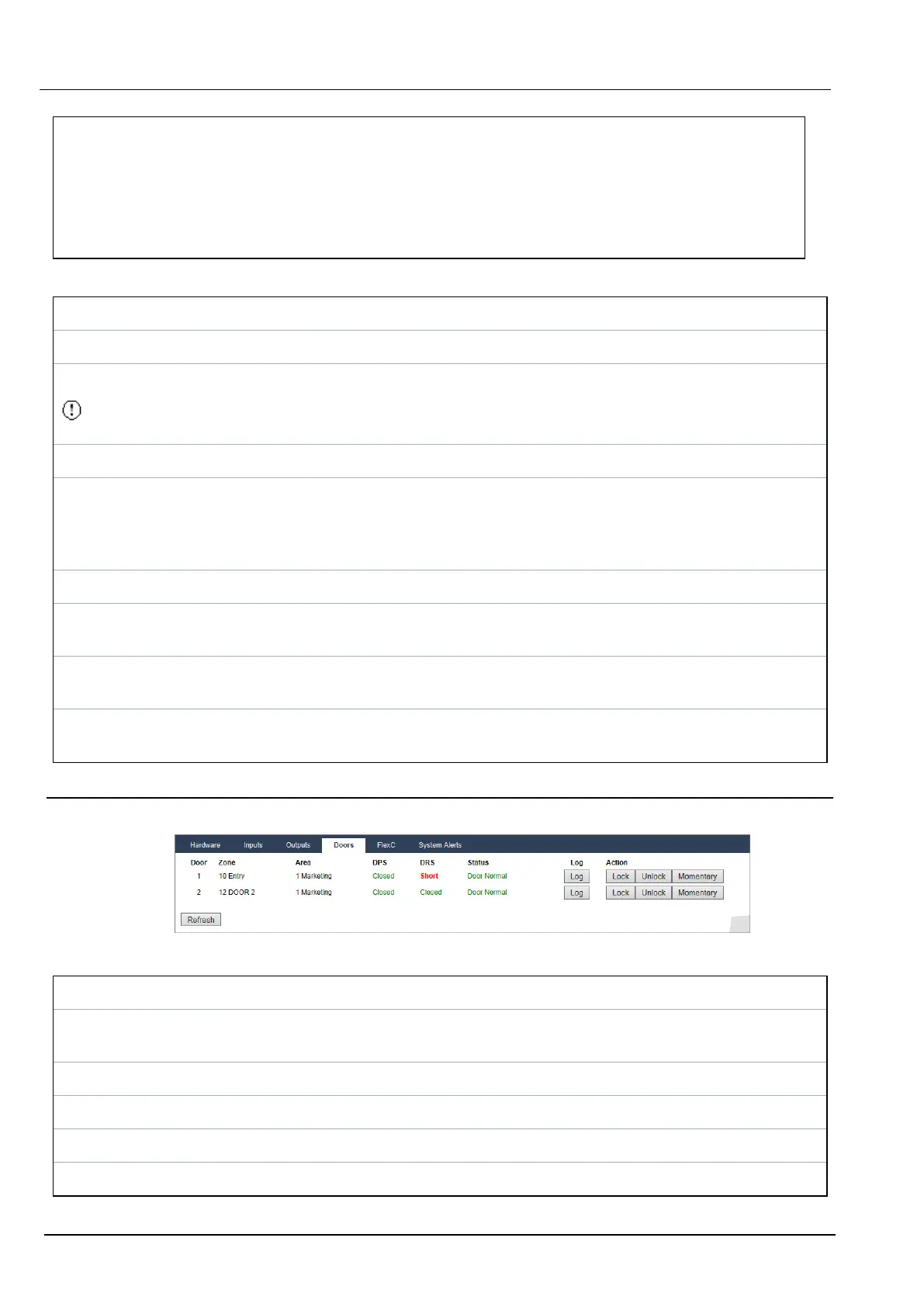

17.6.5 Doors

1. Select Status > Doors.

See tables below for further information.

Door This ID number is a unique identifier for the door.

Zone The zone number the door position sensor is attached to (only if the door position sensor input is also

used as intrusion zone).

Area The area the door position sensor input and the card reader are assigned to.

DPS Status of the door position sensor.

DRS Status of the door release switch.

Status The status of the door (OK, fault).

SPC4xxx/5xxx/6xxx – Installation & Configuration Manual Engineer programming via the browser

11.2018
