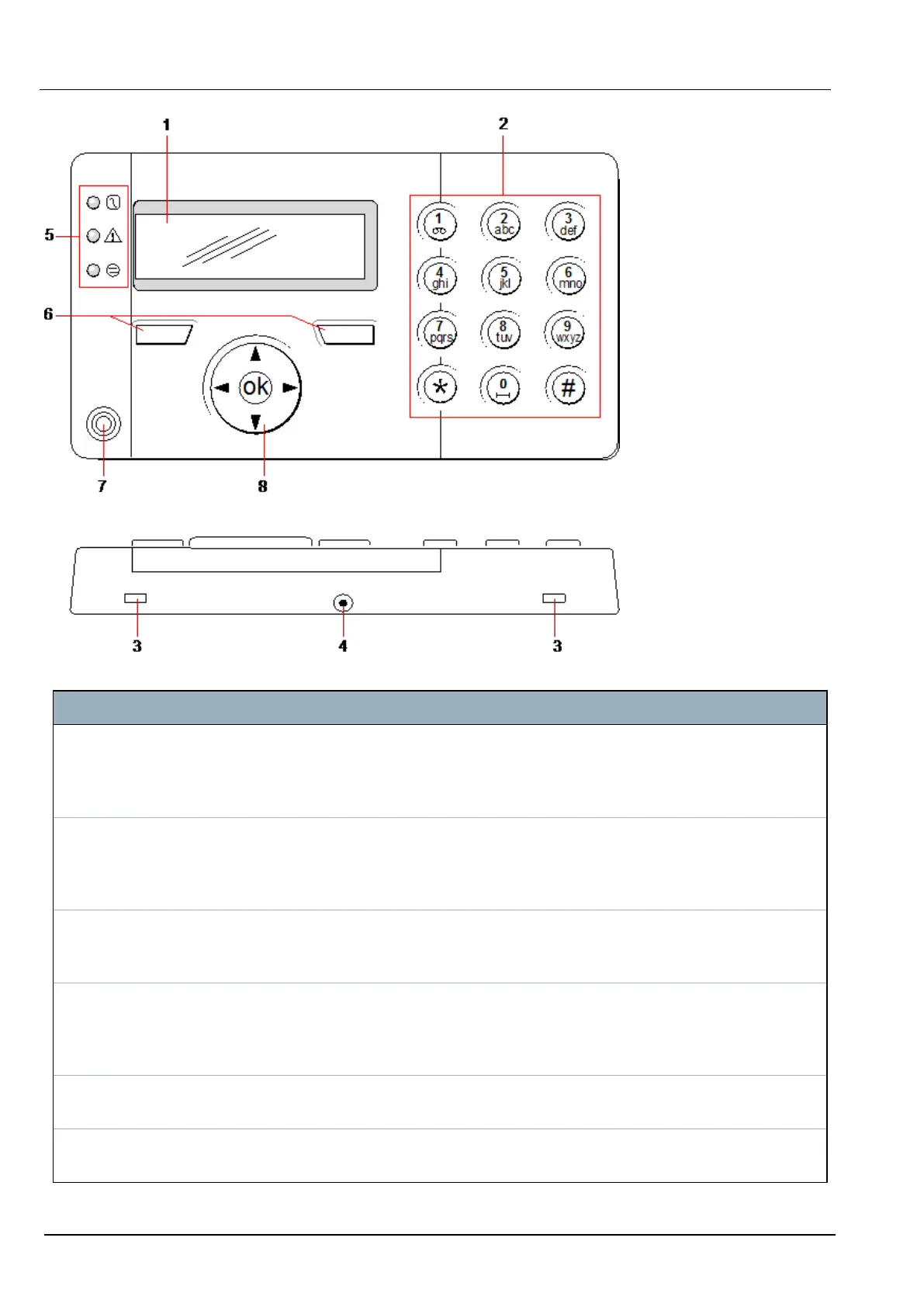

LCD keypad
Number Name Description
1 LCD display The keypad display (2 lines x 16 characters) shows all alert and warning messages and
provides a visual interface for programming the system (engineer programming only).
The display can be adjusted for contrast and under which conditions the backlight
comes on.
2 Alphanumeric
keys
Alphanumeric keypad allow for both text and numeric data entry during programming.
Alphabetic characters are selected by applying the appropriate number of key presses.
To switch between upper and lower case characters, press the hash (#) key. To enter a
numeric digit, hold down the appropriate key for 2 seconds.
3 Leverage
access tabs
The leverage access tabs provide access to the keypad back assembly clips. Users
can unhinge these clips from the front assembly by inserting a 5mm screwdriver into the
recesses and pushing gently.
4 Back
assembly
securing
screw
This screw secures the front and back assemblies on the keypad. This screw must be
removed to open the keypad.
5 LED status
indicators
The LED status indicators provide information on the current status of the system as
detailed in the table below.
6 Soft function
keys
The left and right soft function keys are context sensitive keys to navigate through
menus/programming.
SPC4xxx/5xxx/6xxx – Installation & Configuration Manual Keypad user interface
© Vanderbilt 2018 94 A6V10276959-d
11.2018
