Mixed wiring
10.1.3.2 Examples of incorrect wiring
NOTICE:A mix of star and multi-drop configuration is only allowed if the star point is at the controller
X-BUS port. In this case, all expanders/keypads must be wired in multi-drop configuration without any
other star points in the wiring.

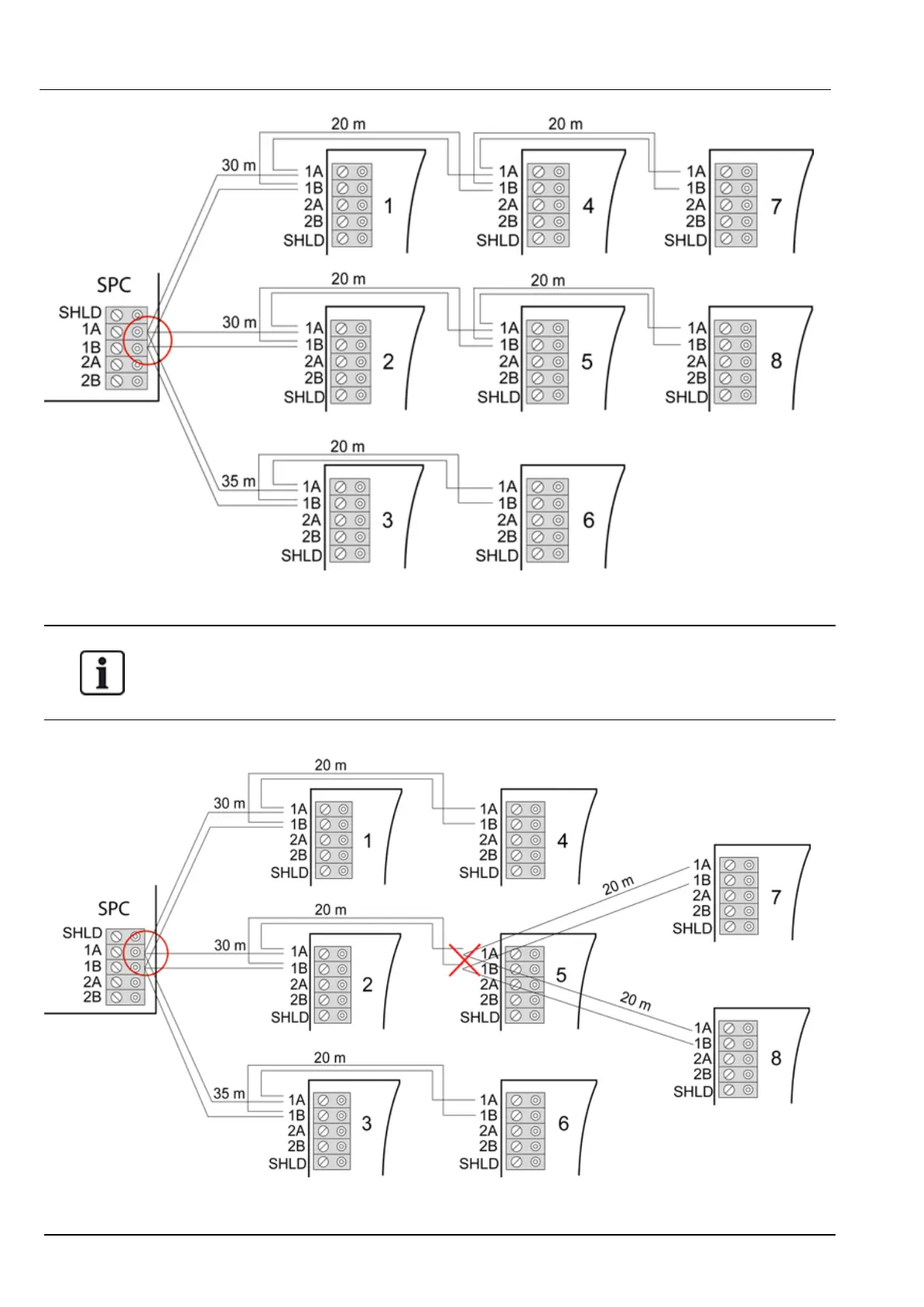

Not allowed wiring with a second star point
SPC4xxx/5xxx/6xxx – Installation & Configuration Manual Wiring the system
© Vanderbilt 2018 82 A6V10276959-d
11.2018
