Number Description Number Description
1 Battery 6 Battery temperature leads
2 Battery strap 7 PSU
3 Fixing tabs 8 Optional expander positions
4 Strap holes 9 Controller
5 Battery leads 10 Antenna
Two batteries, with a maximum capacity of 27Ah, can be accommodated in the battery compartment at
the bottom of the housing.
An optional external antenna must be fitted to a metallic housing if wireless functionality is required.
Knockout holes are available in three positions on the top of the housing where the antenna can be
installed. If an antenna is fitted to the unit, it must be enabled in the firmware.

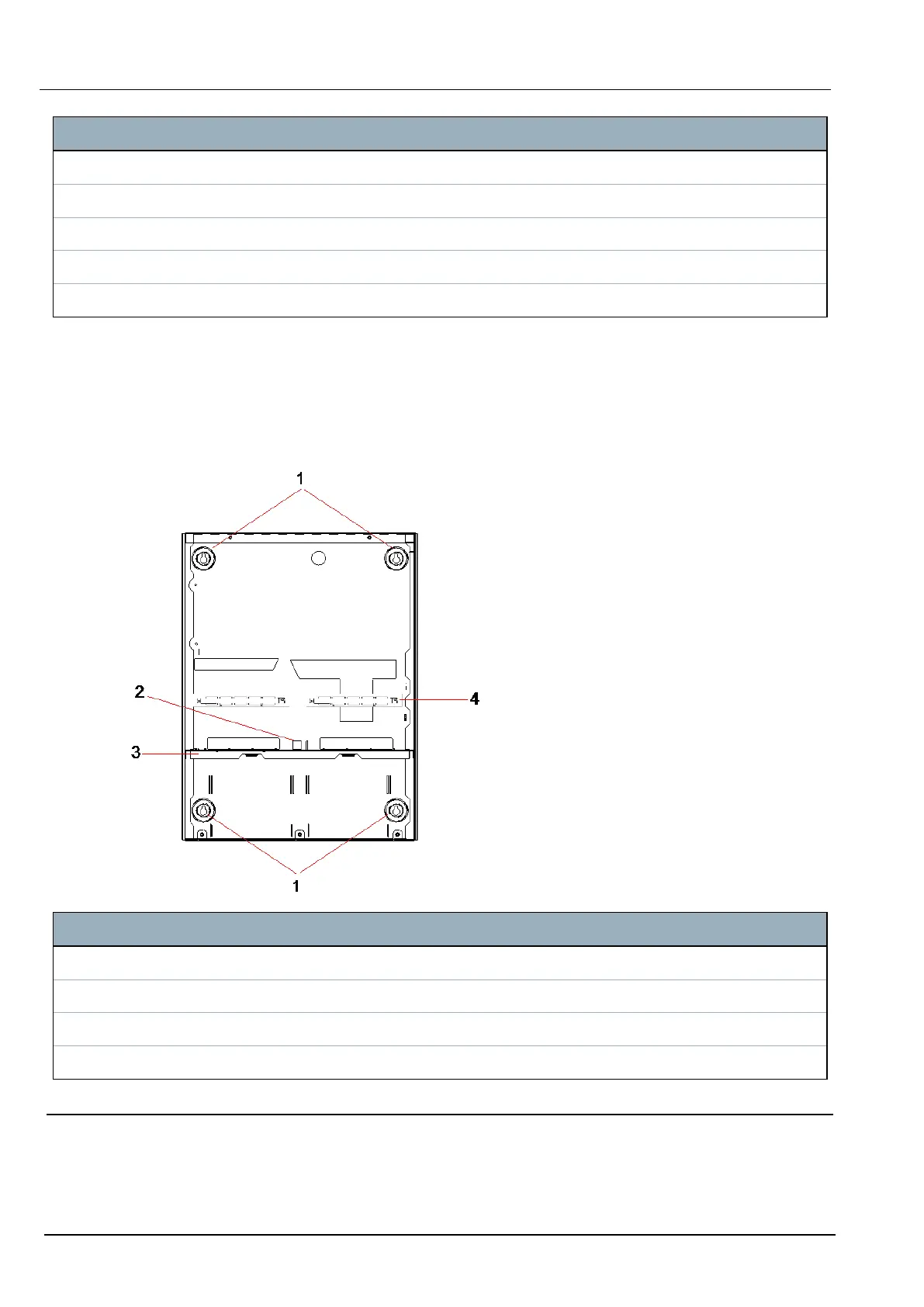

The SPC G5 housing provides 4 screw holes for wall mounting the unit.
Number Description
1 Corner fixings
2 Tamper cutout
3 Shelf separating battery compartment
4 Telecom socket cutout
6.3.1 Tamper protection
The tamper switch and back tamper bracket are fitted to the housing. The switch is used on its own for
front tamper purposes only or used with the back tamper bracket for both front and back tamper protection.
Either back or front tamper protection is required depending on local approval.
SPC4xxx/5xxx/6xxx – Installation & Configuration Manual Mounting system equipment
© Vanderbilt 2018 52 A6V10276959-d
11.2018
