SPCP355.300 Smart PSU Status

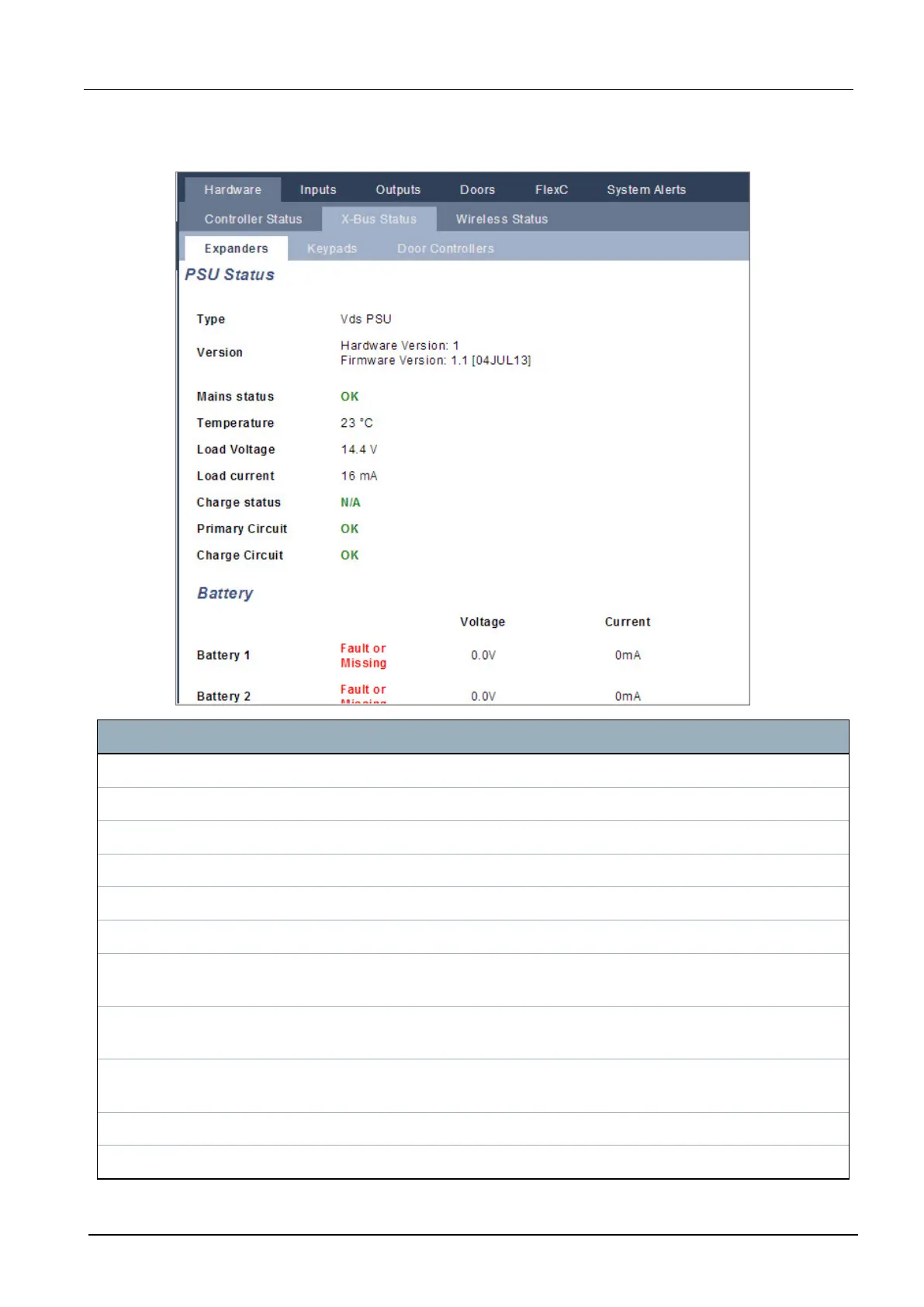

The following image shows the SPCP355.300 Smart PSU status.
Name Description
Type The type of power supply unit (PSU).
Version The version of the PSU.
Mains Status Displays the condition of the mains connection. Possible values are Fault or OK.
Temperature Displays the temperature of the PSU.
Load voltage The voltage on the PSU
Load Current The current drawn by the PSU.
Charge
Status
Displays the condition of the battery charge.
Primary
Circuit
Displays the condition of the primary circuit which supplies power when the mains is
connected.
Charge
Circuit
Displays the condition of the charge circuit which charges the batteries when the mains is
connected.
Battery Displays the charge status, voltage and current available from the batteries.
Outputs Displays the voltage, fuse condition and tamper condition of the PSU outputs.
