Vanderbilt SPC42 Series User Manual

Feature Domestic mode Commercial mode Financial mode
Controller - Zone 1 Front door Front door Front door
Controller - Zone 2 Sitting room Window 1 Window 1
Controller - Zone 3 Kitchen Window 2 Window 2
Controller - Zone 4 Upstairs front PIR 1 PIR 1
Controller - Zone 5 Upstairs rear PIR 2 PIR 2
Controller - Zone 6 PIR hallway Fire exit Fire exit
Controller - Zone 7 PIR landing Fire alarm Fire alarm
Controller - Zone 8 Panic button Panic button Panic button
Zone Types
Controller - Zone 1 ENTRY/EXIT ENTRY/EXIT ENTRY/EXIT
Controller - Zone 2 ALARM ALARM ALARM
Controller - Zone 3 ALARM ALARM ALARM
Controller - Zone 4 ALARM ALARM ALARM
Controller - Zone 5 ALARM ALARM ALARM
Controller - Zone 6 ALARM FIRE EXIT ALARM
Controller - Zone 7 ALARM FIRE ALARM
Controller - Zone 8 PANIC PANIC ALARM

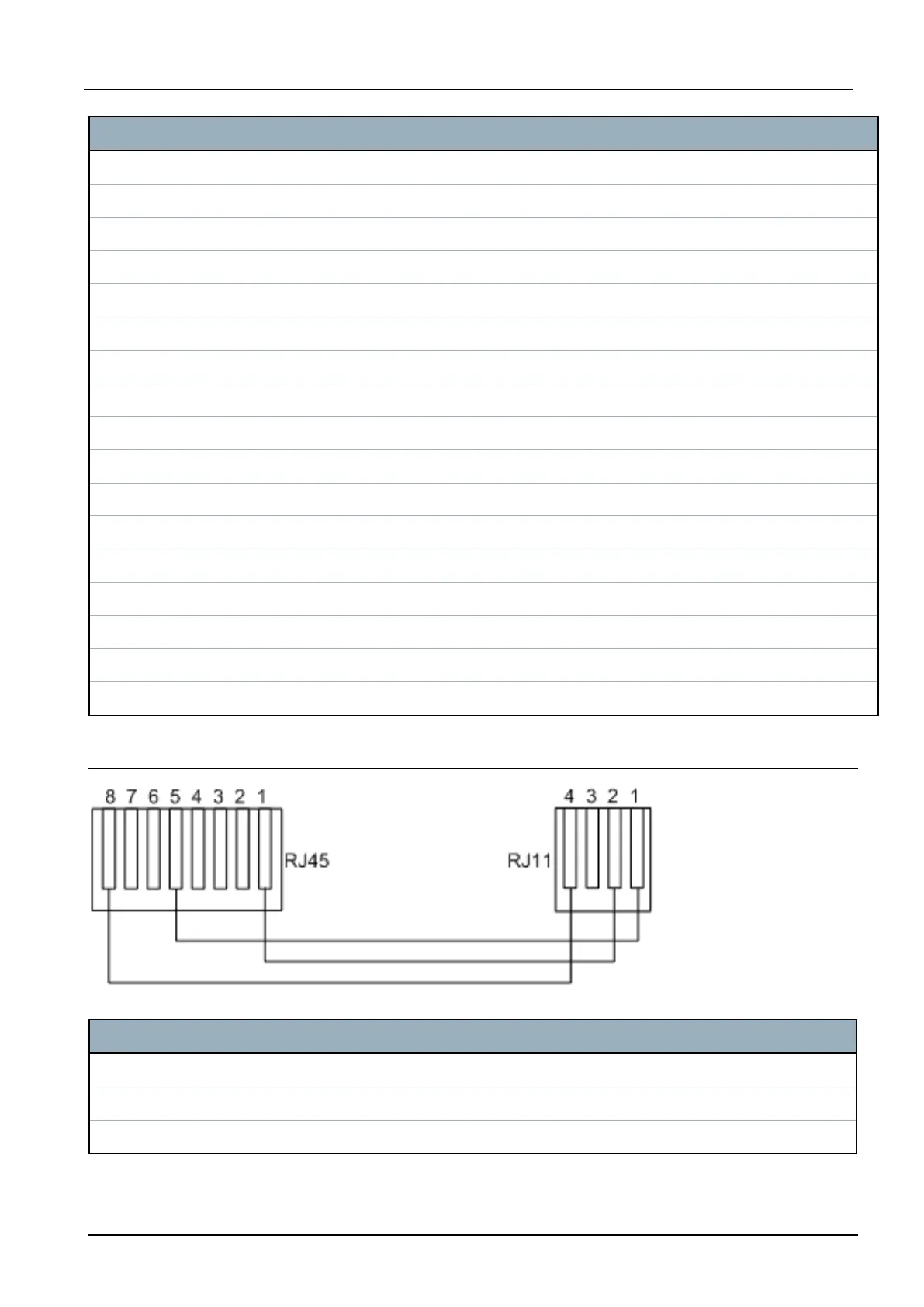

23.6 Wiring of the X10 interface
X10 wiring to the controller
PIN RJ45 RJ11
TX 8 4
GND 5 1
RX 1 2
SPC4xxx/5xxx/6xxx – Installation & Configuration Manual Appendix
© Vanderbilt 2018 367 A6V10276959-d
11.2018
