Step 6. As indicated in Figure 2-13 remove two screws securing prism to arm. IMPORTANT! Be
careful not to lose removed screws. These will be required for reassembly and installation.
Step 7. Install new prism using screws removed in previous step.
Step 8. Install belt around prism assembly.
Step 9. Slide roller back into place so belt is tensioned. IMPORTANT! Do not over-tension or
prism will stall during rotation.
Step 10. Hand tighten hex standoffs.

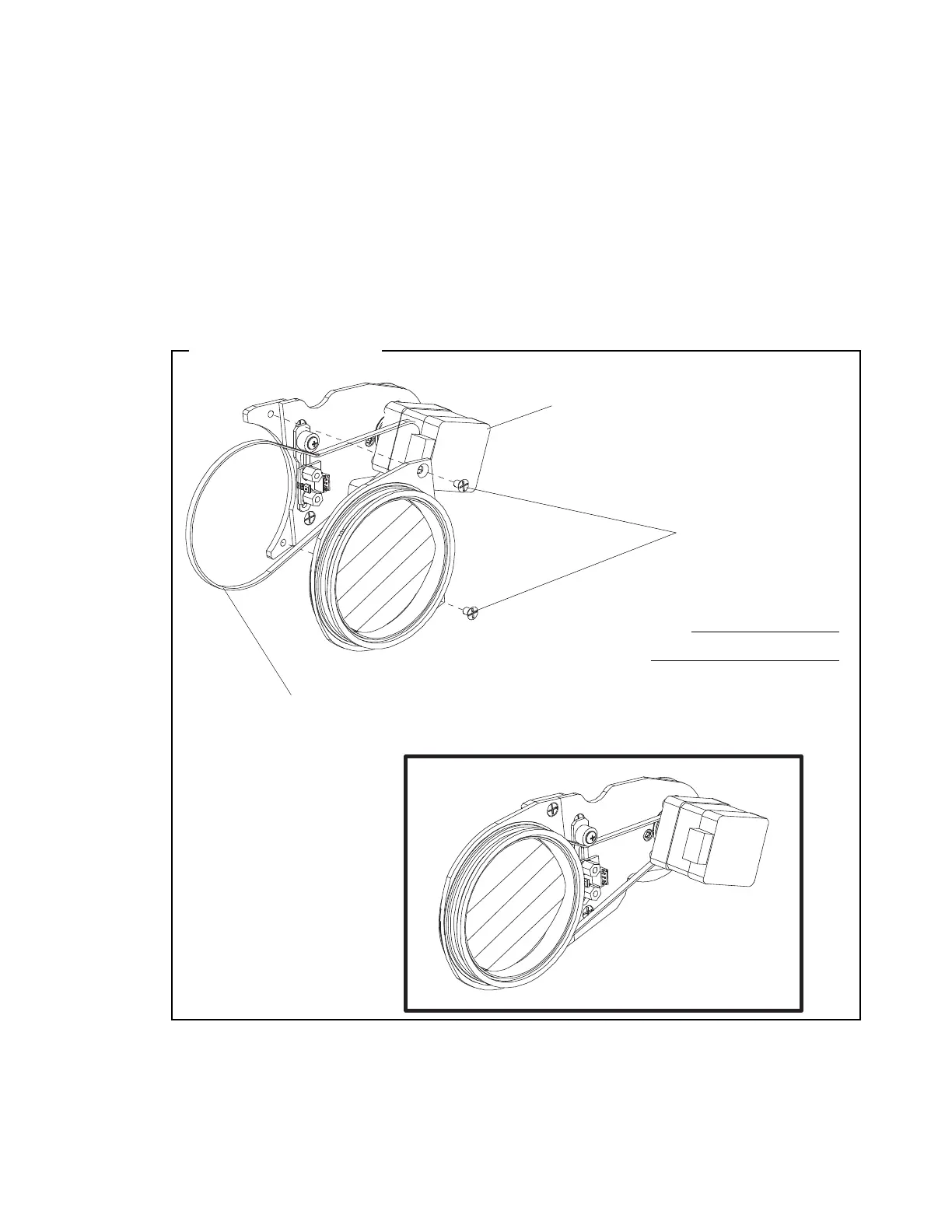

Figure 2-13: Prism Assembly Detail
Step 11. Reinstall head cover.
Prism Assembly (Detail)
Prism Assembly
Drive Belt
Screw
Note:
Assembly shown for clarity.
