Vigor VS Series User Manual

S10
S0
T0
X0
SET S11
SET
RET
S0
SET S0
SET
Y1
M9040
X2 X0
M9002
Y0
SET S10
T0
K50
S11
T1
SET S12
SET
Y2
T1
K100
S12
T2
SET S13
T2
K200
Y3
S13
RST
Y1
RST
Y2
X1
SET S10
X1
106

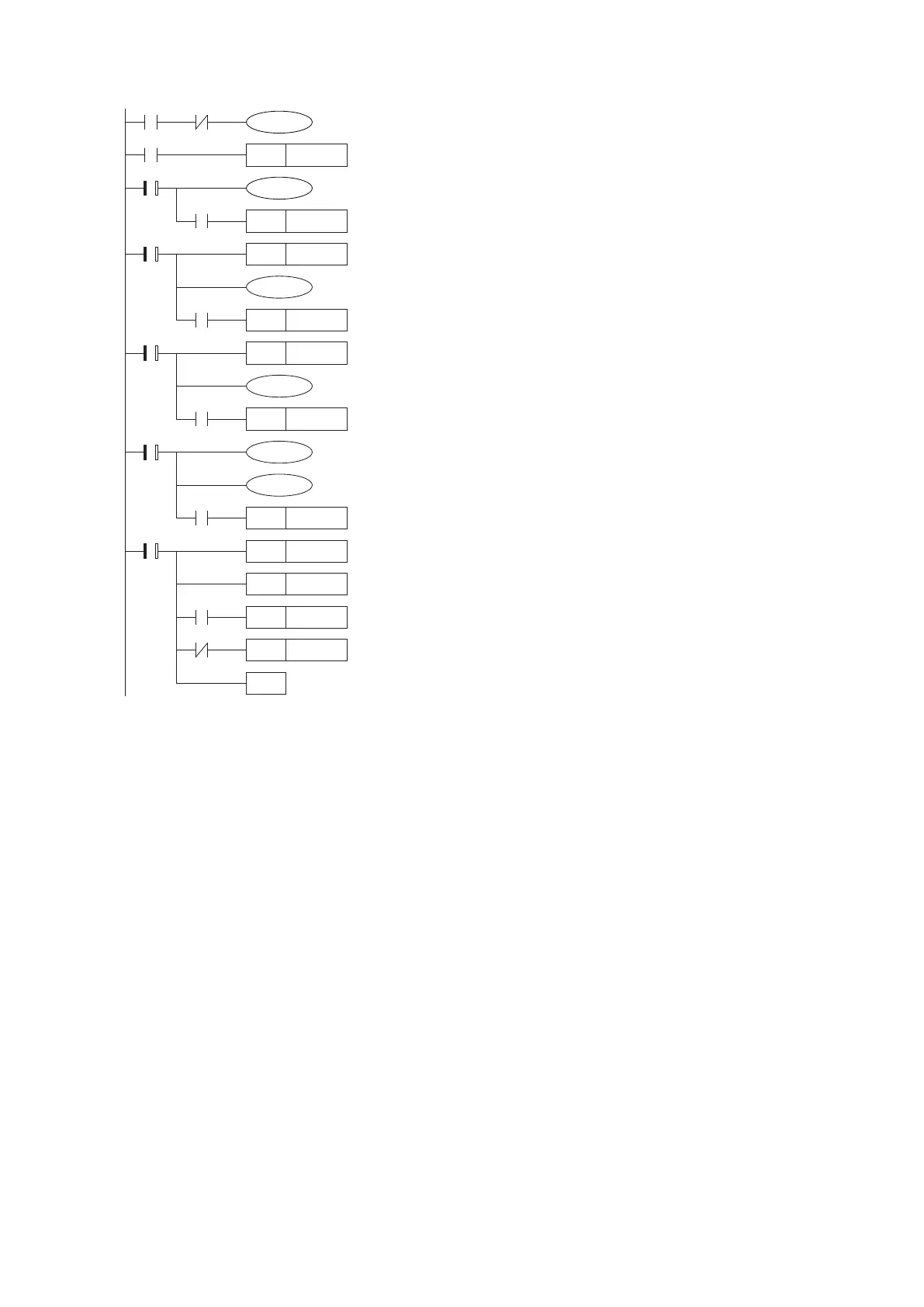

(b) Programming by the STL
Control the step transfer prevent special relay. It allows step transfer at the moment
X0=ON, to achieve the purpose of single-step control.
Activate the step S0.
Turn the READY indicator ON.
When X0=ON, the active step transfers to S10.
Illuminate the lighting.
Activate the coil of 5 second timer.
When the contact T0=ON, the active step transfers to S11.
Drive the valve of surrounding nozzles.
Activate the coil of 10 second timer.
When the contact T1=ON, the active step transfers to S12.
Drive the valve of central nozzle.
Activate the coil of 20 second timer.
When the contact T2=ON, the active step transfers to S13.
Shut the lighting down.
Turn the valve of surrounding nozzles OFF.
When X1=ON, chosen to execute the “Repeat” mode, the active step transfers to
S10.
When X1=OFF, chosen to execute the “Single Run” mode, the active step
transfers to S0.
Returning to standard ladder, step ladder ends.
