Vigor VS Series User Manual

362
Ladder Master S
VS1-32MR
X0 1 2
3 4
5
6 7
10
21 22
23
RUN
ERR
Y0 1 2
3 4
5
6 7
10
11 12
13
PWR
20
11 12
13
14
15 16
17
DC24V
INPUT
STOP
MC
RUN
USB
VSPC-200A

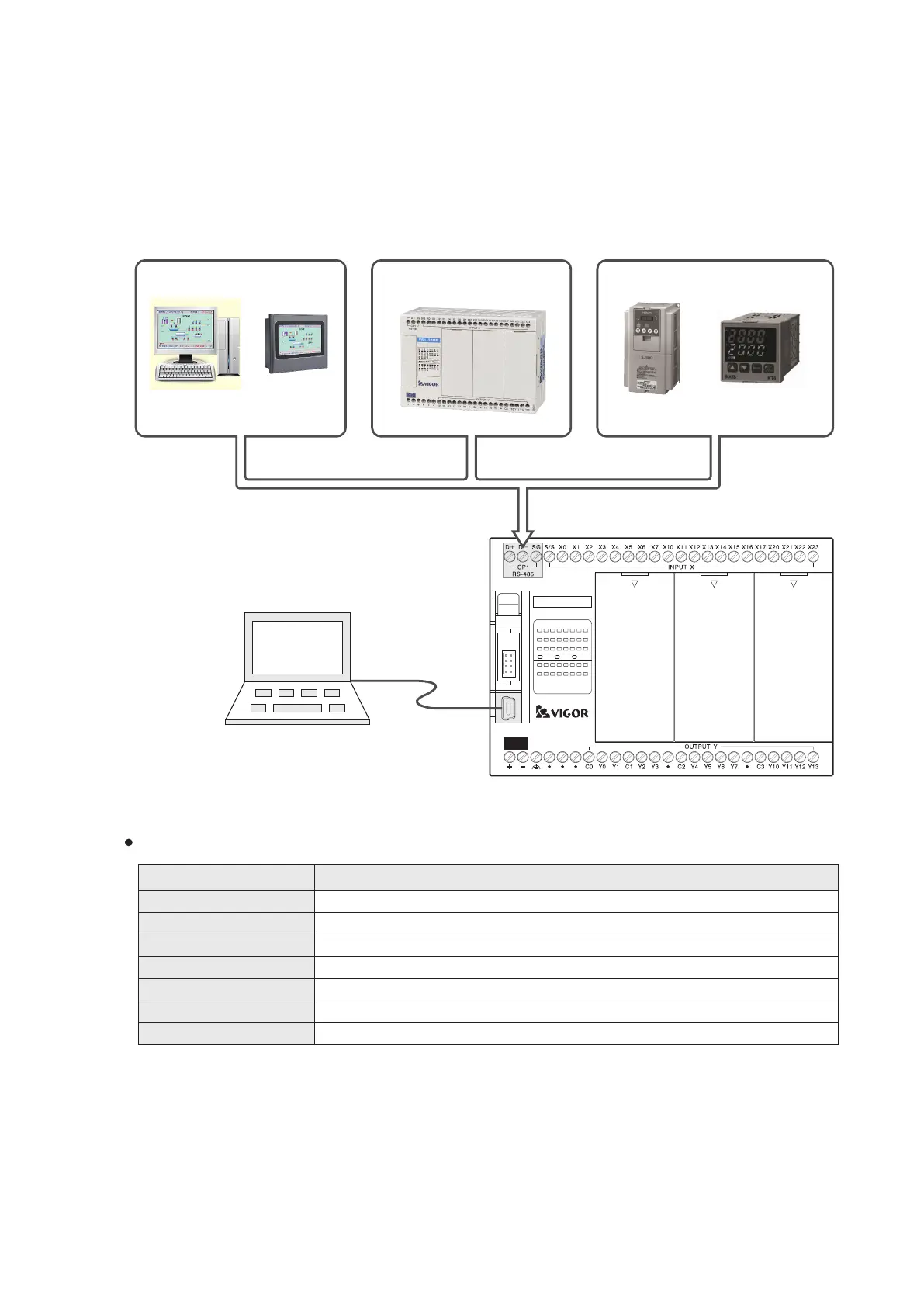

A variety of peripheral equipment
in the market
Inverter
Temperature
controller
VS series PLC
HMI
SCADA
7-2-1 Main Unit Built-in Communication Port
Every VS PLC main unit is equipped with a built-in mini USB port, which is the programming interface with 12 Mbps
transmission rate and uses the “VS Computer Link Protocol”. User can follow the protocol to make a communications
procedure for to access the data in the VS PLC.
VIGOR provides the VSPC-200 noise suppression USB cable that is designed for industrial environment use, could
reduce the USB communication failed. Therefore, use a computer to do the programming can acquire stable and rapid
communication quality.
Furthermore, every VS PLC main unit is equipped with a built-in CP1 communication port, which is a non-isolated
RS-485 interface. Through the installed project (which includes the port’s parameter setting and appropriate program),
this communication port can choose one from a variety of communication functions.
No isolation
50 M
Half-duplex
By the setting of installed project (115,200 bps. Max.)
By the installed project (via the "COM Port setting" page in the programming software)
Fixed 5mm Screw-Clamp Terminal Block
RS-485Communication Interface
Isolation Method
Max. Communication Distance
Communication Method
Baud Rate
Wiring Method
Parameter Conguration
Item
Specification
The specication of CP1
