397
7-3-8 Non Protocol
When the VS PLC’s communication port has been set to the application type of the “Non Protocol”, the PLC does not
execute any specied communication protocol. All communication procedures are operated by the PLC’s user
program. Then the RS instruction is used to receive and send out data in order to complete the communication
operation. This application type is often applied to communicate between PLC and peripheral, such as temperature
controllers, inverters and barcode readers.

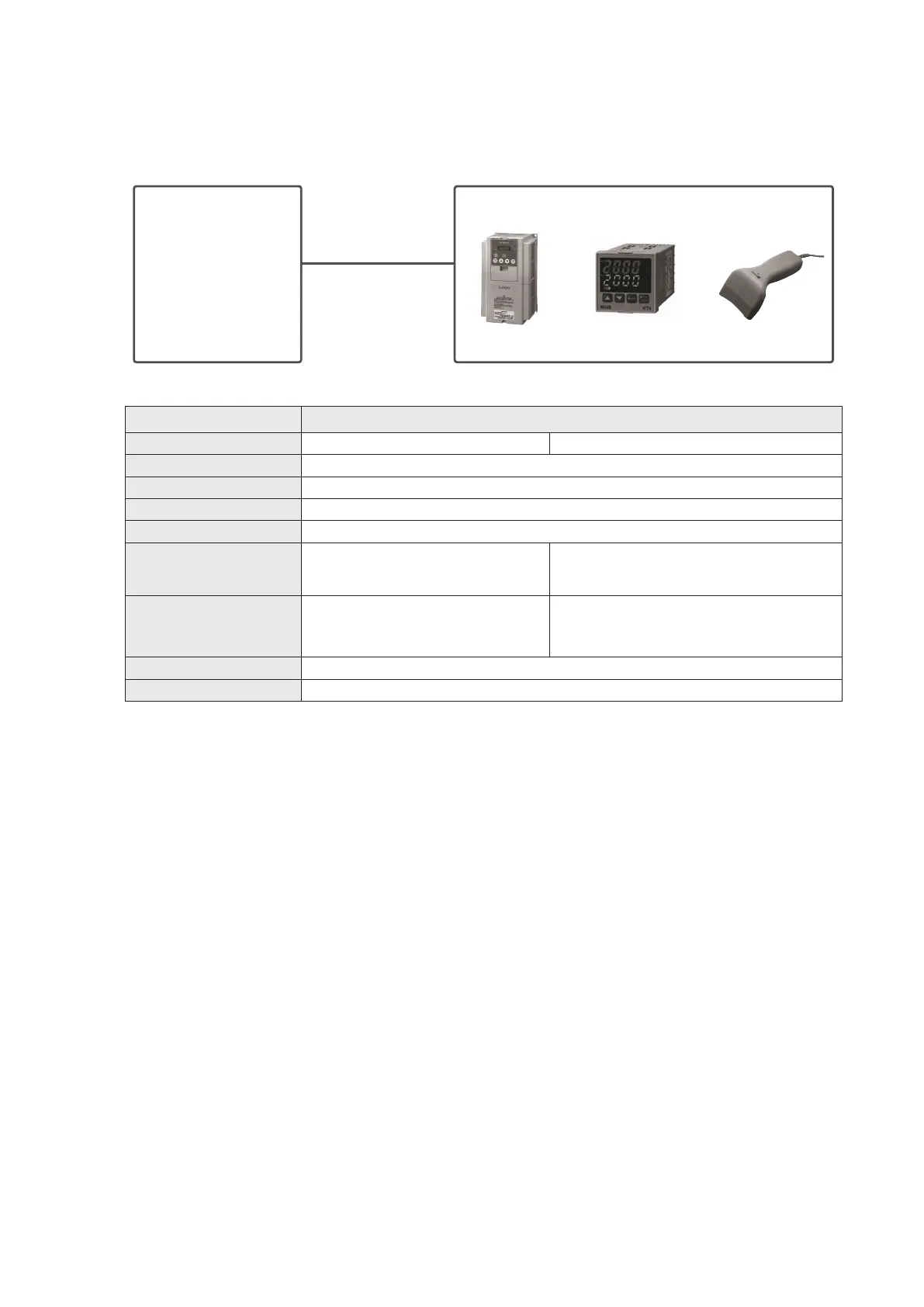

A variety of peripheral equipment in the market
RS- 232
RS- 485
Inverter
Temperature
controller
Barcode reader
VS series PLC
Application type:
Non Protocol
Edit the communication
program for
corresponding equipments
CP2~CP5: VS-D232-EC
CP3, CP5: VS-D52A-EC(CH2)
CP1: Main Unit built-in
CP2~CP5: VS-D485-EC, VS-D485A-EC
CP2, CP4: VS-485-EC, VS-485A-EC, VS-D52A-EC(CH1)
CP3, CP5: VS-ENET-EC(CH2)
VS Series PLC (including VS1, VS2, VSM and VS3)
All the X, Y, M, S, T, C, D, R are included
Linking Equipment
Available Model
Transferable Device
Selectable: 300/600/1200/2400/4800/9600/19200/34800/57600/115200 bps.
VS Compurter Link Protocol (hereby referred to as VS Protocol)
Half-duplex
Bits-per-character: 8 bits; parity check: None; stop bit: 1 bit
Up to 15 meters
Non-isolated: 50 m.; Isolated: 1 km.
Item
Specification
RS-485RS-232Communication Interface
Communication Protocol
Commection Method
Communication Paramete
Baud Rate
Distance
To Next Page
