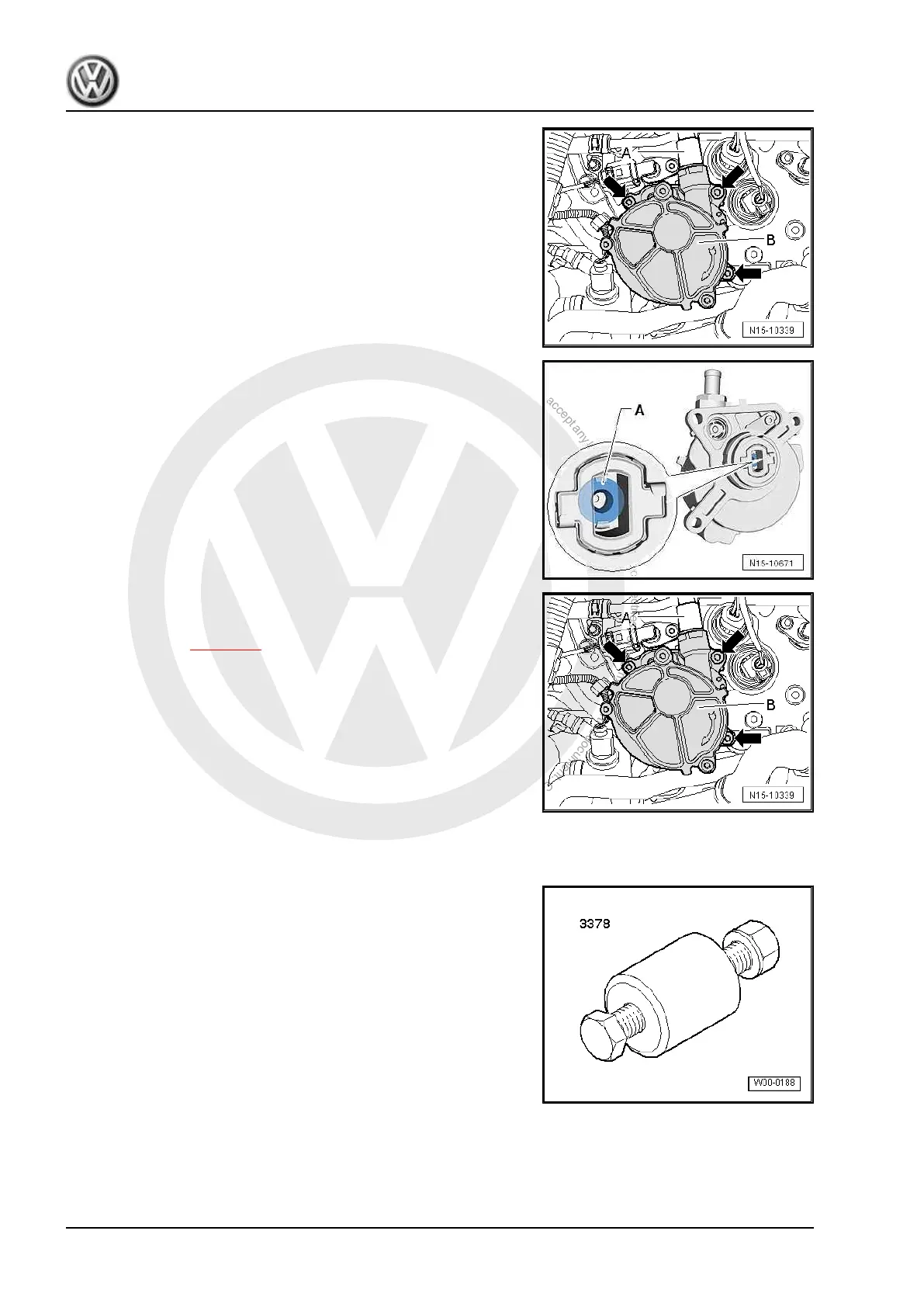

– Pull off vacuum line -A-.
– Remove securing bolts -arrows-.
– Carefully pull vacuum pump from cylinder head.
Installing:
– Check sealing ring in vacuum pump -A- for damage. If the seal
is damaged, the vacuum pump must be renewed.
– Turn rotor in vacuum pump so that the flat sides of input shaft
fit into rotor.
– Push vacuum pump evenly into fitting hole of cover to stop.
– Tighten securing bolts -arrows- and reconnect vacuum line
-A-.
Specified torques ⇒ page 92 .
2.6 Installing cover oil seals
Special tools and workshop equipment required
♦ Fitting sleeve - 3378-
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
94 Rep. gr.15 - Cylinder head, valve gear
