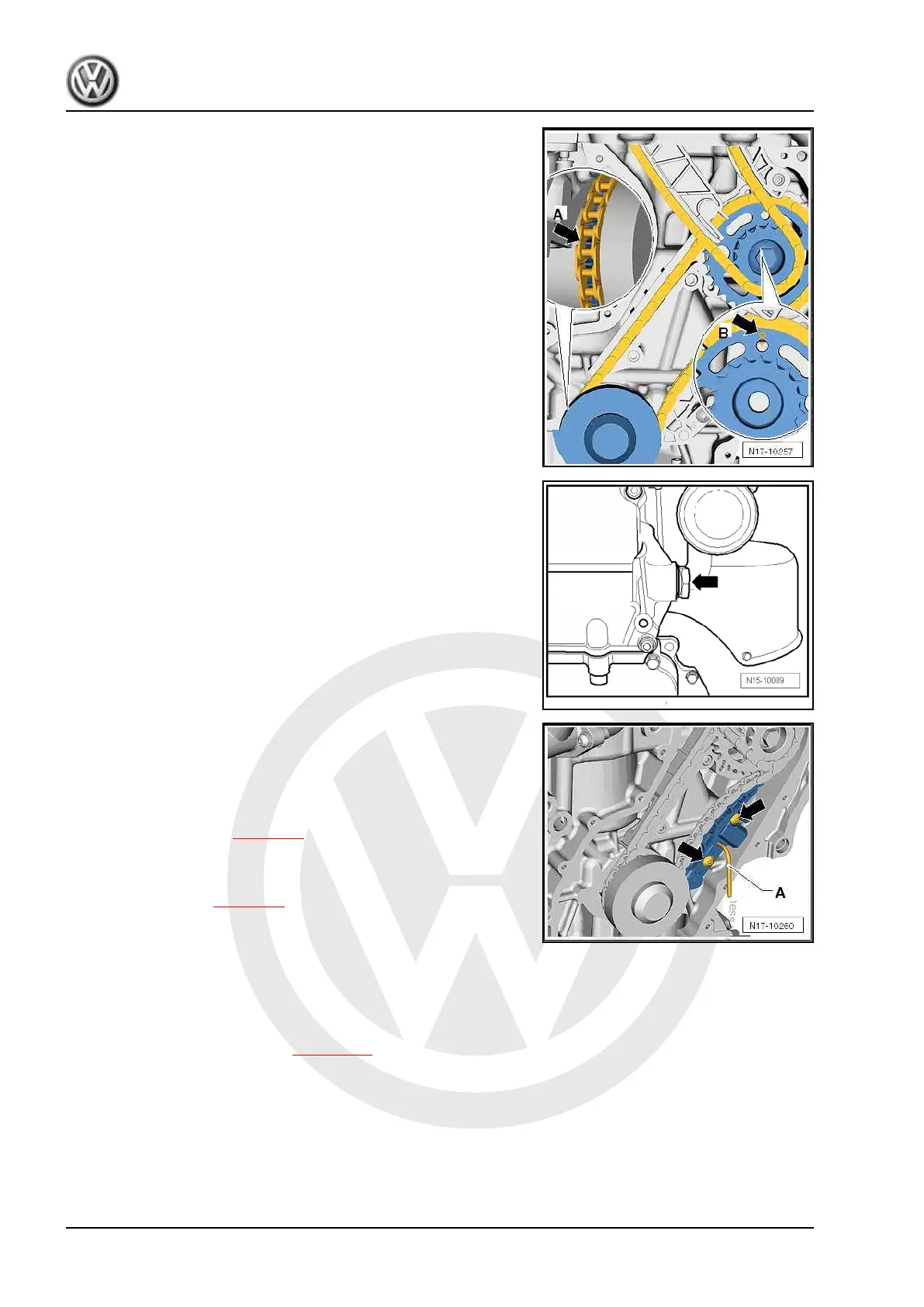

– If the camshaft timing chain has not been removed, carefully
pull sprocket off oil pump and swing upwards a little. In this
position, fit the camshaft timing chain. The marking made dur‐
ing removal must align.
– Fit sprocket onto oil pump shaft again and tighten hand-tight.
– Install chain tensioner for camshaft timing chain -arrow-.
– Install lower chain tensioner and tighten to 8 Nm -arrows-.
– Remove Allan key -A-.
–
Tighten sprockets to 60 Nm + 90° (
1
/
4
turn) further. To do this,
counterhold vibration damper using counterhold - T10172- .
– Install sealing flange ⇒ page 41 .
Further assembly is carried out in the reverse order of removal.
– If the camshaft timing chain has been removed, Install cam‐
shaft timing chain ⇒ page 72 .
1.5 Removing and installing chain drive
sprocket for high-pressure pump
Removing:
– Remove high-pressure pump ⇒ page 249 .
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
78 Rep. gr.15 - Cylinder head, valve gear
