1.6 Removing and installing engine speed
sender - G28-
Note

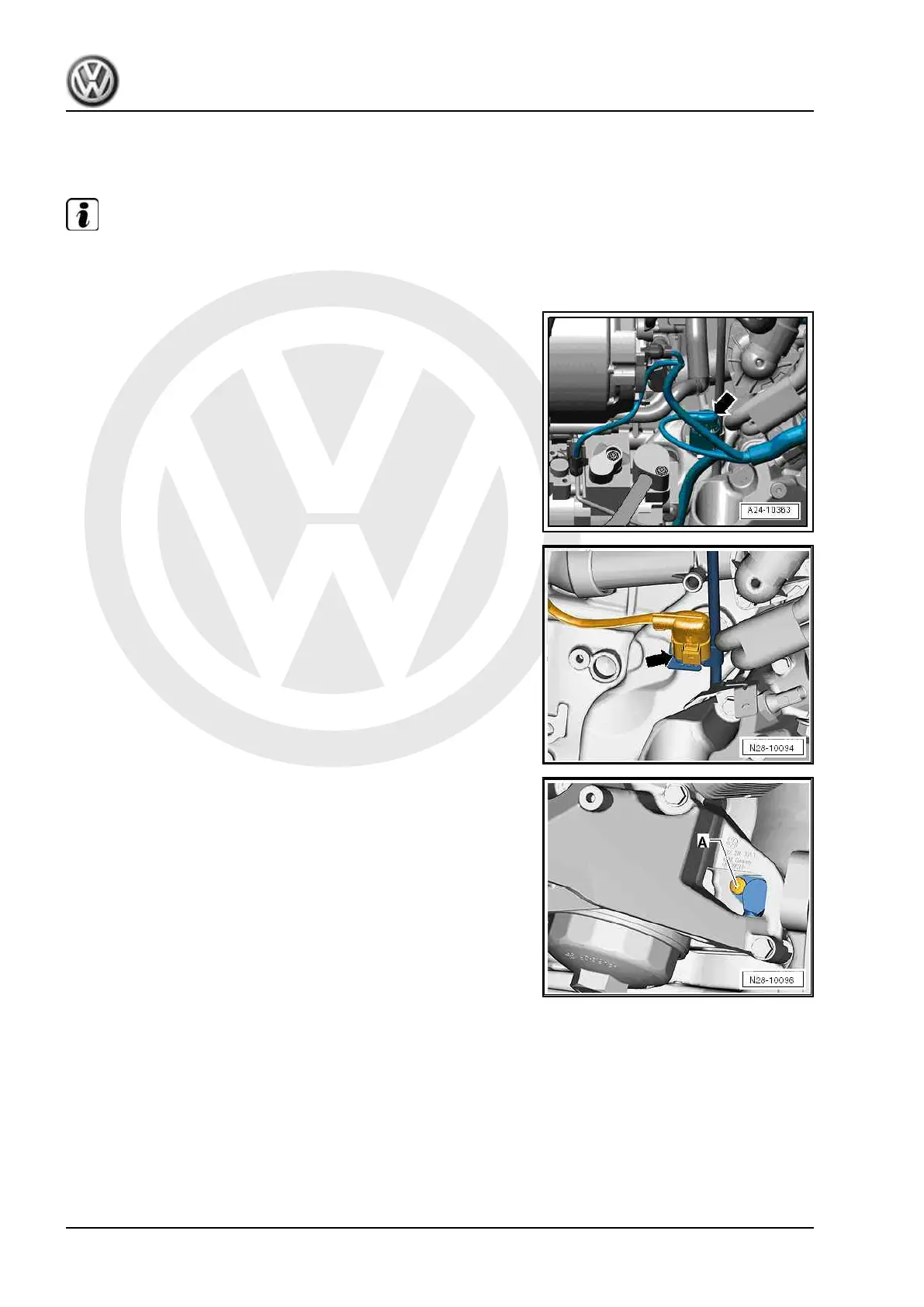

The engine speed sensor - G28- is located behind oil filter hous‐
ing. There is an opening in the oil filter housing so that the engine
speed sender - G28- can be removed.
Installation location of connector for engine speed sender - G28- :
on pipe for dipstick -arrow-.
Removing:
– Detach connector for engine speed sender - G28- -arrow-.
– Remove noise insulation ⇒ General body repairs, exterior;
Rep. gr. 50 ; Assembly overview - noise insulation .
– Move aside cable for engine speed sender - G28- .
– Undo bolt -A-.
– Remove engine speed sender - G28- downwards.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
274 Rep. gr.28 - Ignition system
