2 Oil filter, oil pressure switch
⇒ “2.1 Removing and installing oil spray jet”, page 128
⇒ “2.2 Assembly overview - oil filter housing”, page 128
⇒ “2.3 Removing and installing oil filter housing, engine support”,
page 130
⇒ “2.4 Removing and installing oil pressure switch F1 ”,
page 131
⇒ “2.5 Checking oil pressure and oil pressure switch”,
page 131
2.1 Removing and installing oil spray jet
Special tools and workshop equipment required
♦ Drift ∅ 4 mm
♦ Drift ∅ 6 mm
Note
Oil spray jets are installed in crankshaft bearings 2 to 7.
Removing:

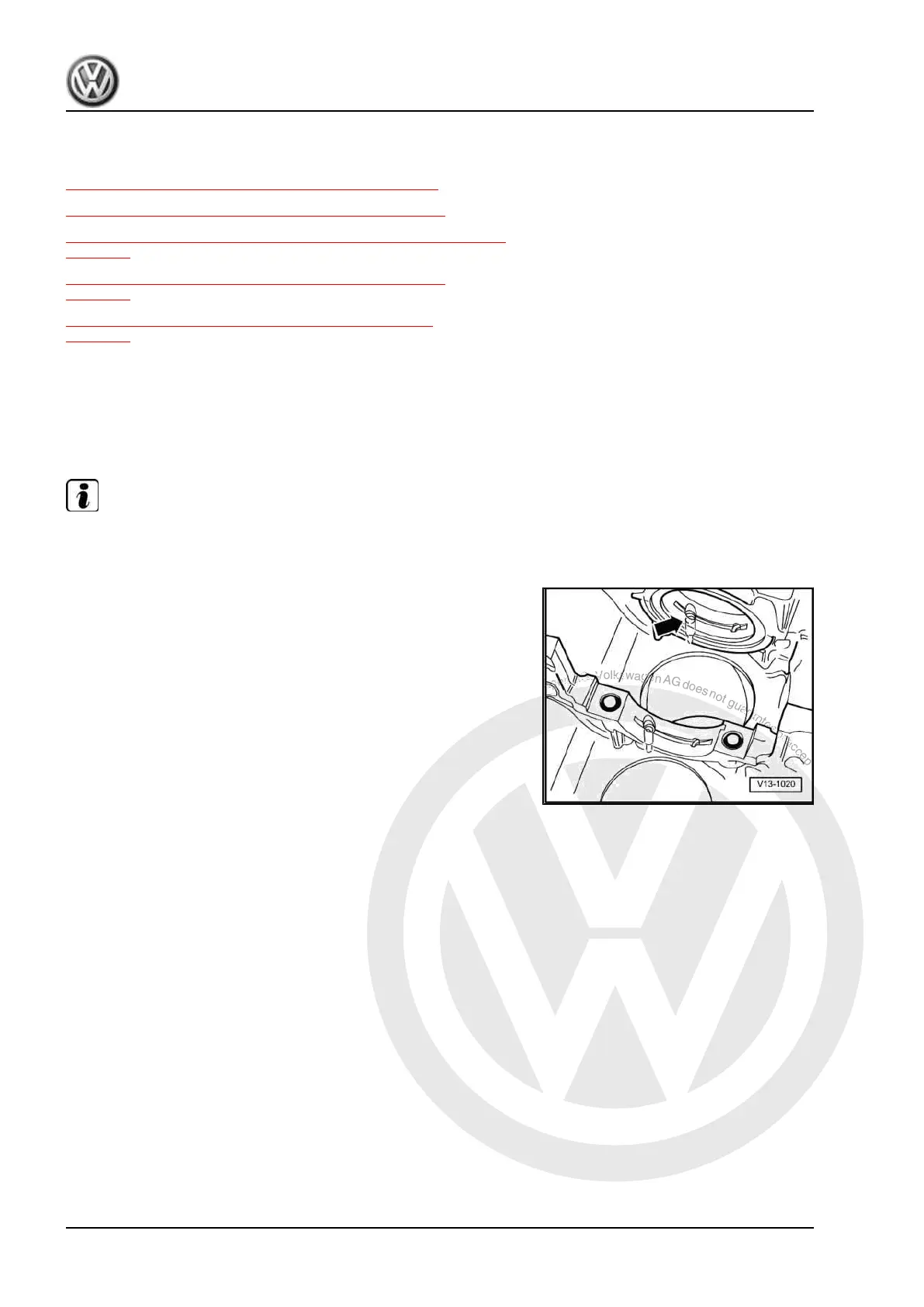

– Press out oil spray jet towards engine mounting -arrow-, using
a 4 mm ∅ punch .
Installing:
– To install, press in oil spray jet by hand using a 6 mm ∅ punch .
2.2 Assembly overview - oil filter housing
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
128 Rep. gr.17 - Lubrication
