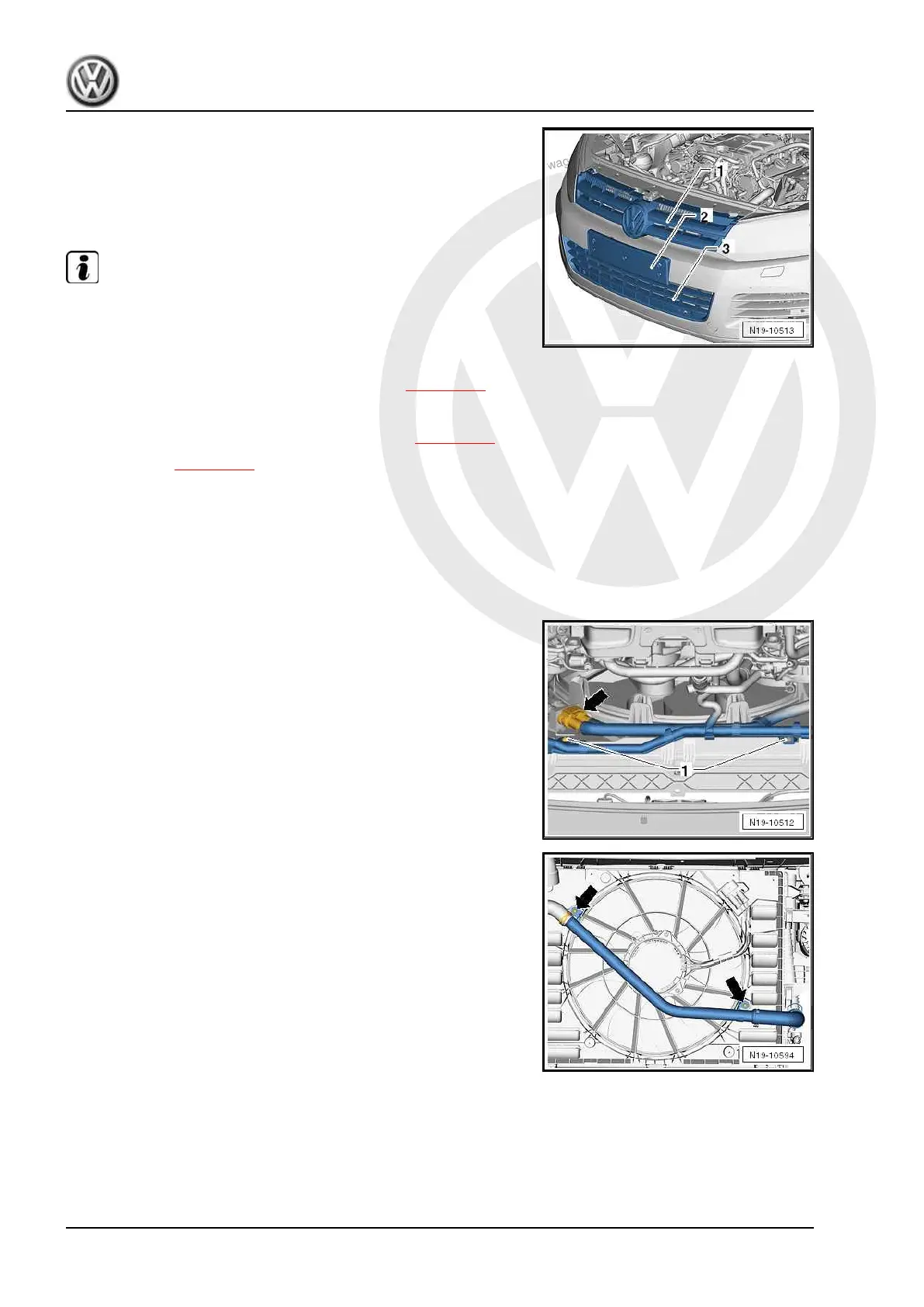

– Fit radiator grille -1- ⇒ Rep. gr. 66 .
– Install number plate carrier -2- and centre air intake grille -3-
⇒ Rep. gr. 63 .
Perform further installation in reverse order, paying attention to
the following:
Note
♦
Secure all hose connections with hose clips corresponding to
the series equipment ⇒ ETKA (electronic parts catalogue) .
♦
If radiator has been renewed, change the entire coolant.
– Connect coolant hoses with plug-in connector ⇒ page 165 .
– Install ATF lines ⇒ Rep. gr. 37 .
– Drain cooling system completely before filling it ⇒ page 155 .
– Add coolant ⇒ page 158 .
– Check ATF level ⇒ Rep. gr. 37
– Install noise insulation ⇒ General body repairs, exterior; Rep.
gr. 50 ; Assembly overview - noise insulation .
5.3 Removing and installing radiator cowl
Removing:
– Unscrew securing bolts -1- for coolant pipes from radiator
cowl. Pull off connectors -arrows- and unclip cable.
– Unscrew coolant pipe from radiator cowl -arrows-.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
170 Rep. gr.19 - Cooling
