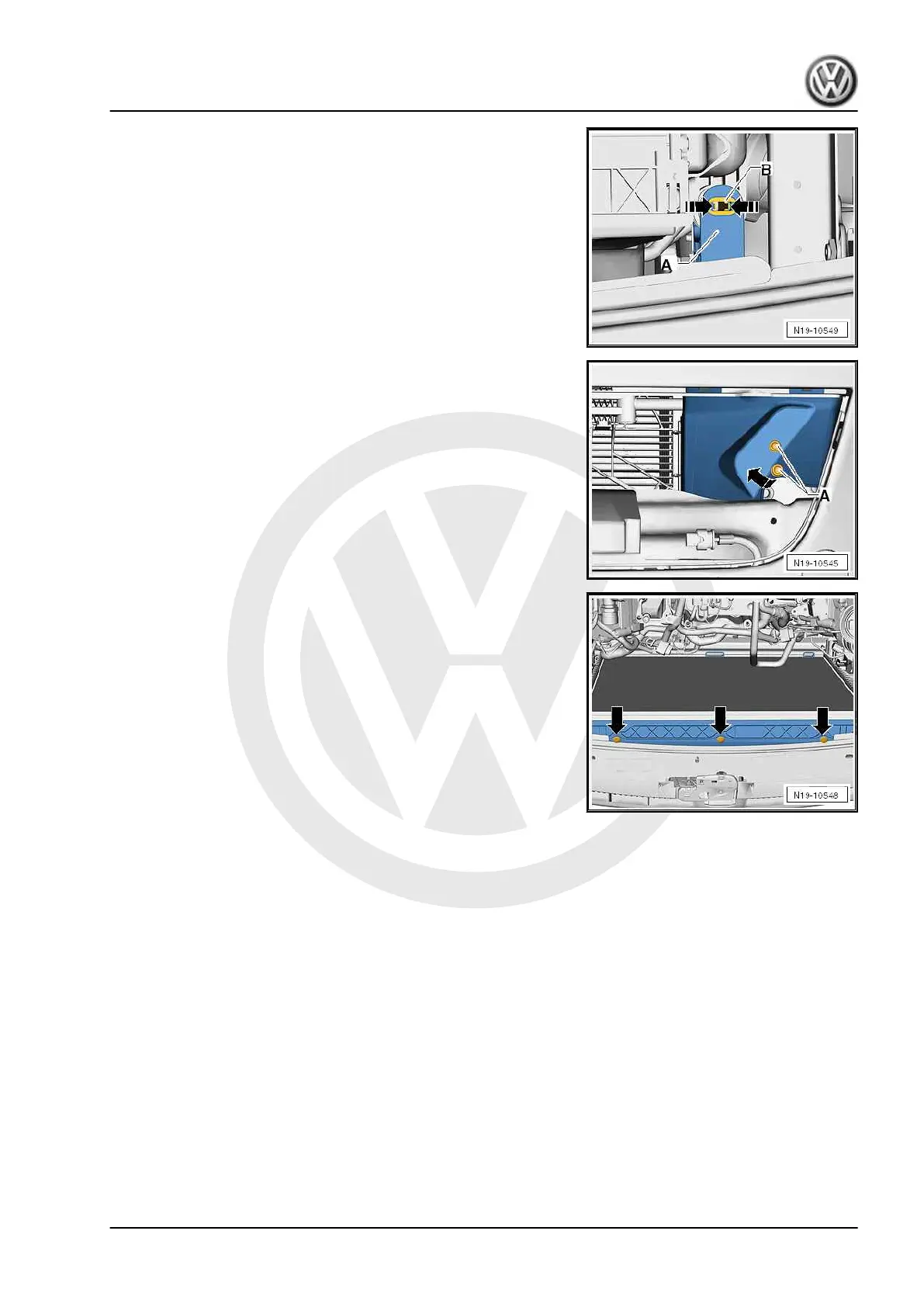

– Insert radiator module into the radiator mountings at top -A-
and push in locking bolt -B-.
– Insert lower side radiator mounting into radiator module and
tighten.
– Press in clips -arrows- for upper air duct on radiator and lock.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
5. Radiator and radiator fans 169
