2 Identification
⇒ “2.1 Engine number/engine data”, page 3
⇒ “2.2 Numbering of cylinders”, page 4

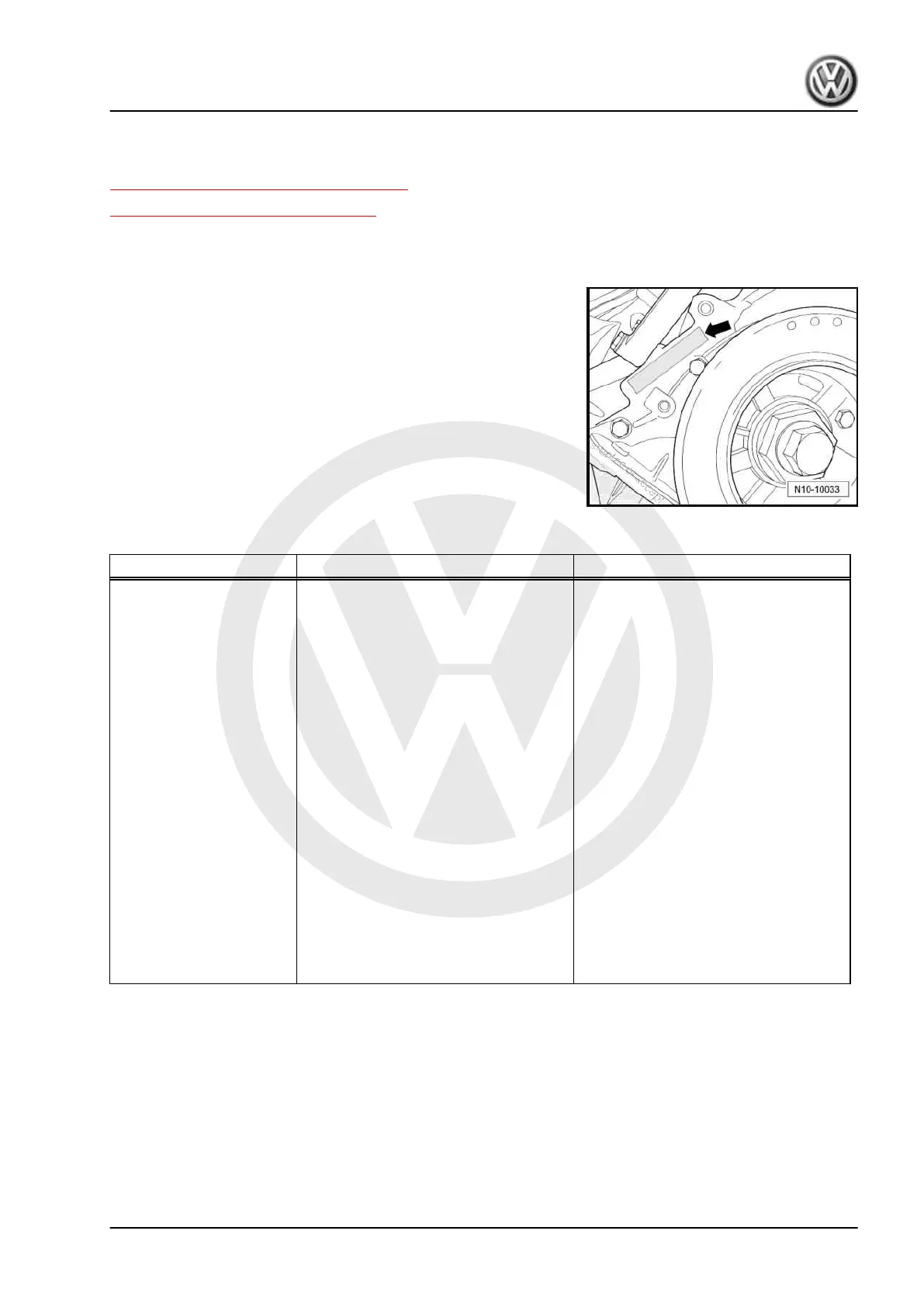

2.1 Engine number/engine data
Engine number
The engine number (“engine code” and “serial number”) is located
next to the vibration damper -arrow- on the cylinder block.
There is also a sticker on the rear of the cylinder head cover
showing the “engine code” and “serial number”.
The first 3 digits denote the mechanical design of the engine and
are stamped on the engine. The fourth digit shows the engine
output and torque and varies according to engine control unit. The
four-digit engine code can be found on the identification plate and
on the vehicle data sticker. It can also be read from the engine
control unit.
Fitting locations of vehicle data sticker ⇒ Maintenance ; Booklet ;
Vehicle data sticker .
Engine data
Codes CGRA CMTA
Manufactured 15.2010 ► 34.2010 ►
Displacement cm³ 3597 3597
Power kW at rpm 206 / 6200 183 / 5700
Torque
Nm at
rpm
360 / 2900 to 4000 360 / 3000
Bore ∅ mm 89.0 89.0
Stroke mm 96.4 96.4
Cylinder angle 10.6° 10.6°
Compression ratio 11.4 11.4
Valves per cylinder 4 4
RON
98 unleaded
1)
98 unleaded
1)
Injection, ignition Motronic MED 17 Motronic MED 17
Knock control 2 knock sensors 2 knock sensors
Lambda regulation 4 lambda probes 4 lambda probes
Catalytic converter Yes Yes
Leakage diagnosis sys‐
tem
Vehicles for USA/Canada only no
Exhaust gas recirculation no no
Thermal management Yes no
1) At least 95 RON, though with reduced output
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
2. Identification 3
