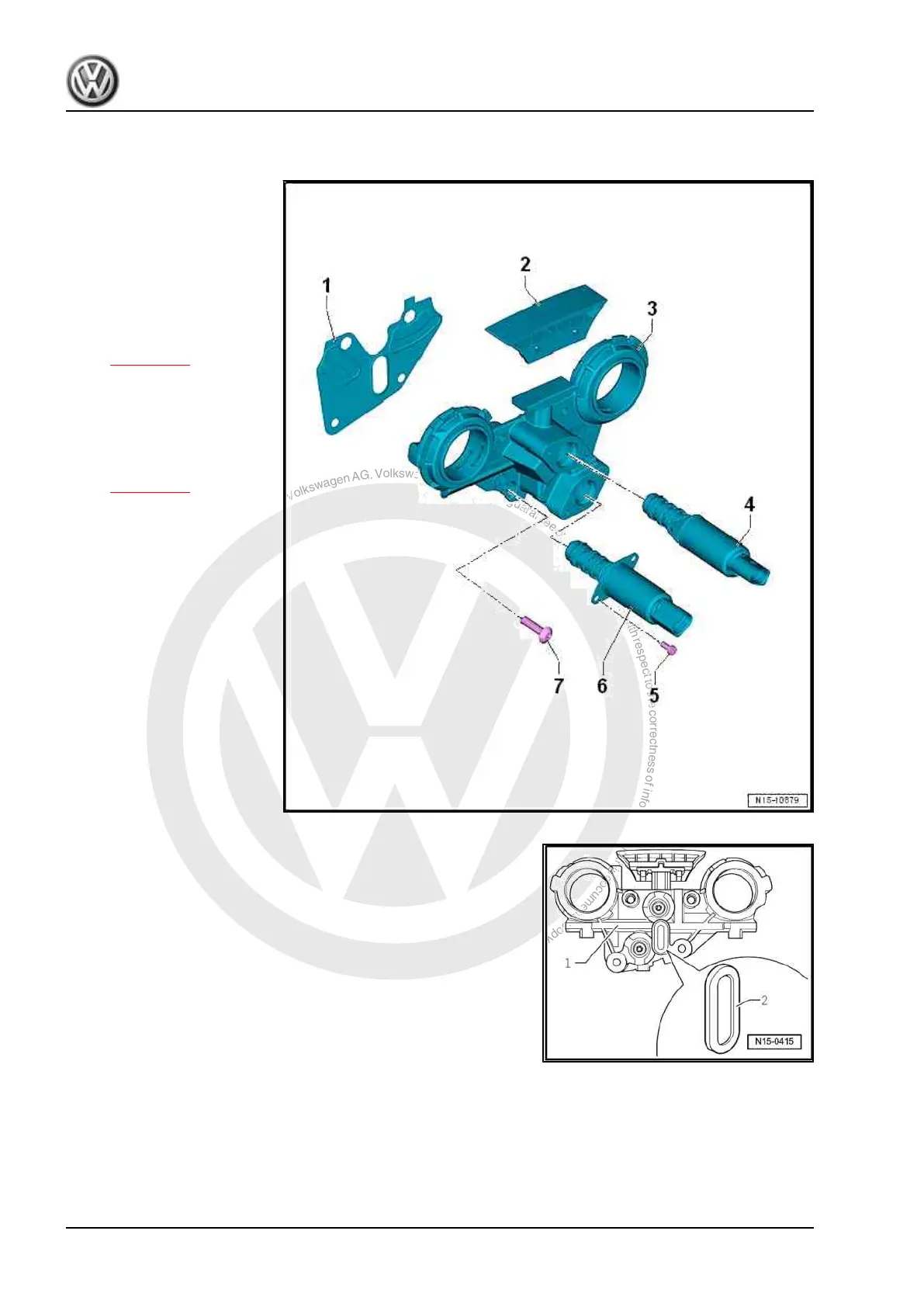

3.3 Assembly overview - timing housing
1 - Seal
❑ Renew
2 - Guide rail: is clipped into
valve timing housing
3 - Valve timing housing
4 - Inlet camshaft control valve
1 - N205-
❑ Removing and installing
⇒ page 103
5 - Bolt
❑ 3.8 Nm
6 - Exhaust camshaft control
valve 1 - N318-
❑ Removing and installing
⇒ page 103
7 - 8 Nm + turn 180° further
❑ Renew
Checking valve timing housing strainer for soiling
– Unclip strainer -2- from back of valve timing housing -1- and
remove any dirt.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
102 Rep. gr.15 - Cylinder head, valve gear
