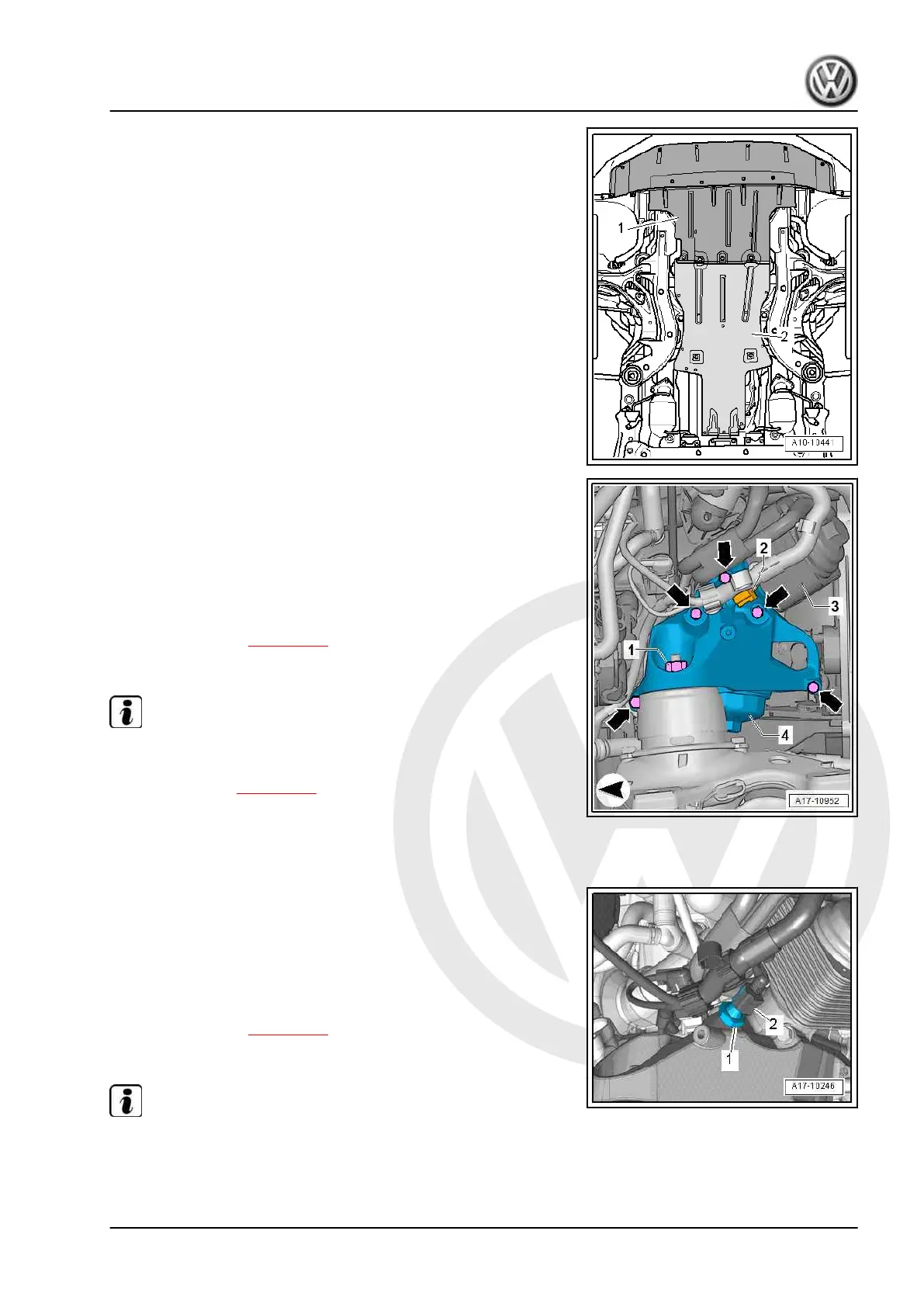

– Remove noise insulation at front -1- and rear -2-.
– Place used oil collection and extraction unit - VAS 6622 A-
under engine.
– Unscrew cap -4- for oil filter housing.
– Unscrew bolts -lower arrows-, and remove left engine support
with oil filter housing. Do not damage wire for engine speed
sender - G28- while doing so.
Installing
• Specified torque ⇒ page 128 .
Install in reverse order of removal, observing the following.
Note
Renew the seals and gaskets.
– Check oil level ⇒ page 118 .
2.4 Removing and installing oil pressure
switch - F1-
Removing
Proceed as follows:
– Separate electrical connector -2- on oil pressure switch - F1- .
– Unscrew oil pressure switch - F1- -item 1-.
Installing
• Specified torque ⇒ page 128 .
Installation is carried out in the reverse order; note the following.
Note
Renew the seal.
2.5 Checking oil pressure and oil pressure switch
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
2. Oil filter, oil pressure switch 131
