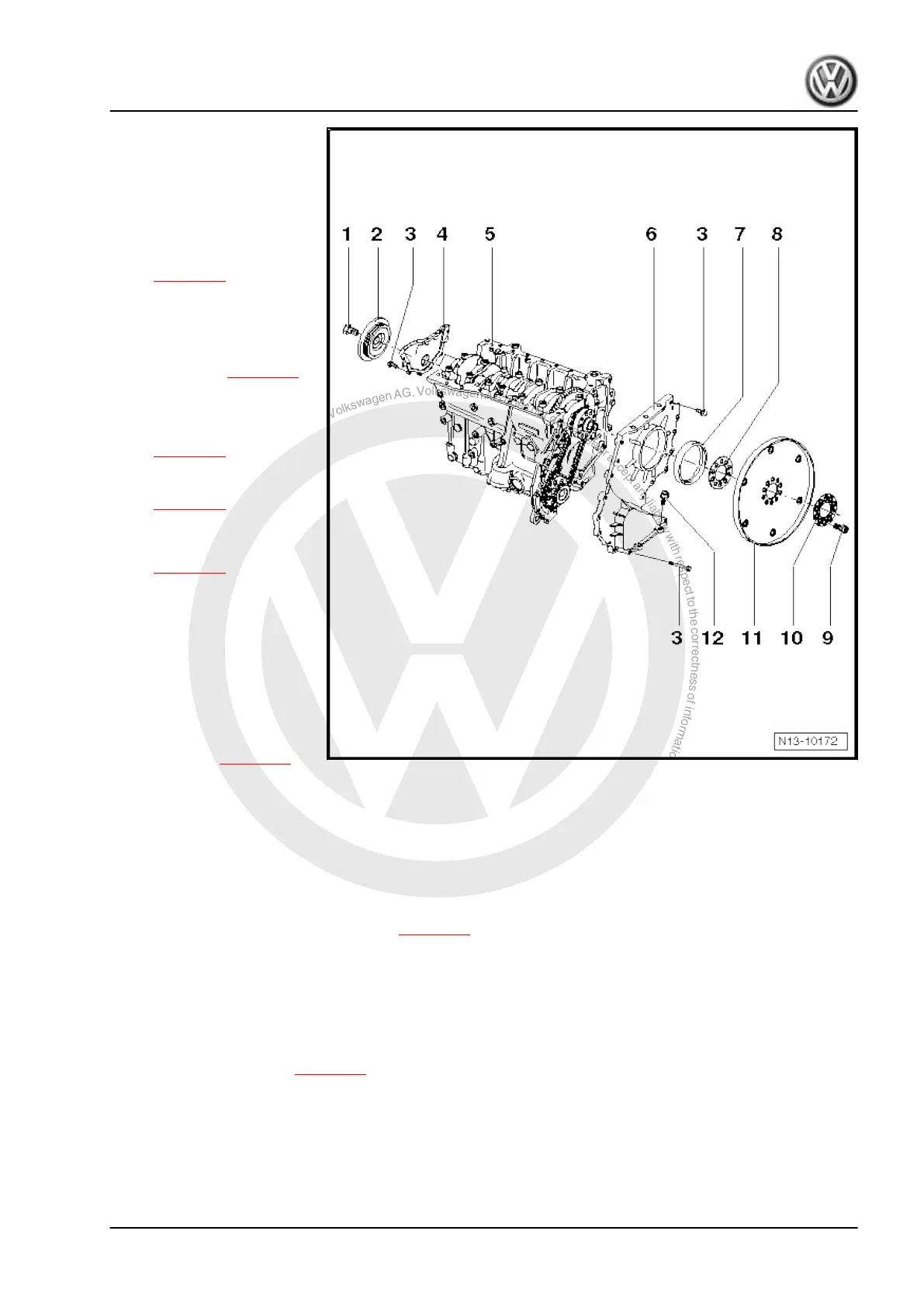

1 - Vibration damper securing
bolts
❑ Qty. 7
❑ 60 Nm + turn 180° fur‐
ther
2 - Vibration damper
❑ Removing and installing
⇒ page 35
3 - 10 Nm
4 - Sealing flange
❑ With seal
❑ Renewing ⇒ page 43
5 - Cylinder block
❑ Assembly overview -
crankshaft
⇒ page 49 .
❑ Assembly overview -
pistons and conrods
⇒ page 56 .
6 - Sealing flange
❑ Removing and installing
⇒ page 40
7 - Seal
❑ Remove using extractor
hook - T20143/2-
❑ Do not oil or grease the
oil seal sealing lip
❑ Before installing, re‐
move oil residue from
crankshaft journal using
a clean cloth.
❑ Installing ⇒ page 38
8 - Shim
9 - 60 Nm + turn 90° further
❑ Renew
❑ To loosen or tighten, use counterhold - T10044- (with 5 mm spacers) or counterhold - T10069- .
10 - Washer
11 - Drive plate
❑ Removing and installing drive plate ⇒ page 45
12 - 23 Nm
2.2 Assembly overview - timing chain cov‐
ers
Mechanical vacuum pump ⇒ page 92
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
2. Sealing flanges and drive plate 37
