Note
♦
Cooling system is pressurized when engine is warm. If nec‐
essary, release pressure before carrying out repairs.
♦
Hose connections are secured with spring-type clips. In case
of repair, only use spring-type clips.
♦
Spring-type clip pliers - VAS 6340- are recommended for in‐
stallation of spring-type clips.
♦

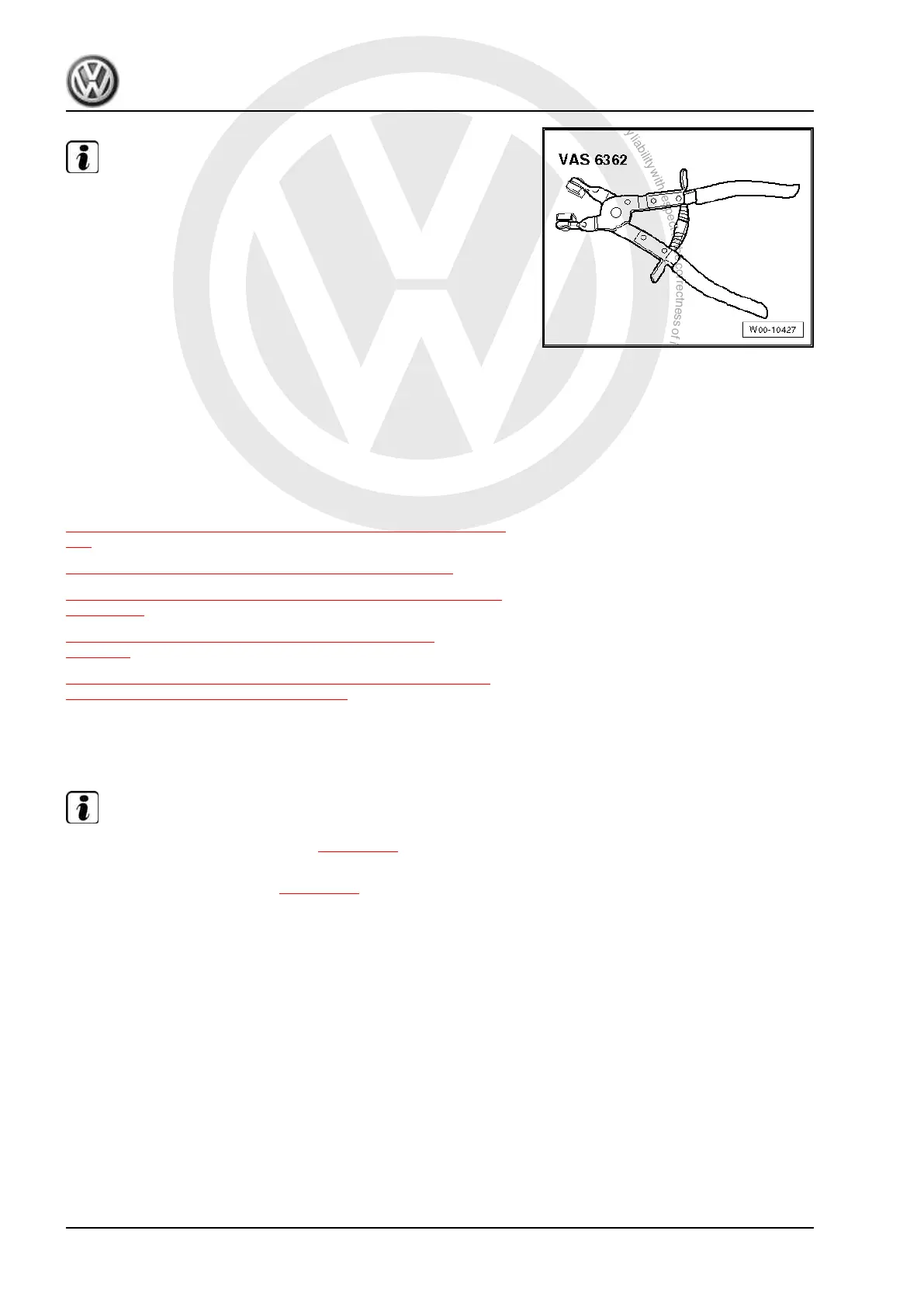

Space saving hose clip pliers - VAS 6362- are recommended
for installation of space saving hose clips.
♦
When installing coolant hoses, position them so they are free
of stress and do not come into contact with other components.
♦
The arrows on the coolant pipes and on the ends of the hoses
must be aligned with each other.
♦
Renew gaskets and seals.
Test for leaks in cooling system using cooling system tester -
V.A.G 1274- and adapters - V.A.G 1274/8- and - V.A.G 1274/9- .
⇒ “3.1 Assembly overview - coolant pump and thermostat”, page
146 .
⇒ “3.2 Removing and installing coolant pump”, page 148 .
⇒ “3.3 Removing and installing coolant circulation pump 2 V178
”, page 149
⇒ “3.4 Removing and installing, checking thermostat”,
page 150
⇒ “3.5 Removing and installing temperature sender for engine
temperature regulation G694 ”, page 151 .
3.1 Assembly overview - coolant pump and
thermostat
Note
♦
Coolant hose schematic diagram ⇒ page 135
♦
Removing and installing temperature sender for engine tem‐
perature regulation - G694- ⇒ page 151 .
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
146 Rep. gr.19 - Cooling
