17 - Inlet camshaft adjuster
❑ Identification: 24E
❑ With sender wheel for Hall sender - G40-
❑ Install camshaft adjuster with camshaft timing chain ⇒ page 64 .
18 - Spark plug, 18 Nm
❑ Remove and install with spark plug socket and extension - 3122B-
❑ Type and electrode gap ⇒ page 272 .
19 - Valve timing housing
❑ For camshaft adjustment.
❑ Removing and installing ⇒ page 105
1.3 Safety precautions
To prevent injuries to persons and/or damage to the injection and
ignition system, the following must be observed:
♦ Switch off ignition before connecting or disconnecting injection
and ignition system wiring as well as test instrument cables.
♦ Do not touch or disconnect ignition cables when the engine is
running or being turned at starter speed.
Note the following if testers and measuring instruments have to
be used during a road test:
♦ Test and measuring instruments must always be secured to
rear seat and operated by a second person from this location.
If test and measuring instruments are operated from front pas‐
senger seat and the vehicle is involved in an accident, there is a
possibility that the person sitting in this seat may receive serious
injuries when the airbag is triggered.

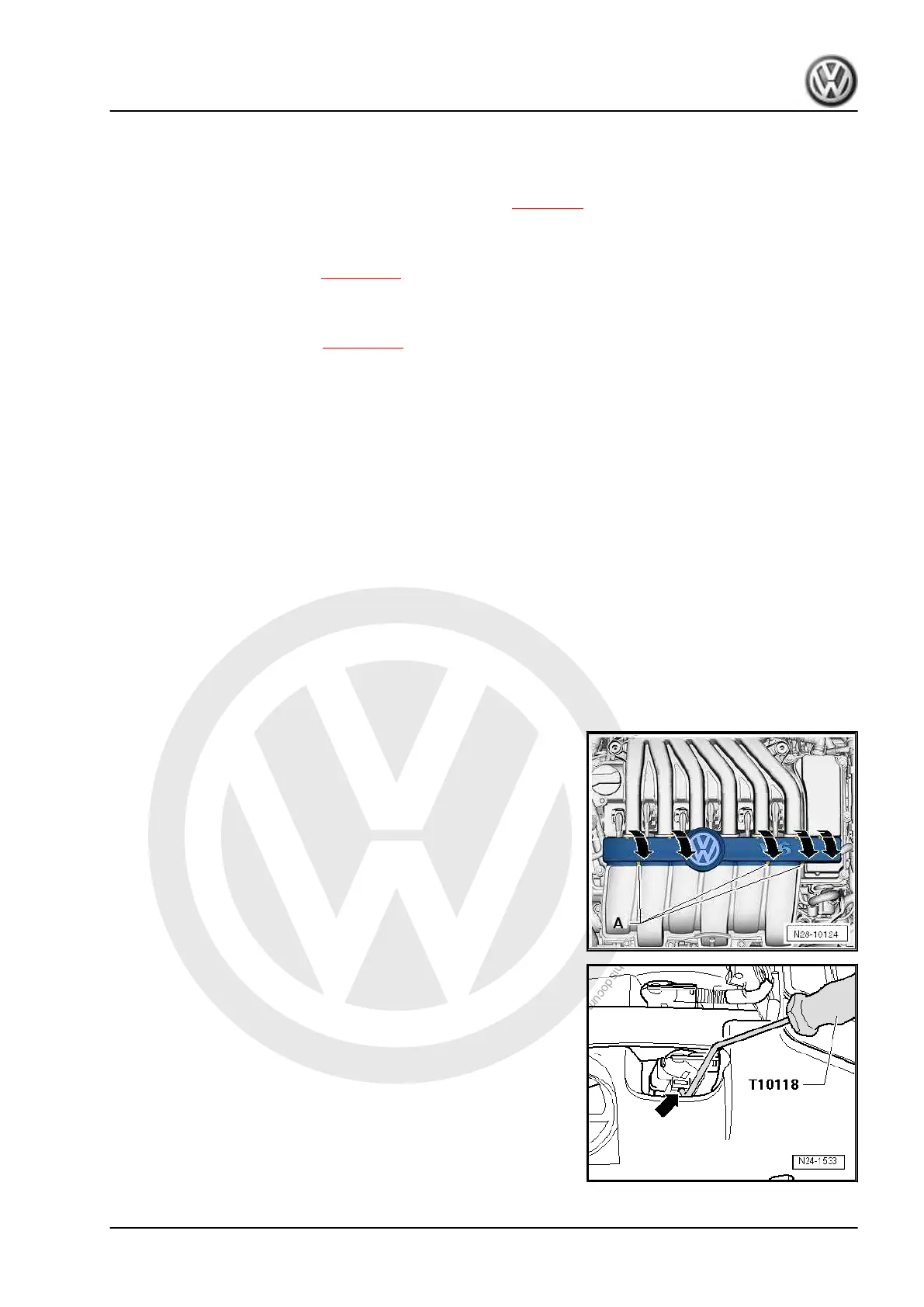

♦ If the engine is to be turned at starter speed without starting:
– Unclip cover rail for ignition cable harness -arrows- and re‐
move forwards from retaining lugs -A-.
– Pull connectors off ignition coils 1 to 6 using assembly tool -
T10118- .
– To do this, apply assembly tool - T10118- to locking button
-arrow- and carefully pull connector off.
– Pull fuse for fuel pump out of fuse holder ⇒ Current flow dia‐
grams, Electrical fault finding and Fitting locations.
