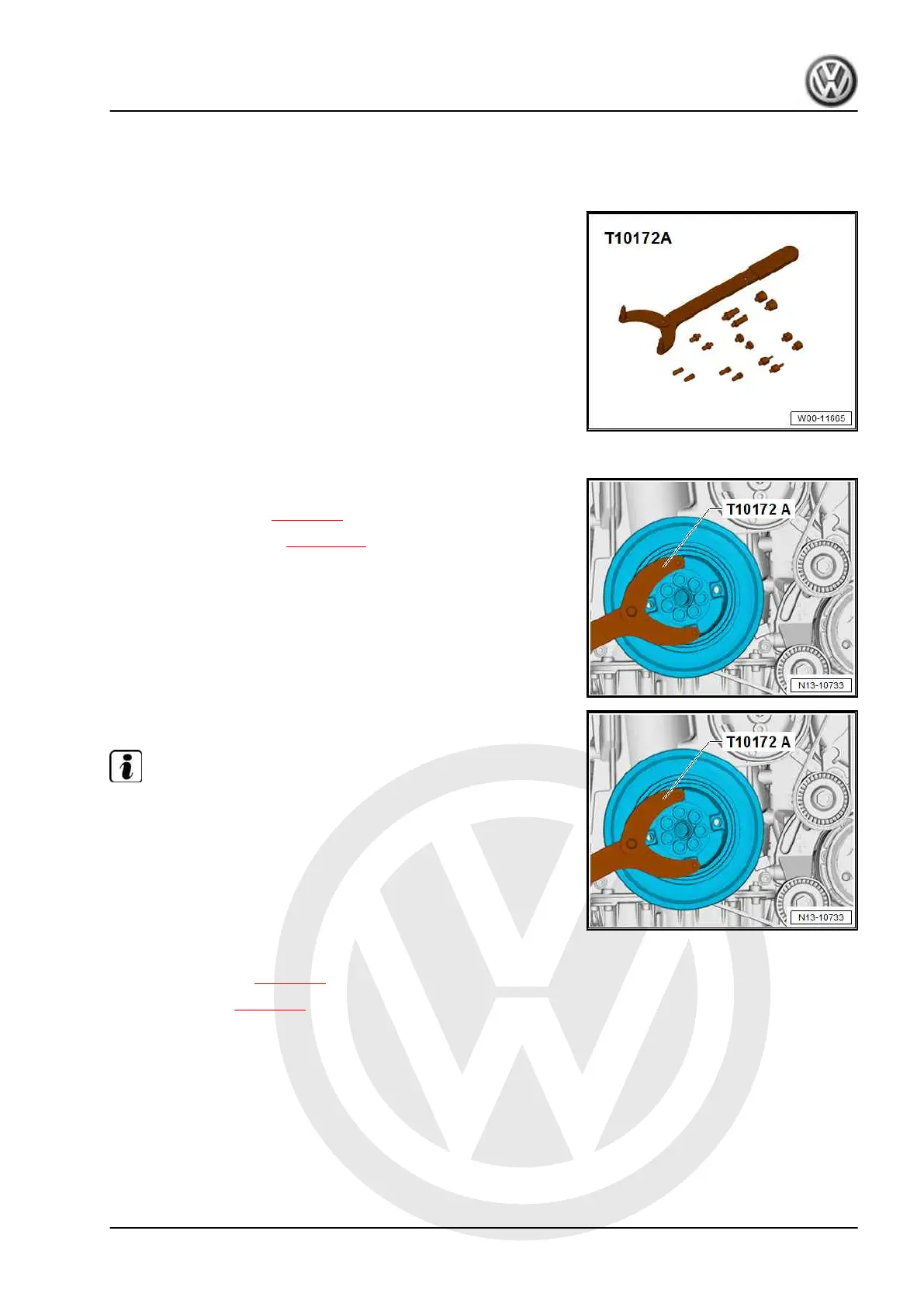

1.4 Removing and installing vibration damp‐
er
Special tools and workshop equipment required
♦ Counter-hold tool - T10172A-
♦ Screw-in bolts - T10172A/1-
Removing:
– Remove poly V-belt ⇒ page 34 .
– Remove radiator cowl ⇒ page 170 .
– Lock vibration damper using counterhold - T10172A- and
adapter - T10172A/1- .
– Unscrew securing bolts and remove vibration damper from
crankshaft journal.
Installing:
Note
Check rubber joint between inner and outer ring of vibration
damper for cracks and separation. If rubber joint is damaged, re‐
new vibration damper.
– Renew securing bolt for vibration damper.
– Fit vibration damper and tighten bolts by hand.
– Lock vibration damper using counterhold - T10172A- .
– Tighten securing bolts.
– Install poly V-belt ⇒ page 34 .
Specified torques ⇒ page 32
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
1. Dismantling and assembling engine 35
