1 - To top of expansion tank
2 - To connection on cylinder
head.
3 - Electric coolant pump
4 - From heat exchanger
5 - To heat exchanger
6 - To top of radiator
7 - Front coolant pipe
8 - 8 Nm
9 - From bottom of radiator.
10 - Radiator outlet coolant
temperature sender - G83-
❑ Before removing, re‐
lease pressure in cool‐
ing system if necessary.
11 - To top of expansion tank
12 - From bottom of expansion
tank

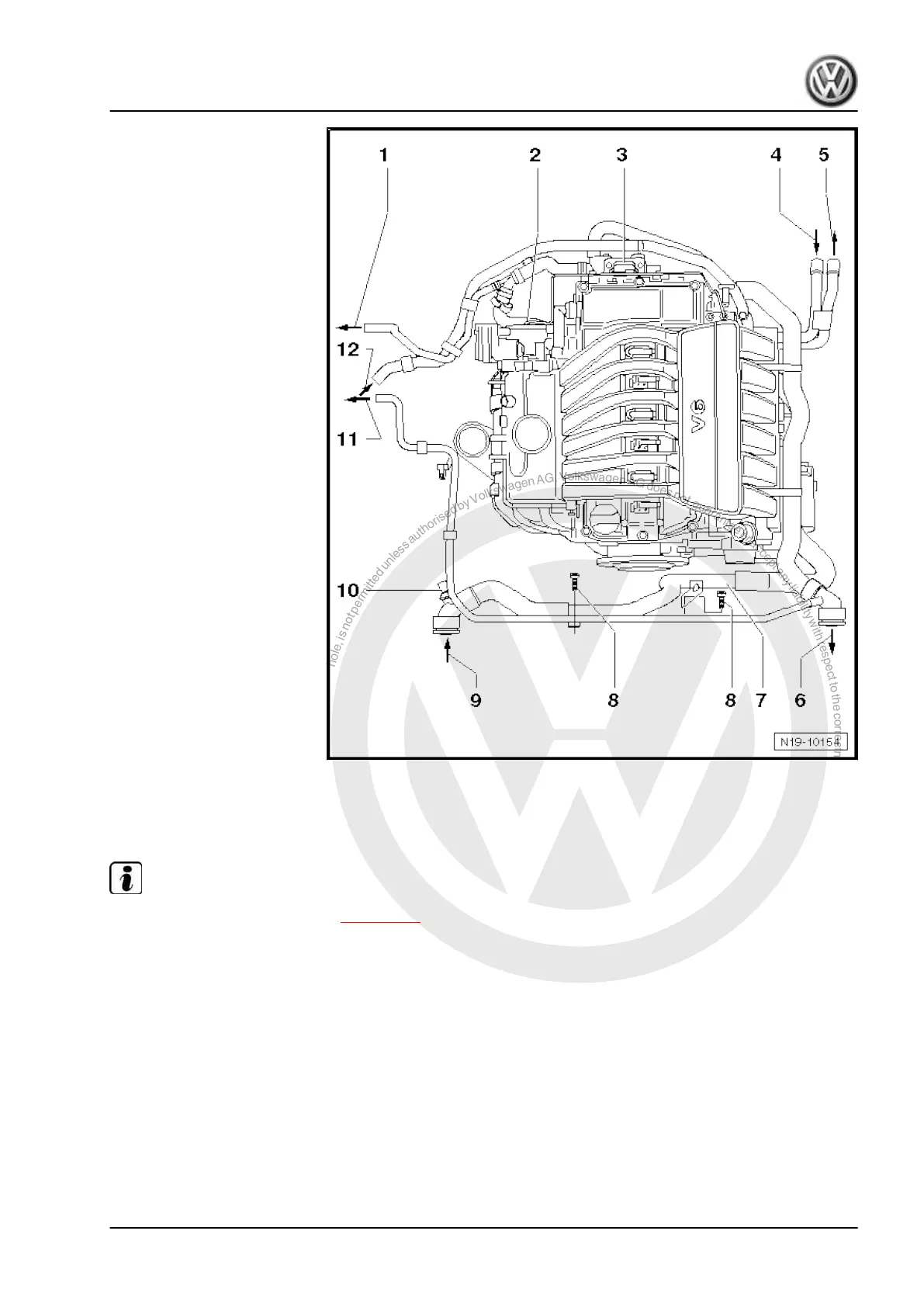

2.3 Assembly overview - cooling system,
engine side, left
Note
Coolant hose schematic diagram ⇒ page 142
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
2. Cooling system (engine code CMTA) 143
