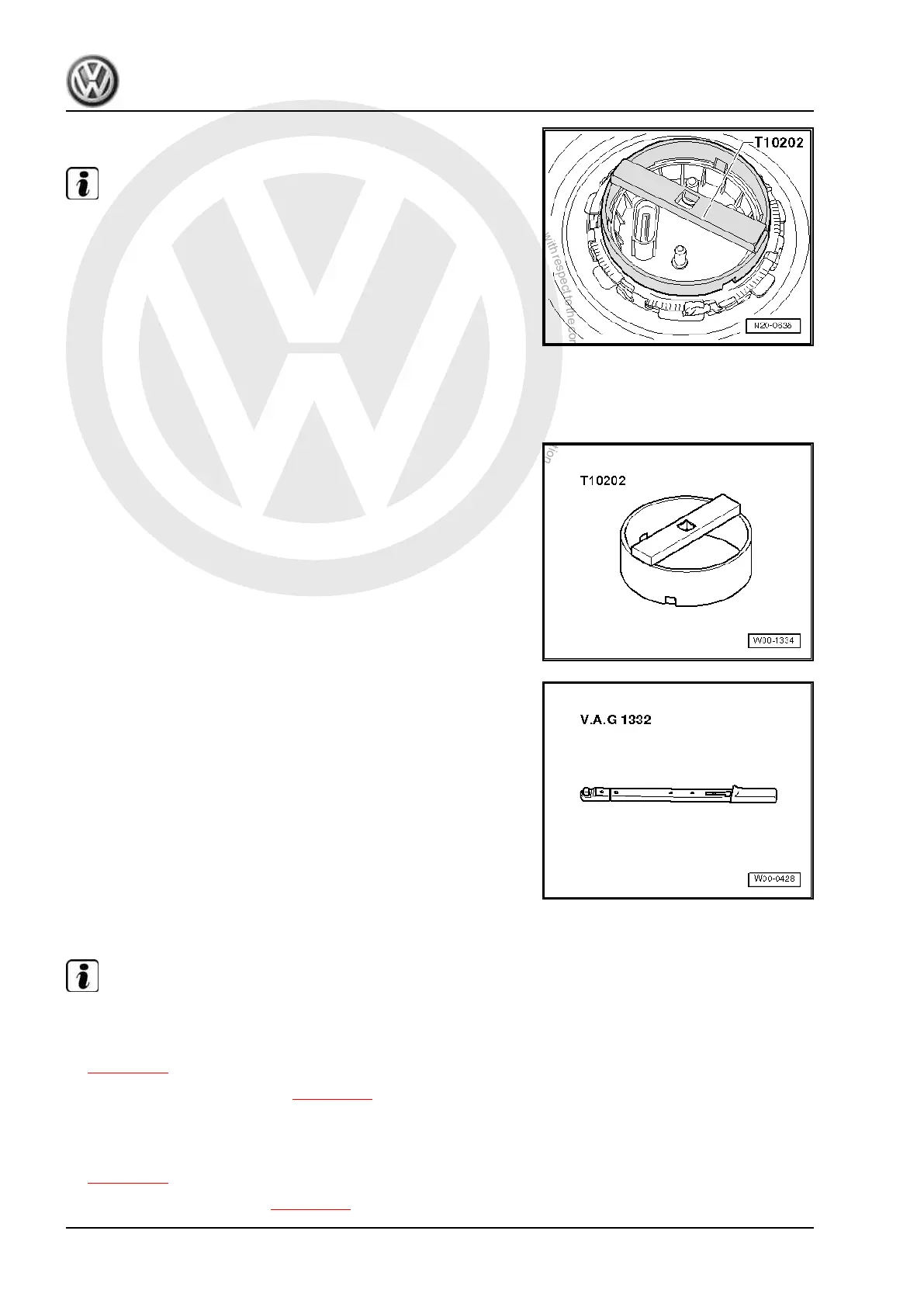

– Use special socket - T10202- to tighten locking ring to 145 Nm.
Note
Ensure that connectors and fuel hose connections are fitted se‐
curely.
2.6 Removing and installing fuel gauge
sender 2 - G169- and suction-jet pump
Special tools and workshop equipment required
♦ Special wrench - T10202-
♦ Torque wrench - V.A.G 1332-
Removing:
Note
Attach cable ties in all the same places when installing.
– Note safety precautions before starting installation work
⇒ page 173 .
– Observe rules for cleanliness ⇒ page 175 .
– Remove rear bench seat ⇒ General body repairs, interior;
Rep. gr. 72 ; Removing and installing bench seat .
– Remove flange with fuel filter on left side of fuel tank
⇒ page 179 .
– Draw off fuel, if necessary ⇒ page 181
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
184 Rep. gr.20 - Fuel supply system
