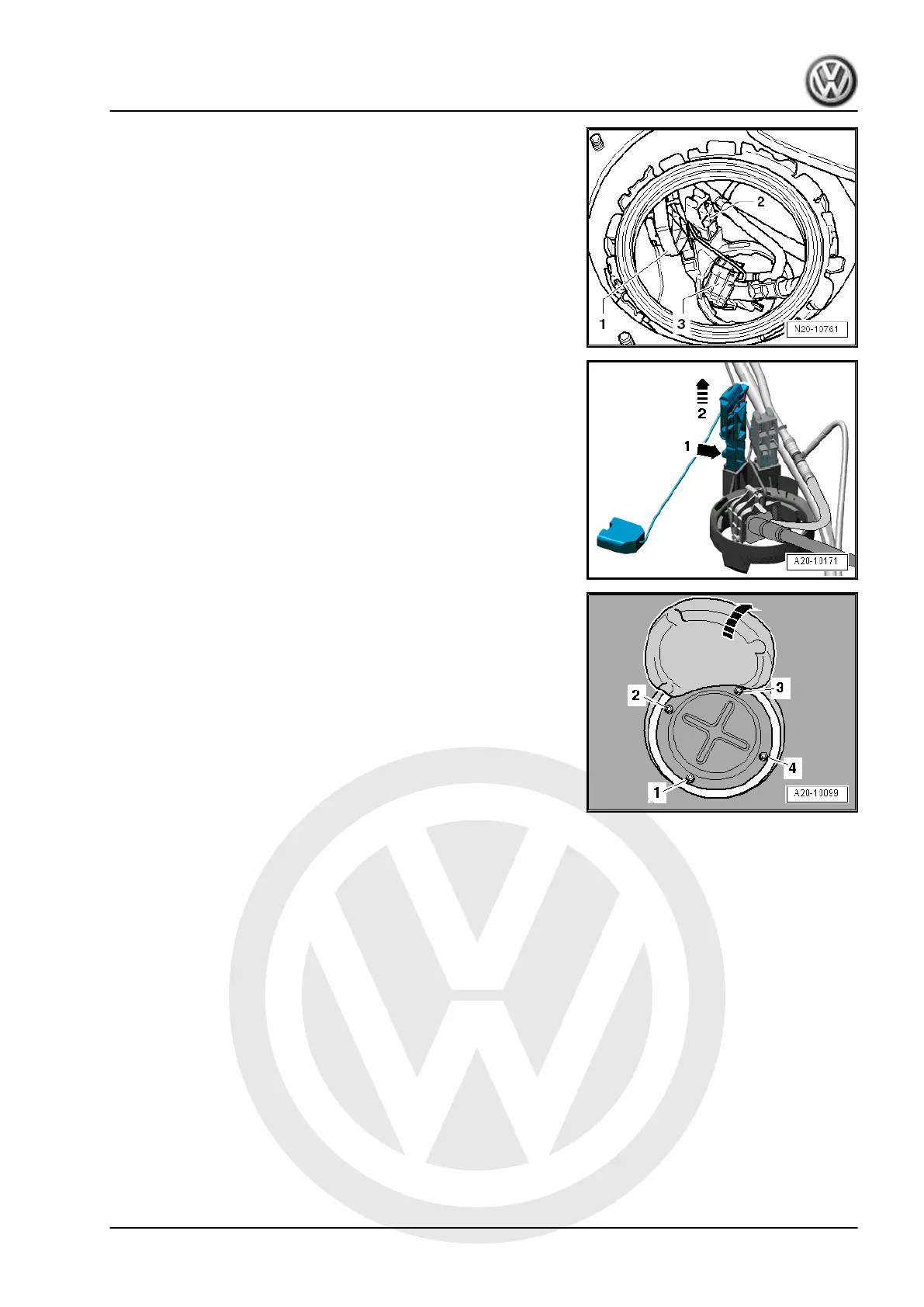

– Unclip fuel gauge sender 2 - G169- -1- and pull out of fuel tank.
– To do this, press locking lug -1-.
Proceed as follows if the suction-jet pumps are to be removed:
– Fold right-hand carpet cut-out to the side.
– Remove securing nuts -1 to 4- of flange cover.
– Remove flange cover.
