26 – Exhaust system
1 Exhaust manifold
⇒ “1.1 Assembly overview - exhaust manifold”, page 253 .
⇒ “1.2 Removing and installing exhaust manifold”, page 253 .

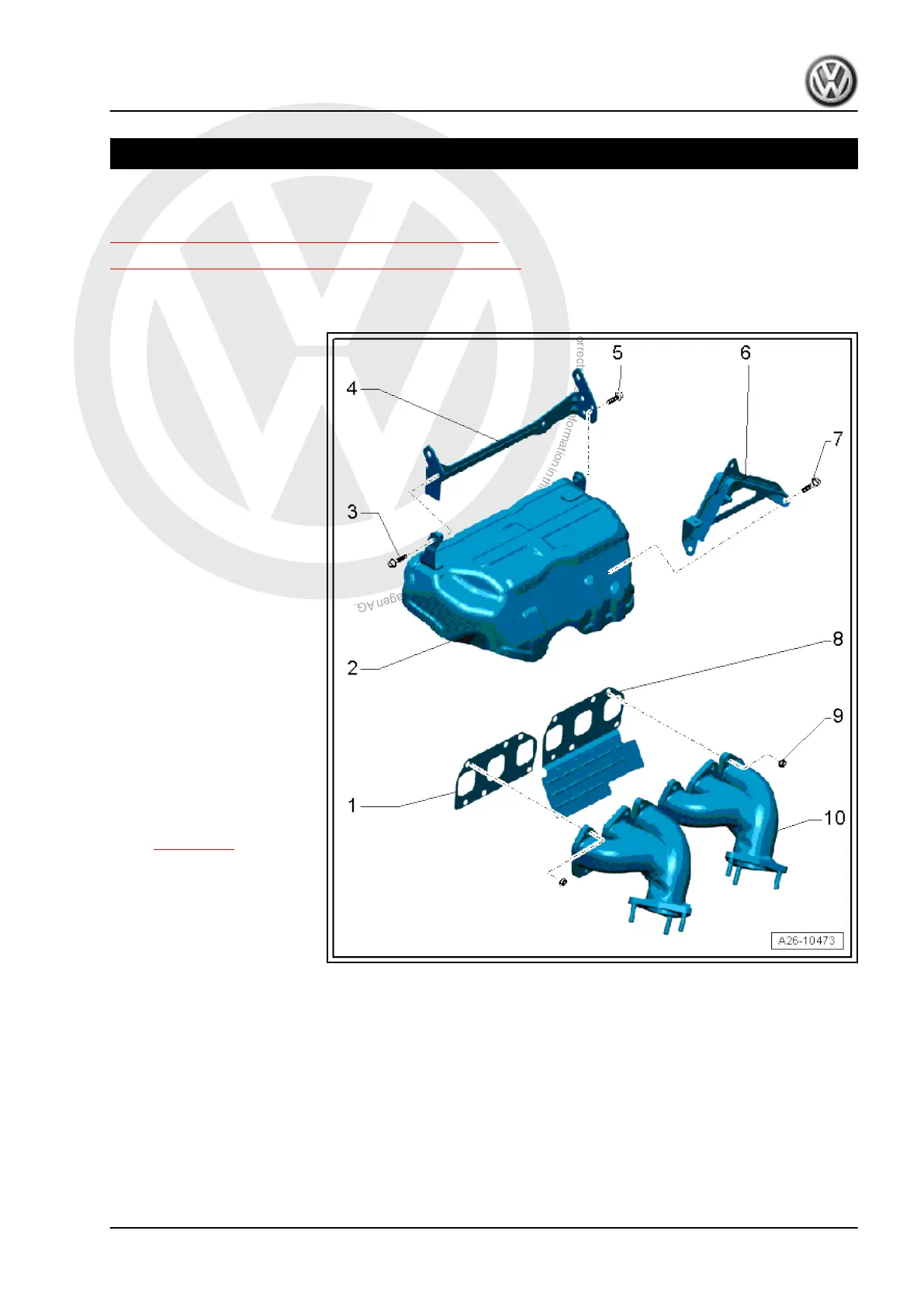

1.1 Assembly overview - exhaust manifold
1 - Seal
❑ Renew
2 - Heat shield
3 - Bolt
❑ 20 Nm
4 - Holder
5 - Bolt
❑ 20 Nm
6 - Holder
7 - Bolt
❑ 20 Nm
8 - Seal
❑ With heat shield
❑ Renew
9 - Nut
❑ Coat studs with high
temperature paste - G
052 112 A3- .
❑ Renew
❑ 23 Nm
10 - Exhaust manifold
❑ Removing and installing
⇒ page 253
1.2 Removing and installing exhaust mani‐
fold
Special tools and workshop equipment required
♦ High-temperature paste - G 052 112 A3-
Removing:
Proceed as follows:
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
1. Exhaust manifold 253
