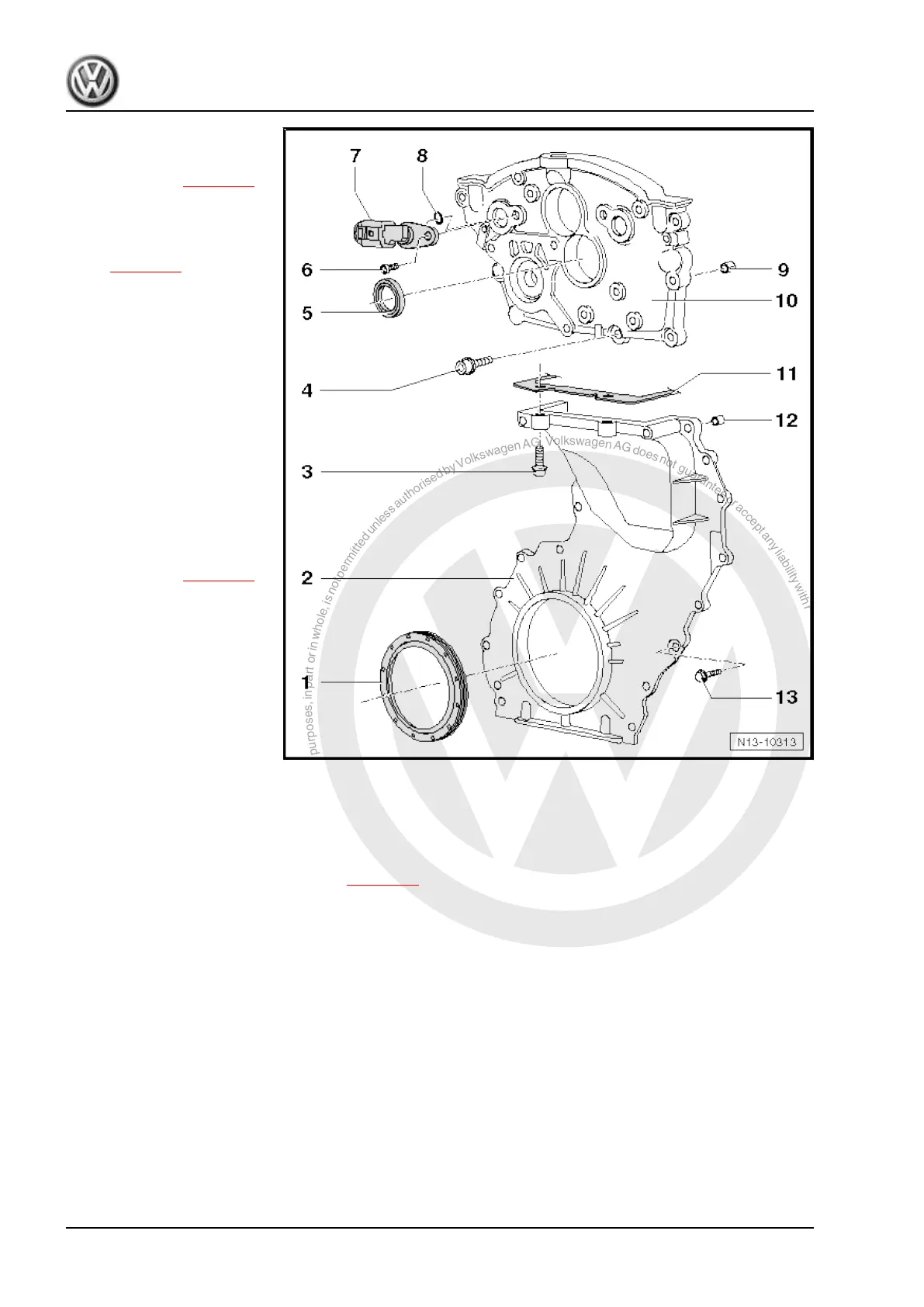

1 - Seal
❑ For crankshaft
❑ Renewing ⇒ page 38
2 - Sealing flange
❑ Gearbox side
❑ Removing and installing
⇒ page 40
3 - Bolt
❑ 23 Nm
4 - Bolt
❑ Tighten in stages and in
diagonal sequence.
❑ 8 Nm
5 - Seal
❑ Qty. 2
❑ For camshaft control
valve 1 - N205- and ex‐
haust camshaft control
valve 1 - N318-
❑ Renew if leaking or
damaged.
❑ Renewing ⇒ page 94
6 - Bolt
❑ 8 Nm
7 - Hall sender
❑ Hall sender - G40- and
Hall sender 2 - G163-
8 - O-ring
❑ Qty. 2
❑ Renew
9 - Dowel pins
❑ Qty. 2
10 - Cover for timing chain
11 - Cylinder head gasket
❑ Clean drillings and fill with sealant ⇒ page 41 .
12 - Dowel pins
13 - Bolt
❑ 10 Nm
2.3 Removing and installing seal on gear‐
box side
Special tools and workshop equipment required
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
38 Rep. gr.13 - Crankshaft group
