2 Cooling system (engine code CMTA)
⇒ “2.1 Coolant hose connection diagram”, page 142
⇒ “2.2 Assembly overview - cooling system, engine side, front and
rear”, page 142
⇒ “2.3 Assembly overview - cooling system, engine side, left”,
page 143

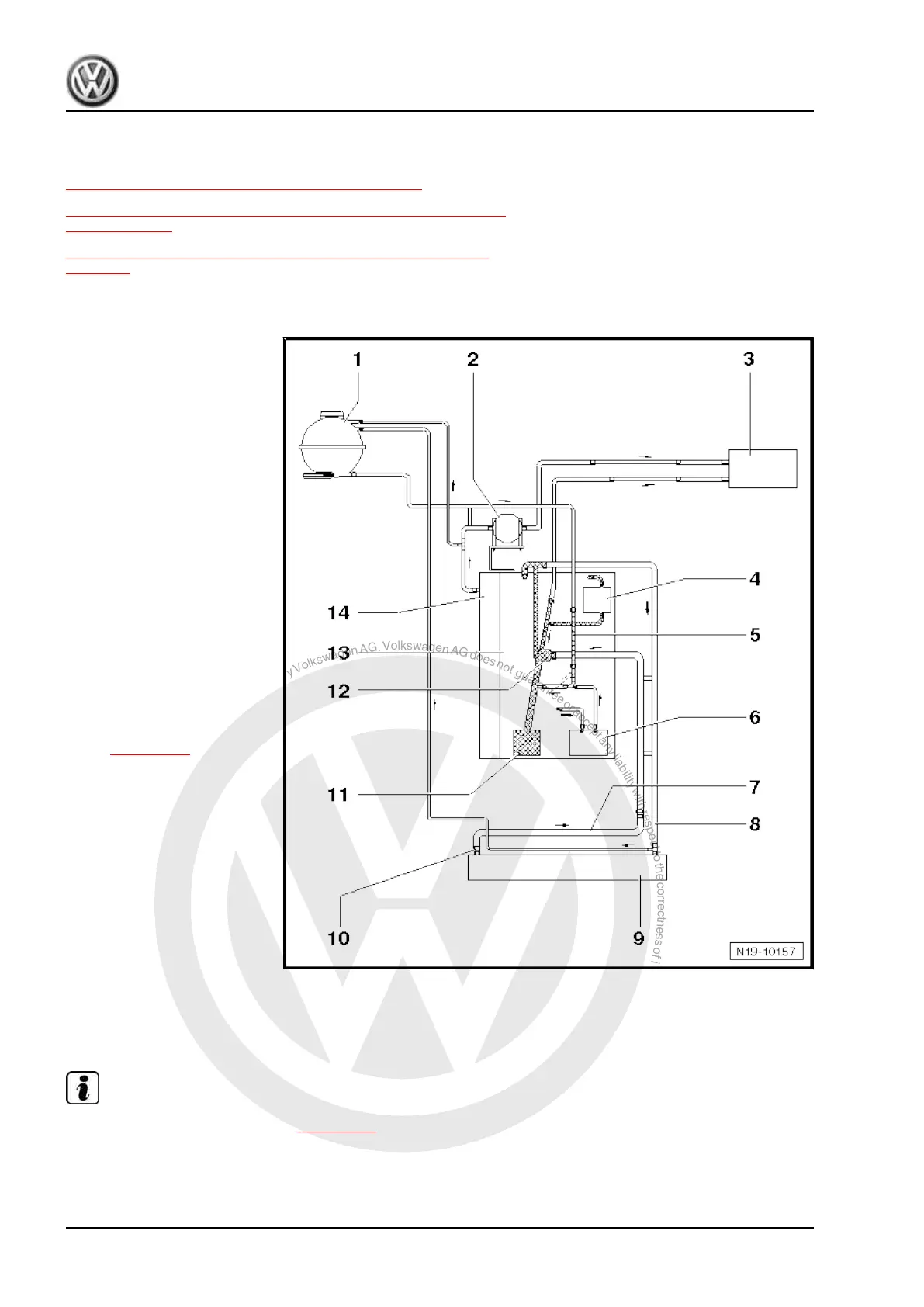

2.1 Coolant hose connection diagram
1 - Expansion tank
2 - Electric coolant pump
3 - Heat exchanger for heater
4 - Engine oil cooler
❑ For engine oil
5 - Coolant pipe
❑ Bolted to underside of
intake manifold.
6 - Alternator
7 - Front coolant pipe
8 - Upper coolant hose
9 - Radiator/cooler
10 - Lower coolant hose
11 - Coolant pump
12 - Thermostat
❑ Removing and instal‐
ling, checking
⇒ page 150
13 - Cylinder block
14 - Cylinder head
2.2 Assembly overview - cooling system,
engine side, front and rear
Note
Coolant hose schematic diagram ⇒ page 142
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
142 Rep. gr.19 - Cooling
