2 Parts of fuel supply system
Caution
Observe the following during all assembly work, particularly in
the engine compartment due to the restricted space:
♦ Route lines of any kind and cables so that original routing
is restored.
♦ Ensure that there is sufficient clearance to all moving or
hot components.
Note
♦
Hose connections are secured with either spring-type or
clamp-type clips.
♦
Fuel hoses on engine must be secured with spring-type clips
only. The use of crimp-type or screw-type clips is not permis‐
sible.
♦

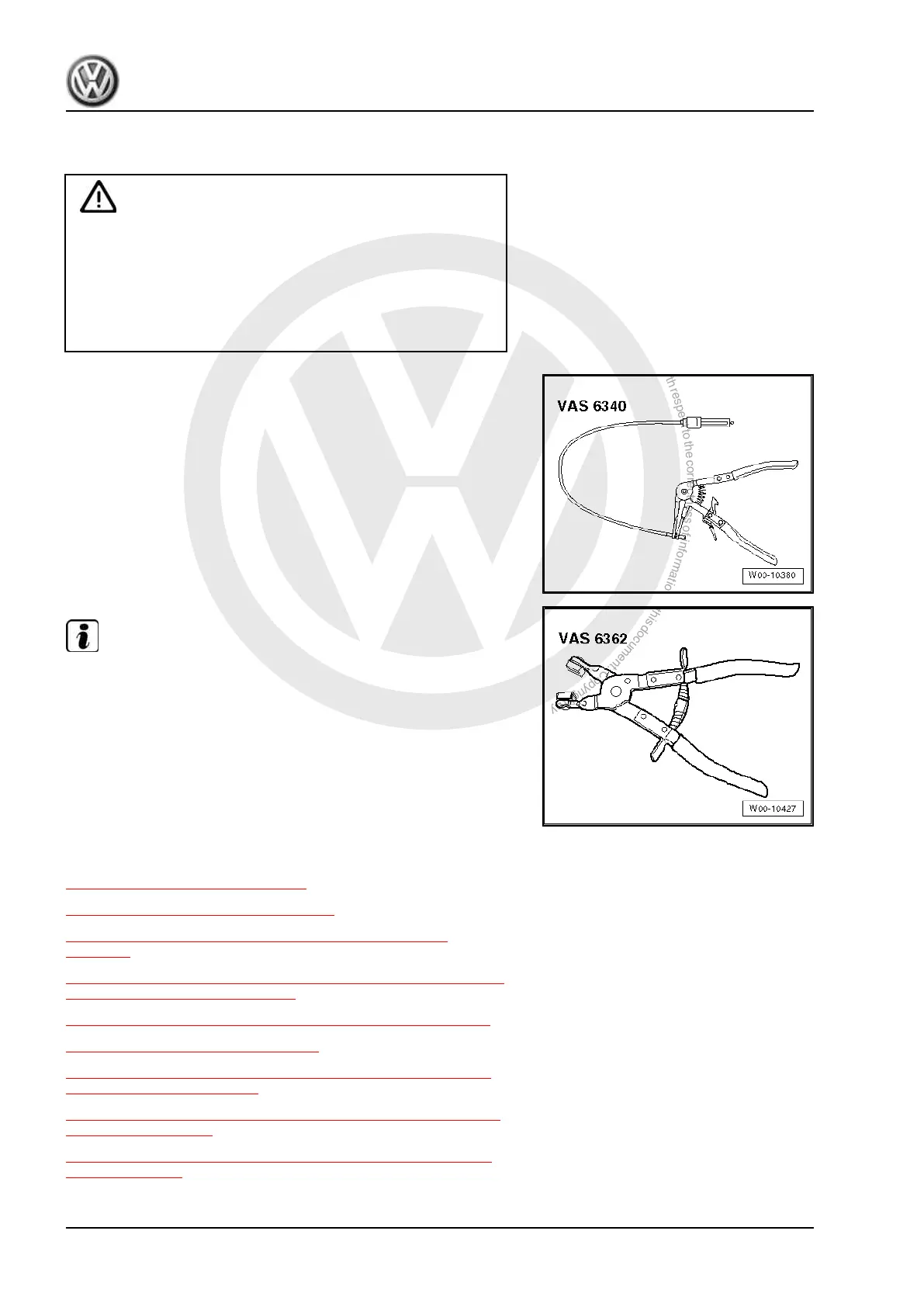

Spring-type clip pliers - VAS 6340- or spring-type clip pliers -
VAS 5024 A- are recommended for installation of spring-type
clips.
♦
Space saving hose clip pliers - VAS 6362- are recommended
for installation of space saving hose clips.
⇒ “1 Safety precautions”, page 173 .
⇒ “2.1 Rules for cleanliness”, page 175 .
⇒ “2.2 Assembly overview - fuel tank with attachments”,
page 175 .
⇒ “2.3 Assembly overview - fuel delivery unit, fuel gauge sender
and suction jet pumps”, page 177 .
⇒ “2.4 Removing, installing and renewing fuel filter”, page 179 .
⇒ “2.5 Emptying fuel tank”, page 181 .
⇒ “2.6 Removing and installing fuel gauge sender 2 G169 and
suction-jet pump”, page 184 .
⇒ “2.7 Removing and installing fuel delivery unit and fuel gauge
sender G ”, page 188 .
⇒ “2.8 Removing and installing fuel tank with attached compo‐
nents”, page 191 .
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
174 Rep. gr.20 - Fuel supply system
