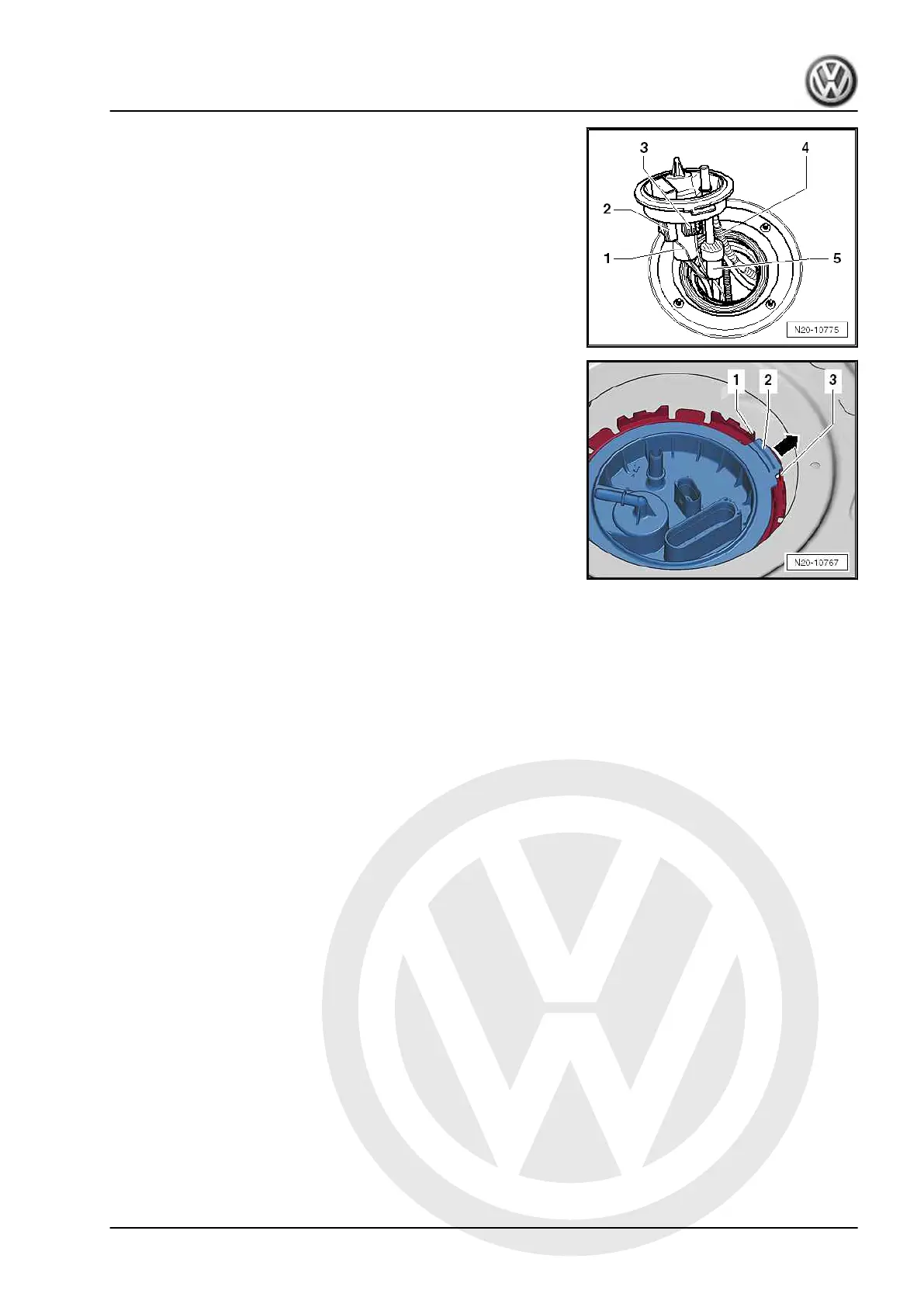

Individual flange parts, right side
1 - Earth cable
2 - Connector for fuel pump
3 - Connector for fuel gauge sender - G-
4 - From fuel filter.
5 - Pressure limiting valve
Installation position of flange on fuel tank
– Insert flange in direction of travel -arrow-.
Lug -2- must stay between tabs -1- and -3- of fuel tank.
2.3 Assembly overview - fuel delivery unit, fuel gauge sender and suction jet
pumps
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
2. Parts of fuel supply system 177
