5 Activated charcoal filter system
⇒ “5.1 Assembly overview - activated charcoal filter system”, page
203 .
⇒ “5.2 Checking fuel system for leaks”, page 203 .

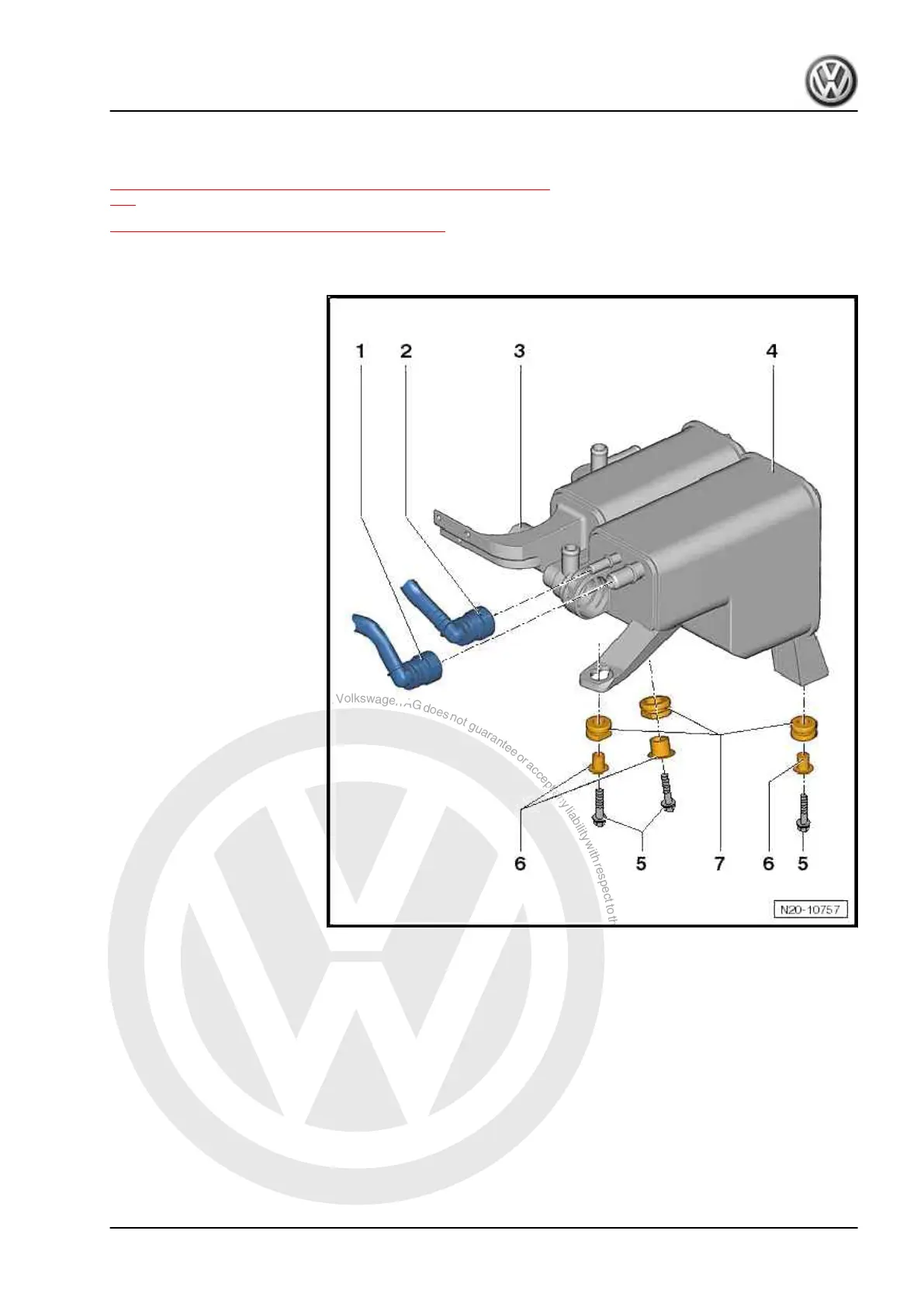

5.1 Assembly overview - activated charcoal filter system
1 - Breather line
❑ From fuel tank
❑ Ensure firm seating
2 - Breather line
❑ To activated charcoal fil‐
ter solenoid valve 1 -
N80-
❑ Ensure firm seating
3 - Breather connection
4 - Activated charcoal filter
❑ Location: in rear right
wheel housing.
5 - 9 Nm
6 - Spacer sleeve
7 - Rubber mounting
5.2 Checking fuel system for leaks
Special tools and workshop equipment required
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
5. Activated charcoal filter system 203
