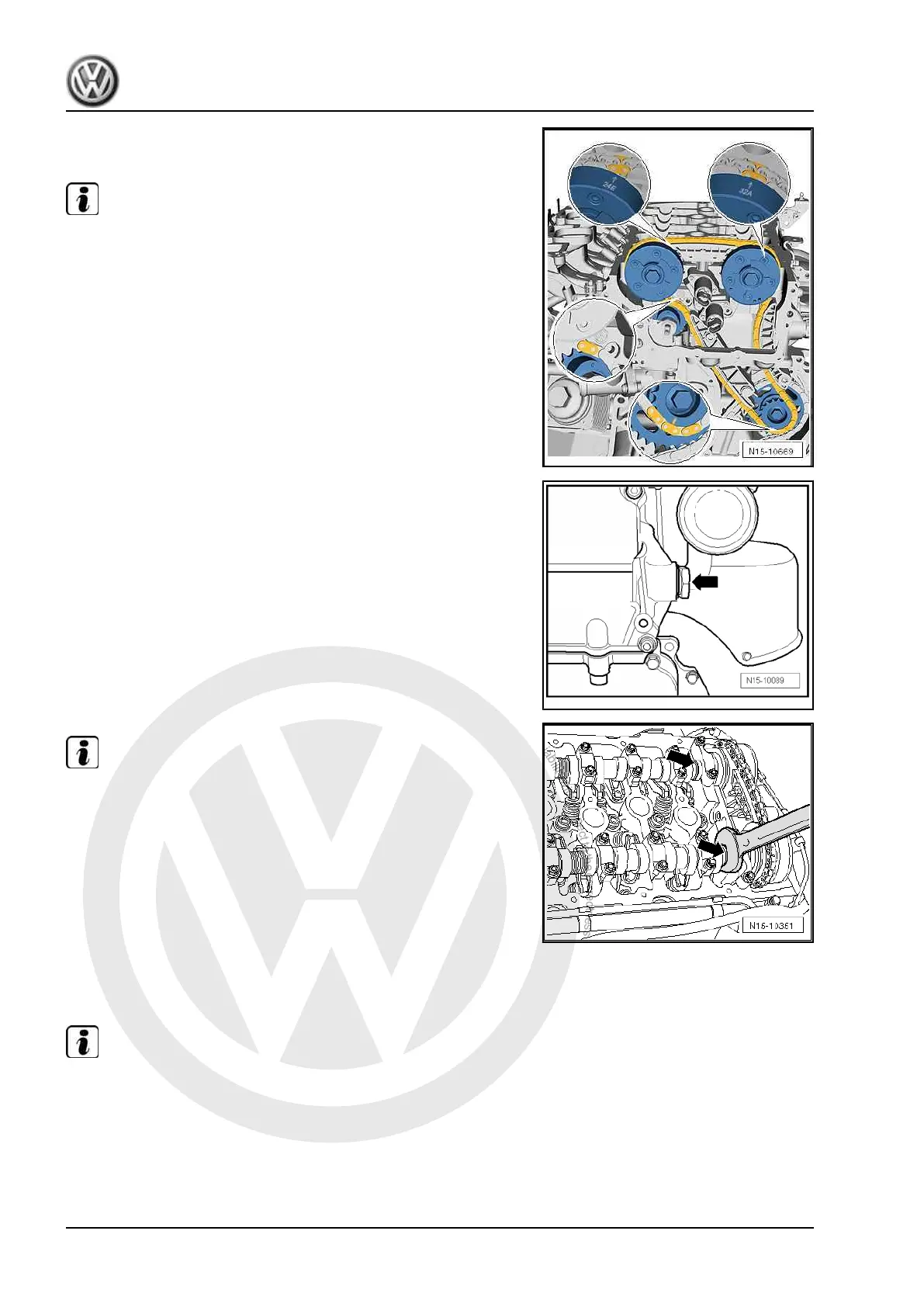

– Check position of copper coloured chain links to adjustment
markings.
Note
The copper coloured chain links no longer align with the adjust‐
ment markings once the crankshaft has been turned.
– Install chain tensioner for camshaft timing chain -arrow-.
Specified torque: 50 Nm.
– Remove camshaft bar - T10068 A- and tighten bolt of camshaft
adjuster. Specified torque: 60 Nm +
1
/
4
turn (90°)
Note
Only counterhold at camshaft with 27 mm open-end spanner
-arrow-. The camshaft bar - T10068 A- must not be fitted when
camshaft adjuster is loosened or tightened.
Further assembly is carried out in the reverse order of removal.
1.4 Removing and installing oil pump drive
timing chain
Note
Procedure is only possible with engine removed.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
74 Rep. gr.15 - Cylinder head, valve gear
