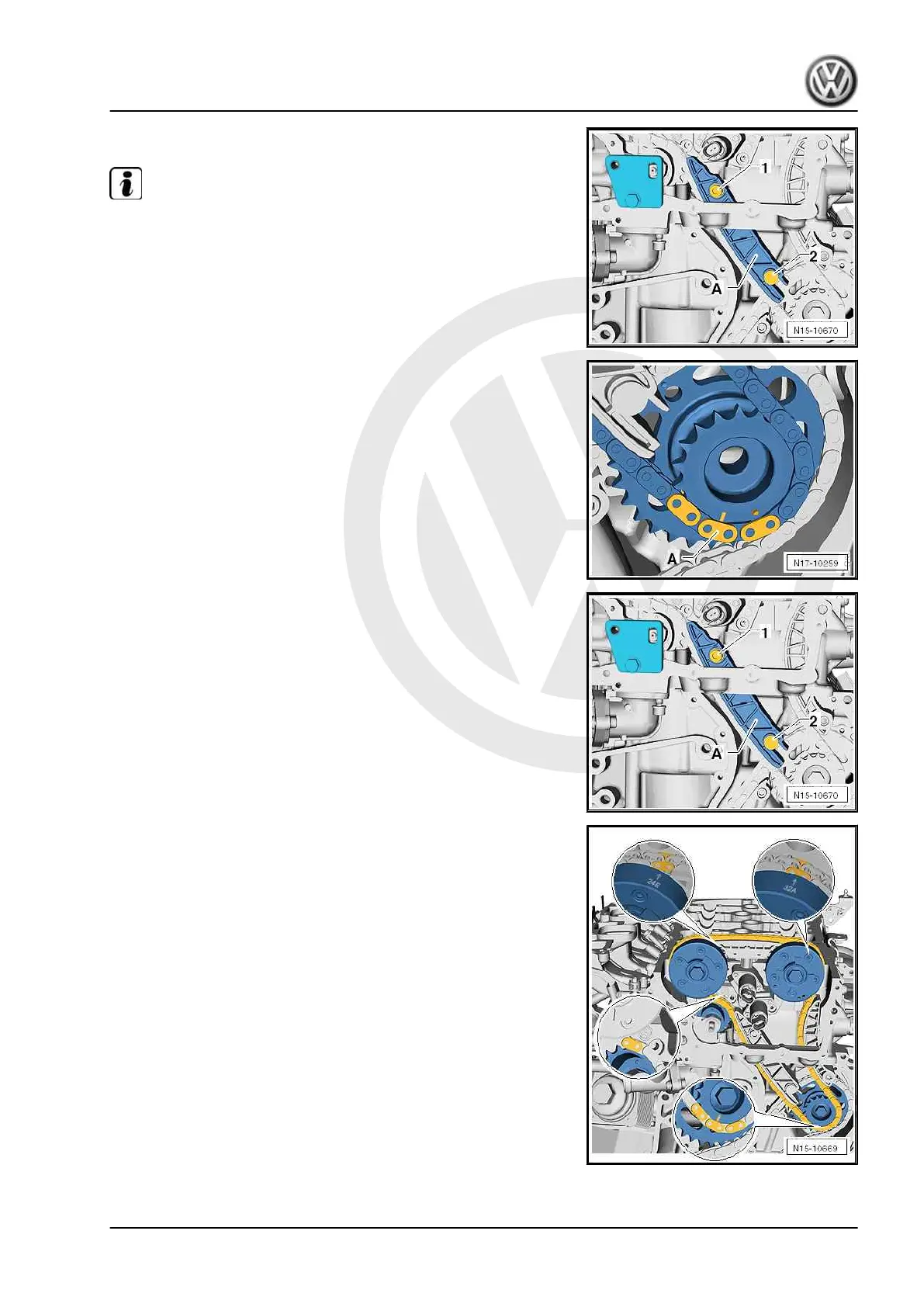

– Fit guide rail -A- and, initially, only tighten bolt -2-.
Note
Some of the camshaft timing chain links are copper coloured.
These chain links are to be used as an aid to installation. The 3
copper-coloured chain links next to each other must be placed on
the oil pump sprocket.
– First, fit camshaft timing chain onto oil pump sprocket. Marking
must align with middle copper coloured chain link -A-.
– Fit camshaft timing chain onto chain drive sprocket of high-
pressure pump. Marking must align with copper-coloured
chain link.
– Tighten bolt -1- for guide rail.
– Insert inlet camshaft adjuster »24E« into camshaft timing
chain in such a way that the copper-coloured chain link is
aligned with the marking on the camshaft adjuster. Bolt cam‐
shaft adjuster onto camshaft and tighten bolt hand-tight.
– Insert exhaust camshaft adjuster »32A« into camshaft timing
chain in such a way that copper-coloured chain link is aligned
with marking on camshaft adjuster. Bolt camshaft adjuster on‐
to camshaft and tighten bolt hand-tight.
