Removing:

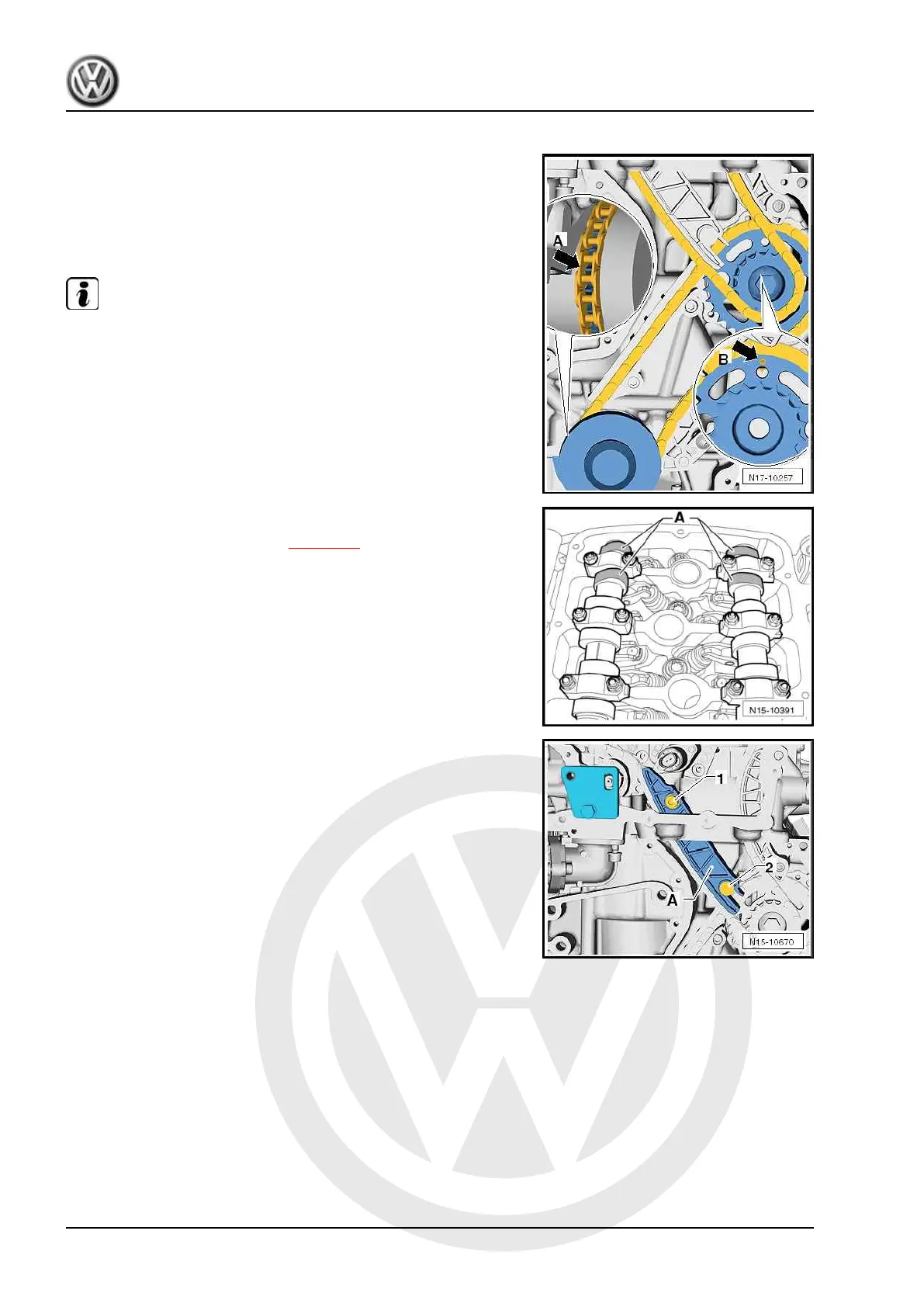

– Turn engine -at vibration damper- to setting marks.
• Ground tooth of drive sprocket -arrow A- must align with bear‐
ing joint.
• The marked hole -arrow- must be in line with the mark on the
oil pump.
Note
This position is reached only after every 4th full rotation.
Cams -A- of cylinder 1 must face each other.
– Removing camshaft adjuster ⇒ page 64 .
– Unscrew securing bolts -1- and -2-. Remove guide rail -A-.
– Remove camshaft timing chain out upwards.
Installing:
Condition:
• Crankshaft is at »TDC« position
• Chain drive sprocket for high-pressure pump is fixed in place
with adjusting tool - T10363-
• Camshafts have been fixed in place with camshaft bar -
T10068 A-
– Guide camshaft timing chain in through hole in cylinder head
from above.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
72 Rep. gr.15 - Cylinder head, valve gear
