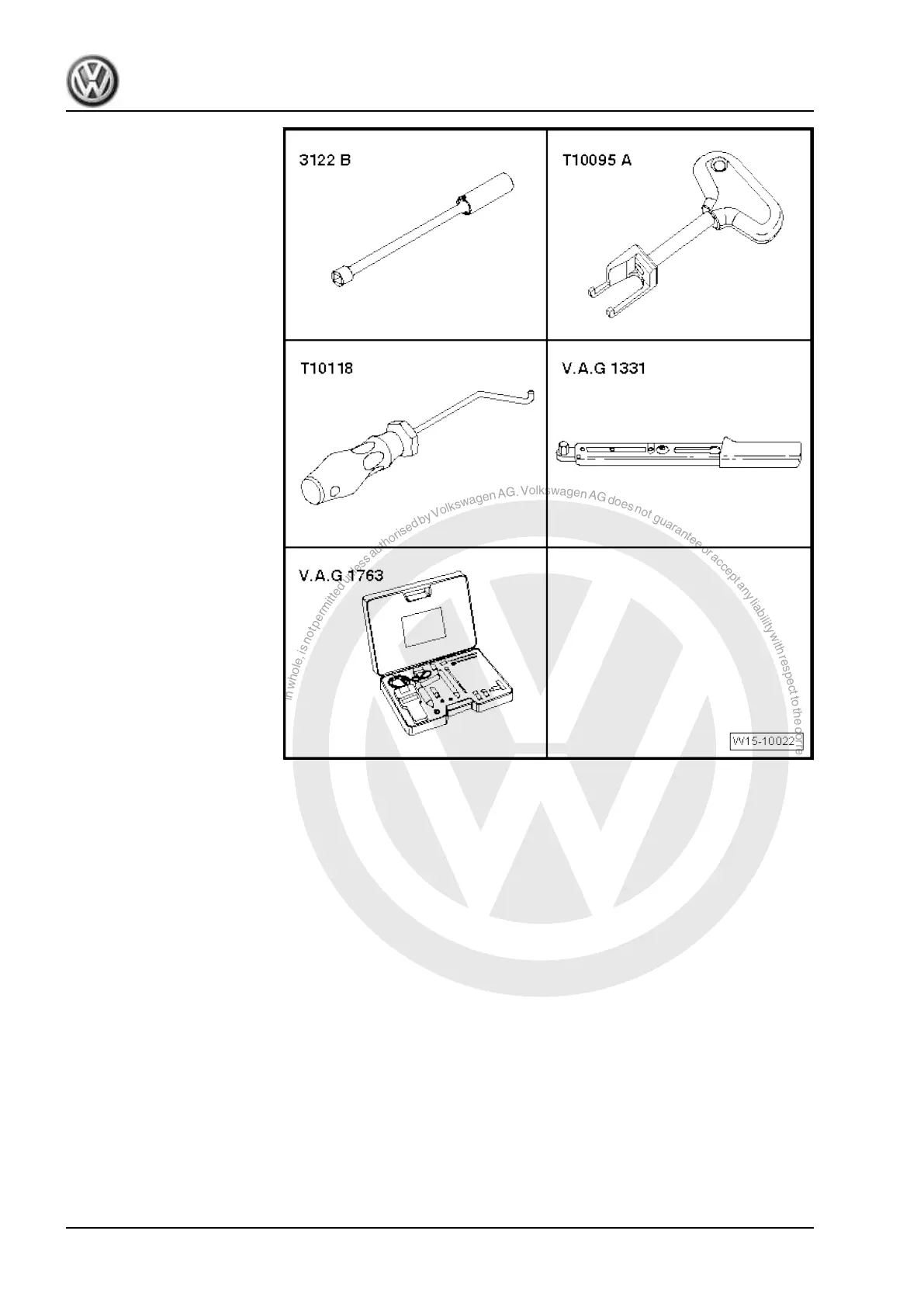

Special tools and workshop
equipment required
♦ Spark plug socket - 3122 B-
♦ Puller - T10095 A-
♦ Assembly tool - T10118-
♦ Torque wrench - V.A.G 1331-
♦ Compression tester - V.A.G 1763-
Check condition
• Engine oil temperature at least 30°C
• Battery voltage must be at least 11.5 V.
• All electrical consumers, e.g. lights and rear window heating,
must be switched off.
• If the vehicle is equipped with an air conditioner, it must be
switched off.
• On vehicles with automatic gearbox the selector lever must be
in “P” or “N” position.
Test sequence
– Remove fuse for fuel pump from fuse holder ⇒ Current flow
diagrams, Electrical fault finding and Fitting locations.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
96 Rep. gr.15 - Cylinder head, valve gear
