Removing the fuse interrupts the voltage supply for fuel pump
activation.

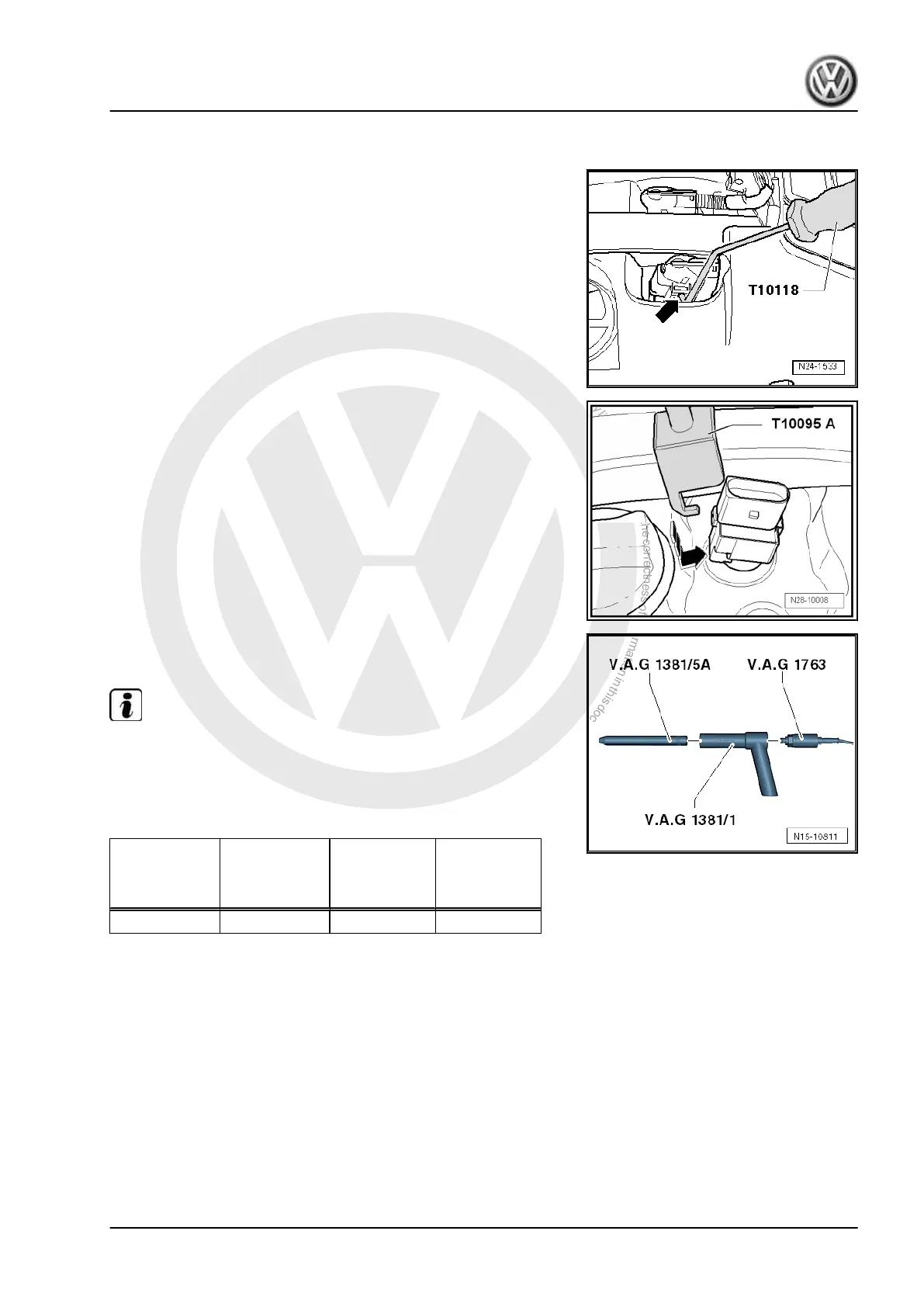

– Apply assembly tool - T10118- to locking mechanism button
-arrow- and carefully pull connector off.
– Push on puller - T10095 A- on from flat side of connector in
direction of arrow and pull out ignition coil with output stage.
– Unscrew spark plugs using spark plug socket and extension -
3122 B- .
– Check compression using compression tester - V.A.G 1763- ,
adapter - V.A.G 1381/1- and adapter - V.A.G 1381/5A- .
Note
Using compression tester ⇒ operating instructions .
– Have a second mechanic operate starter until tester shows no
further pressure increase.
Compression pressures:
Engine code New
bar pressure
Wear limit
bar pressure
Difference be‐
tween cylin‐
ders
bar pressure
CGRA, CMTA 11.0 … 13.0 8.0 max. 3.0
– Insert spark plugs using spark plug socket - 3122 B- and tight‐
en to 18 Nm.
– Now install ignition coils with output stage.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
2. Cylinder head 97
