2 Assembly mountings
⇒ “2.1 Assembly overview - assembly mountings”, page 27 .
⇒ “2.2 Removing and installing engine mounting”, page 27

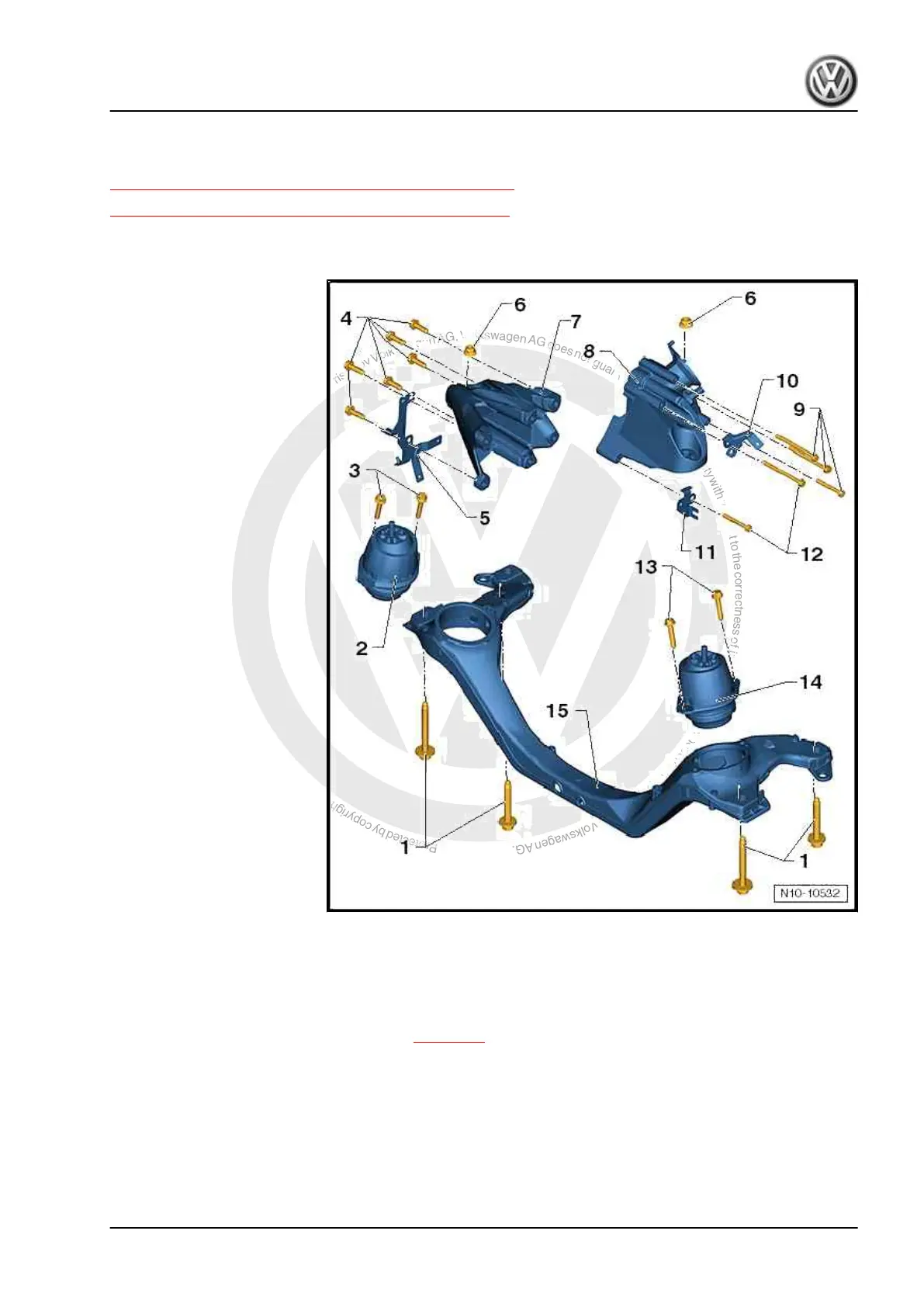

2.1 Assembly overview - assembly mountings
1 - Engine carrier bolts
❑ 120 Nm + turn 180° fur‐
ther
❑ Renew
2 - Right engine mounting
3 - 60 Nm
4 - 40 Nm
5 - Cable bracket
6 - 75 Nm
7 - Right engine support
8 - Left engine support
❑ With oil filter housing
9 - 25 Nm
10 - Cable bracket
11 - Cable bracket
12 - 25 Nm
13 - 60 Nm
14 - Left engine mounting
15 - Engine carrier
2.2 Removing and installing engine mount‐
ing
Removing:
– Support engine in its installation position ⇒ page 24 .
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
2. Assembly mountings 27
