Position of double clamp
– Fit double clamp as shown and tighten to 20 Nm.

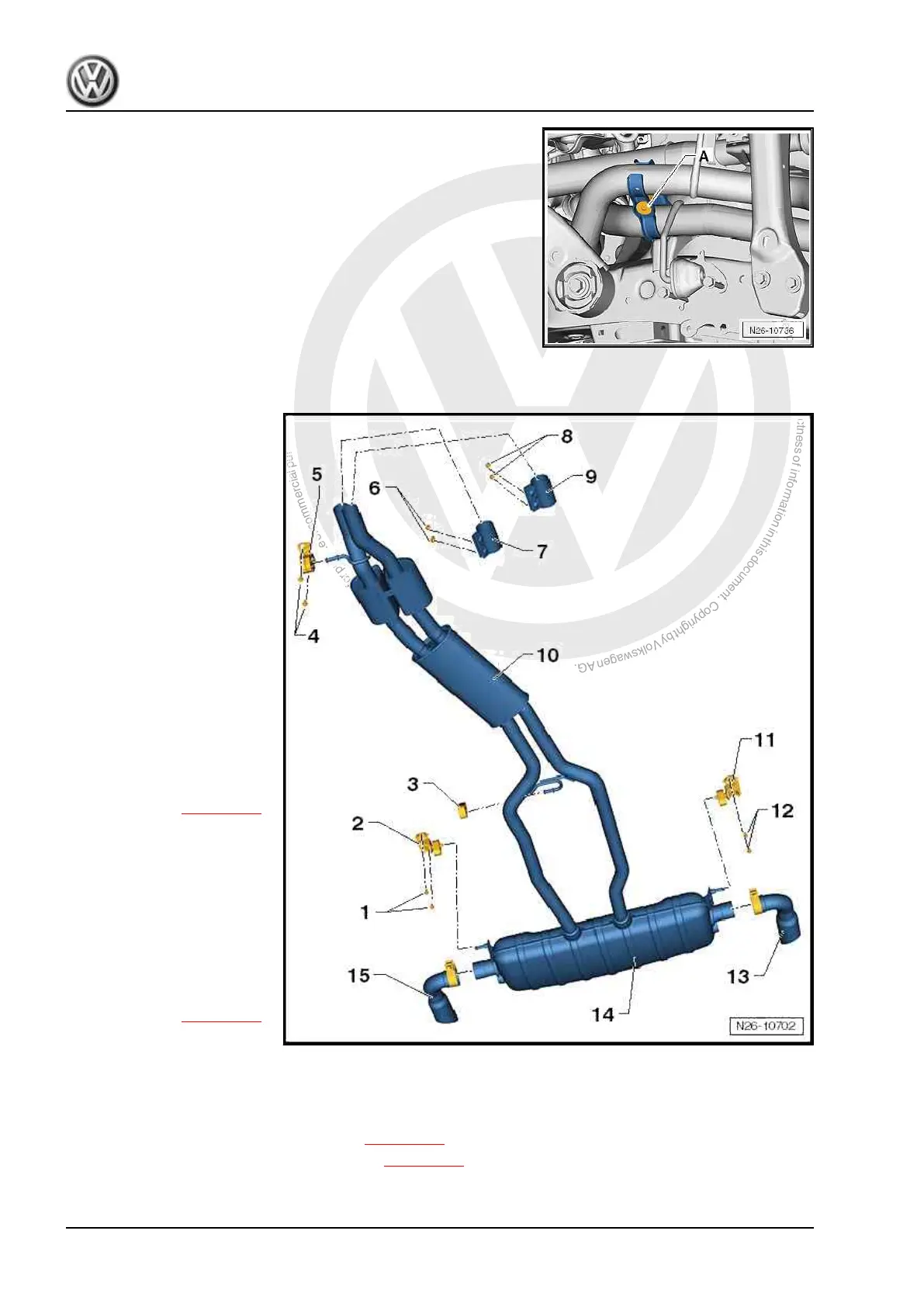

2.2 Assembly overview - silencers
1 - Bolts
❑ 23 Nm
2 - Mounting
❑ Renew if damaged
3 - Mounting
❑ Renew if damaged
4 - Bolts
❑ 23 Nm
5 - Mounting
❑ Renew if damaged
6 - Nuts
❑ For clamp.
❑ 35 Nm
7 - Clamping sleeve
❑ Renew
❑ Align exhaust system
free of tension before
tightening ⇒ page 265 .
❑ Tighten threaded con‐
nections evenly.
8 - Nuts
❑ For clamp.
❑ 35 Nm
9 - Clamping sleeve
❑ Renew
❑ Align exhaust system
free of tension before
tightening ⇒ page 265 .
❑ Tighten threaded con‐
nections evenly.
10 - Centre silencer
❑ Combined in one unit with rear silencer as original equipment. Can be renewed individually for repair
purposes.
❑ Separating centre and rear silencers ⇒ page 259
❑ Aligning exhaust system free of tension ⇒ page 265 .
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
258 Rep. gr.26 - Exhaust system
