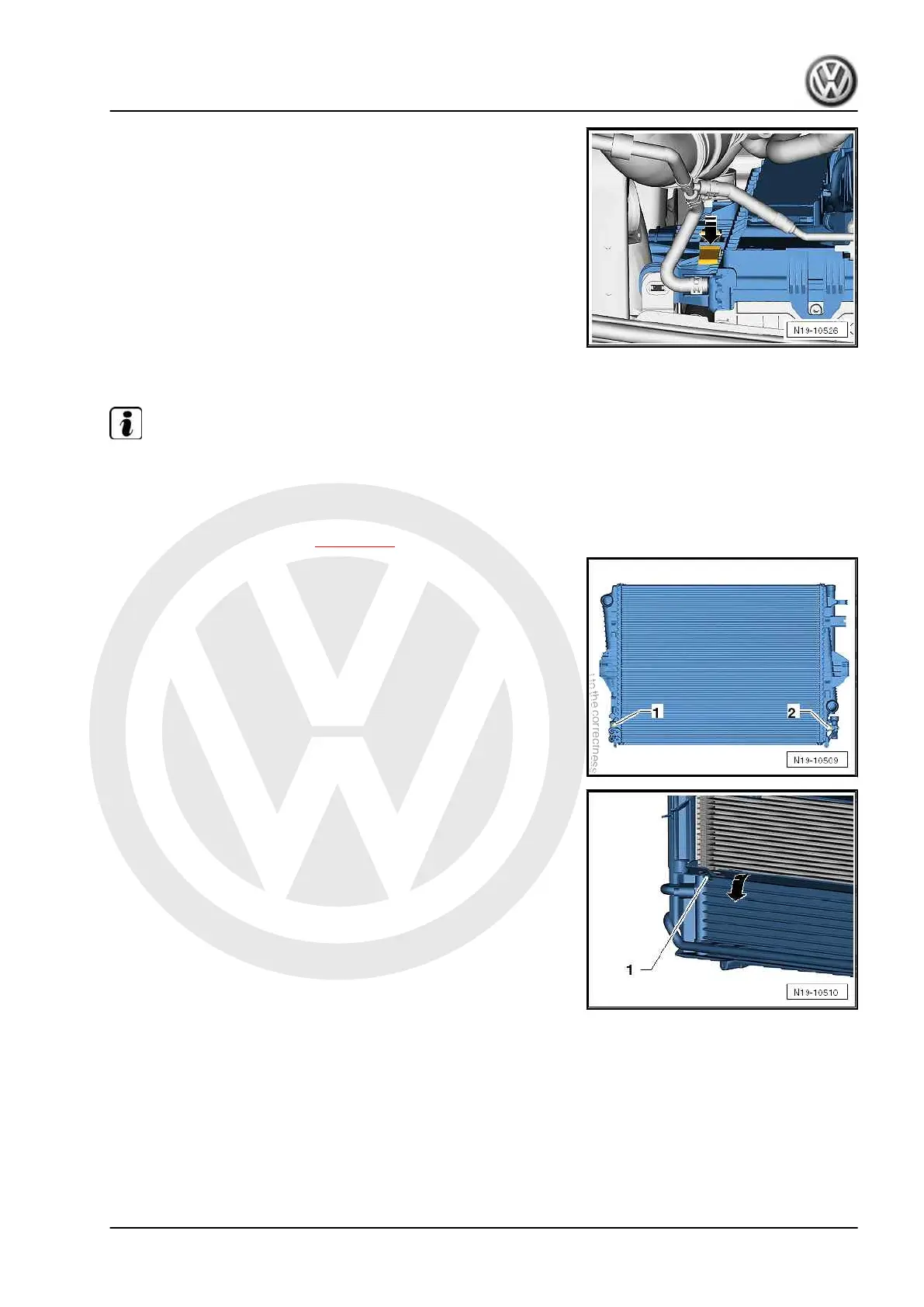

– Press in clips -arrows- on both sides of cowl and take cowl out
upwards.
Installing:
Install in reverse order of removal.
5.4 Dismantling cooler module
Note
The radiator module consists of a radiator for coolant, a condens‐
er, a cooler for power-assisted steering oil and a gear oil cooler.
Condition
• Radiator module removed ⇒ page 165 .
– Unscrew securing bolts -1- and -2-.
– Turn radiator module over. Press locking mechanism -1- and
swing out gear oil cooler.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
5. Radiator and radiator fans 171
