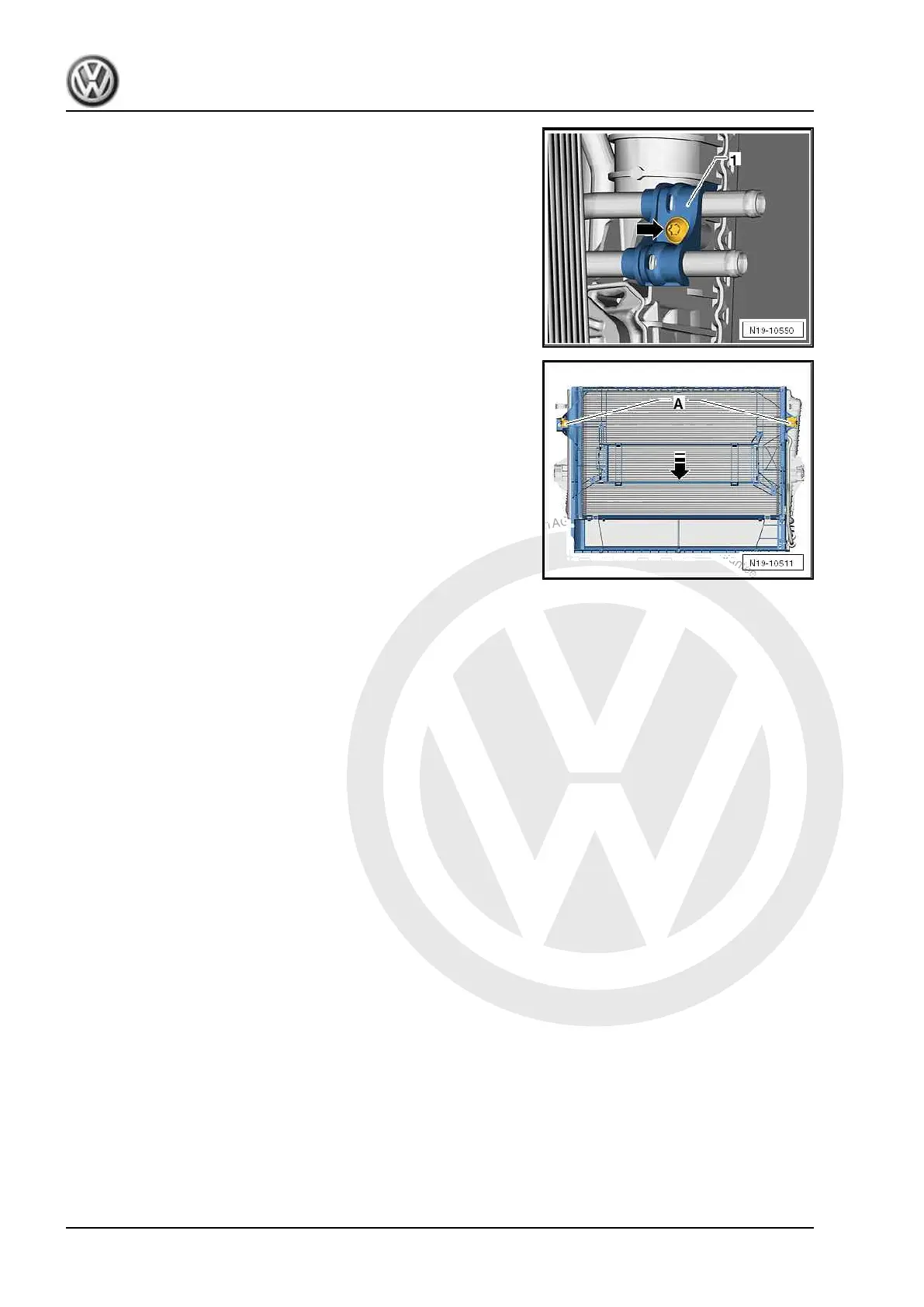

– Unscrew bolts -arrows- and remove bracket -1- and then
swing out power-assisted steering oil cooler.
– Remove clamps -A-, lift condenser a little and remove from
radiator in direction of arrow.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
172 Rep. gr.19 - Cooling
