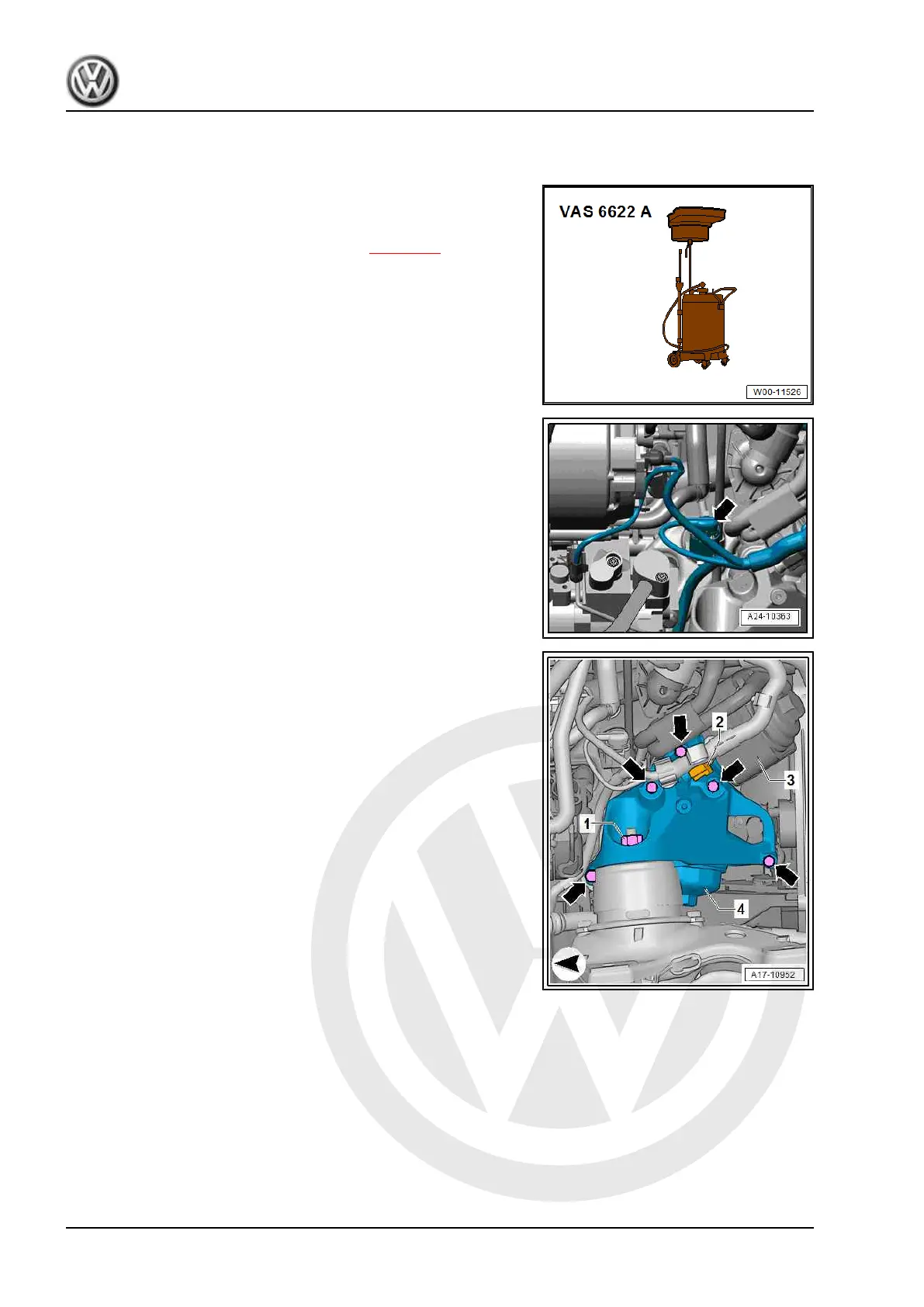

2.3 Removing and installing oil filter hous‐
ing, engine support
Used oil collector and extractor - VAS 6622 A-
Removing
– Support engine in its installation position ⇒ page 24 .
– Unbolt power-assisted steering reservoir, and lay it to one
side.
– Remove connector -arrow- for engine speed sender - G28-
from dipstick guide tube, and disconnect it.
– Separate electrical connector -2- on oil pressure switch - F1- .
– Unscrew nut -1- and the bolts -upper arrows- which can be
accessed from above.
– Clamp off coolant hoses on engine oil cooler, and pull them
off.
