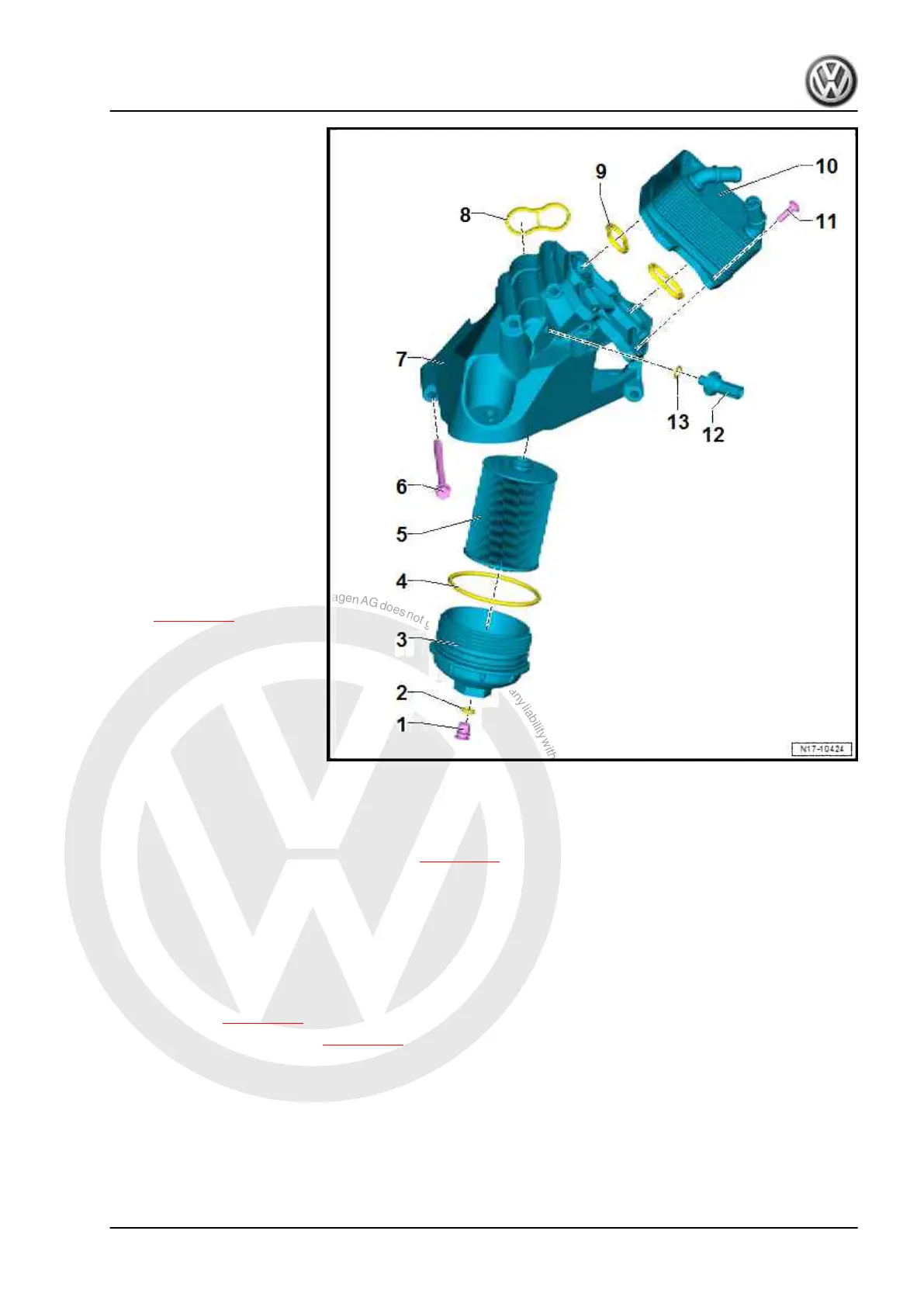

1 - Oil drain plug, 10 Nm
❑ Use flexible funnel -
VAS 6675- to catch oil.
2 - Seal
❑ Renew
❑ Lubricate before as‐
sembling.
3 - Oil filter lower part, 25 Nm
❑ Drain before removing.
❑ With bypass valve,
opening pressure: 2.50
bar
4 - Seal
❑ Renew
❑ Lubricate before as‐
sembling.
5 - Oil filter element
❑ Observe change inter‐
vals.
6 - 23 Nm
7 - Left engine support with oil
filter housing
❑ Removing and installing
⇒ page 130
8 - Seal
❑ Renew
❑ Lubricate before as‐
sembling.
9 - Oil cooler seal
❑ Renew
❑ Lubricate before as‐
sembling.
10 - Engine oil cooler
❑ Ensure clearance to adjacent components
❑ Connection diagram for coolant hoses ⇒ page 135
11 - Bolt
❑ 8 Nm
12 - Oil pressure switch - F1- , 20 Nm
❑ black
❑ Switch point 1.4 bar.
❑ If seal is leaking, nip open and renew.
❑ Checking ⇒ page 131
❑ Removing and installing ⇒ page 131
13 - Seal
❑ Renew
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
2. Oil filter, oil pressure switch 129
