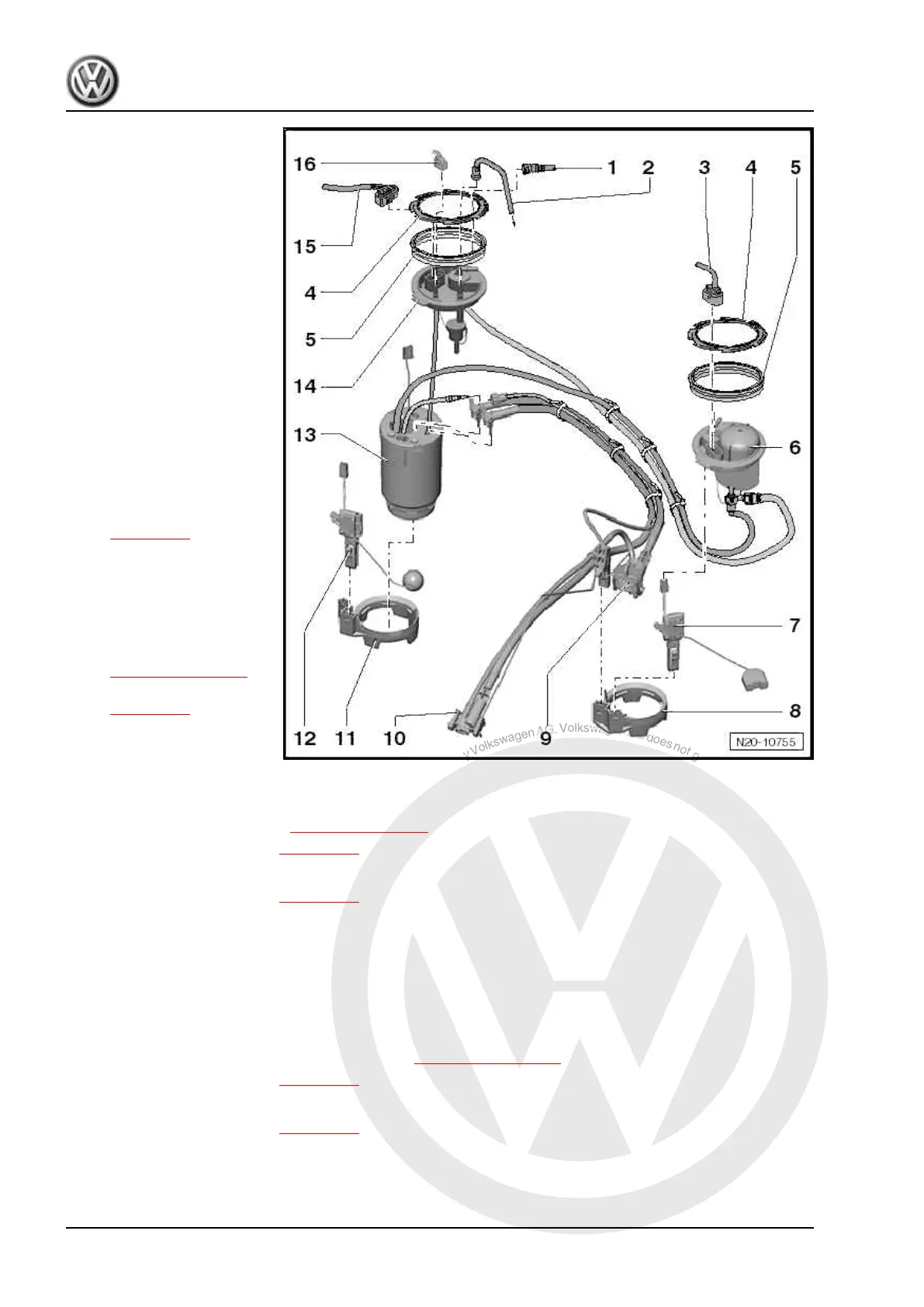

1 - Breather line
❑ blue
❑ Ensure firm seating
2 - Fuel supply line
❑ black
❑ Ensure firm seating
3 - Connector
❑ For fuel gauge sender 2
- G169-
4 - Locking ring 145 Nm
❑ Remove and install us‐
ing wrench - T10202- .
❑ Ensure firm seating
5 - Seal
❑ Renew
6 - Fuel filter
❑ Left side
❑ Fuel filter: Renew
⇒ page 179
7 - Fuel gauge sender 2 -
G169-
❑ Left side
❑ Flat, square float
❑ Clipped on bottom of
tank into retaining ring
⇒ Item 8 (page 178)
❑ Removing and installing
⇒ page 184
8 - Retaining ring
❑ Welded to fuel tank
❑ For fuel gauge sender 2 - G169- and retainer for suction jet pump
9 - Suction-jet pump
❑ Clipped into retaining ring ⇒ Item 8 (page 178) .
❑ Removing and installing ⇒ page 184
10 - Suction-jet pump
❑ Removing and installing ⇒ page 184
11 - Retaining ring
❑ Welded to fuel tank
❑ For fuel gauge sender - G-
12 - Fuel gauge sender - G-
❑ Right side
❑ Round, ball float
❑ Clipped on bottom of tank into retaining ring ⇒ Item 11 (page 178)
❑ Removing and installing ⇒ page 188
13 - Fuel delivery unit
❑ Removing and installing ⇒ page 188
14 - Flange
❑ Right side
❑ With pressure limiting valve
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
178 Rep. gr.20 - Fuel supply system
