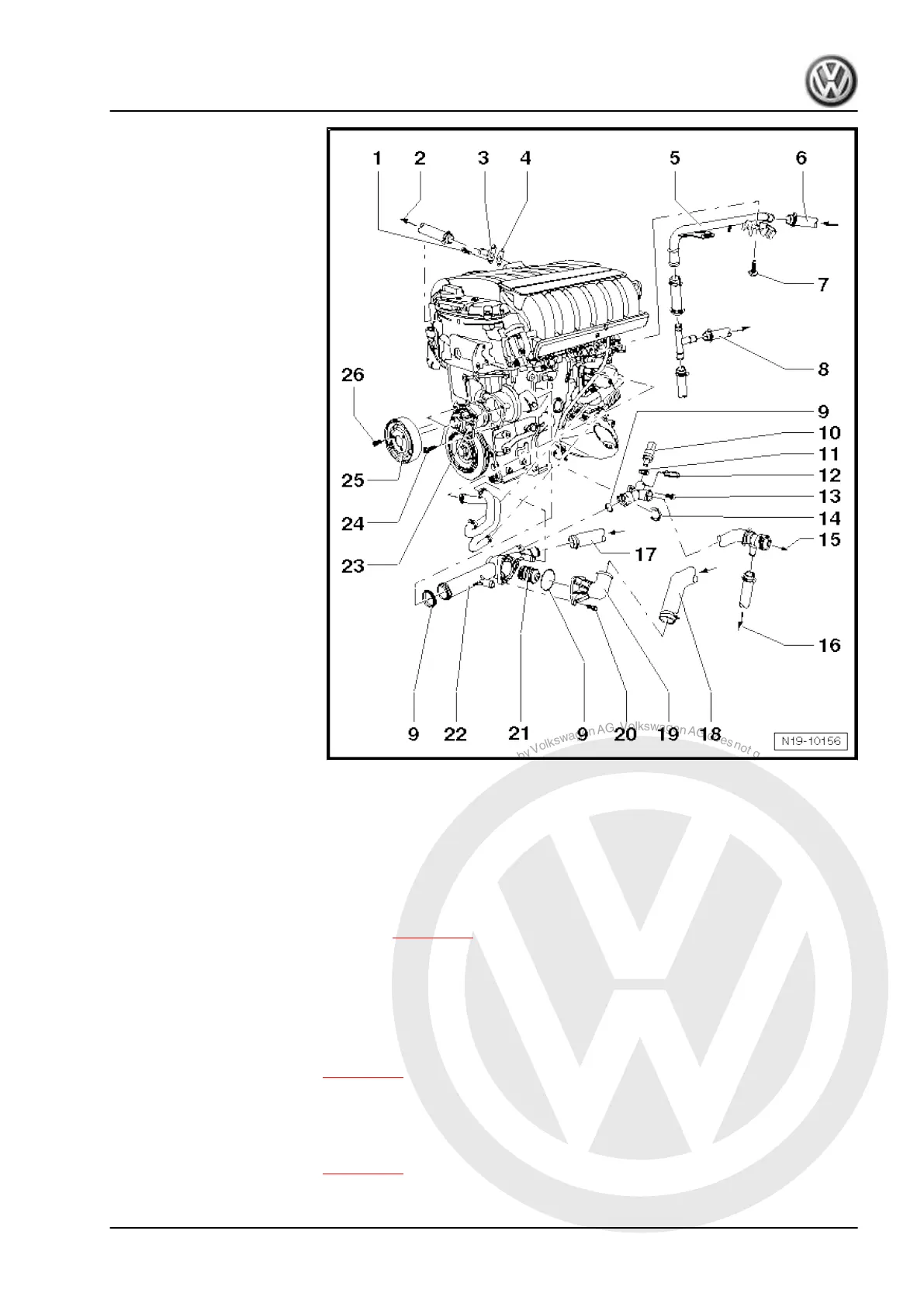

1 - 10 Nm
2 - To connecting piece be‐
tween recirculation pump -
V55- and expansion tank
3 - Union
4 - Seal
❑ Renew
5 - Coolant pipe
6 - From bottom of expansion
tank
7 - 6 Nm
8 - From alternator
9 - Seal
❑ Renew
10 - Radiator outlet coolant -
G62-
❑ Before removing, re‐
lease pressure in cool‐
ing system if necessary.
11 - O-ring
❑ Renew
12 - Retaining clip
❑ Check for firm seating
13 - 10 Nm
14 - Retaining clip
❑ Check for firm seating
15 - To top of radiator
16 - To top of expansion tank
17 - From heat exchanger
18 - From front coolant pipe
19 - Union
❑ For thermostat
20 - 5 Nm
21 - Thermostat
❑ Removing and installing, checking ⇒ page 150
22 - Coolant pipe
❑ With thermostat housing
23 - Coolant pump
❑ Check for ease of movement.
❑ Check spray applied seal of coolant pump
❑ Removing and installing ⇒ page 148
24 - 8 Nm
25 - Belt pulley
❑ For coolant pump
❑ Removing and installing ⇒ page 148 , Removing and installing coolant pump
26 - 20 Nm
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
3. Coolant pump and thermostat 147
