Special tools and workshop
equipment required

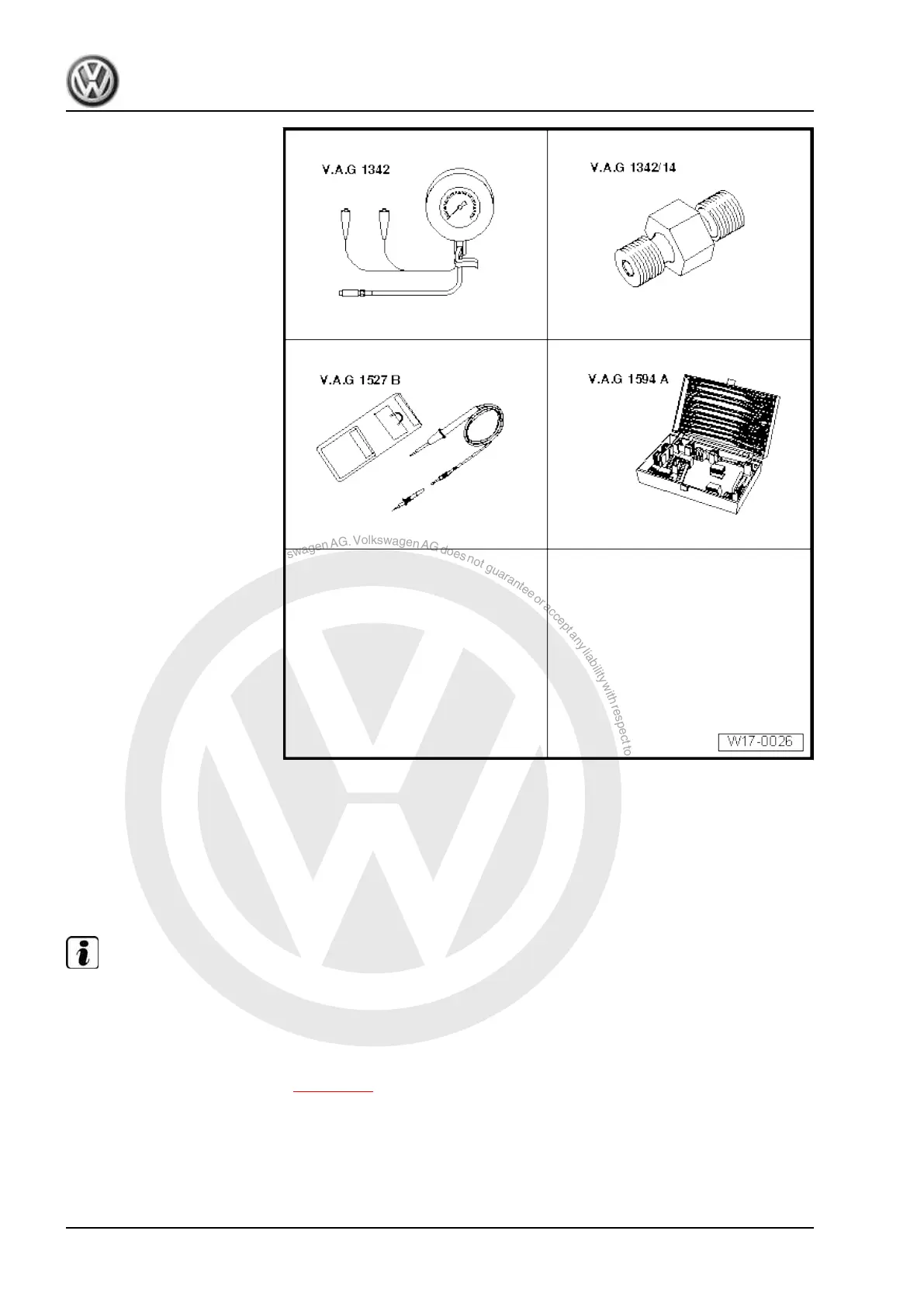

♦ Oil pressure tester - V.A.G 1342-
♦ Adapter - V.A.G 1342/14-
♦ Voltage tester - V.A.G 1527 B-
♦ Adapter set - V.A.G 1594C-
♦ Current flow diagram
Note
Functional check and repair of the optical and acoustic oil pres‐
sure warning ⇒ Current flow diagrams, Electrical fault finding and
Fitting locations.
Test conditions
• Engine oil level OK, checking ⇒ page 118 .
• Engine oil temperature at least 80°C (radiator fan must have
run once)
• On vehicles with automatic gearbox the selector lever must be
in “P” or “N” position.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
132 Rep. gr.17 - Lubrication
