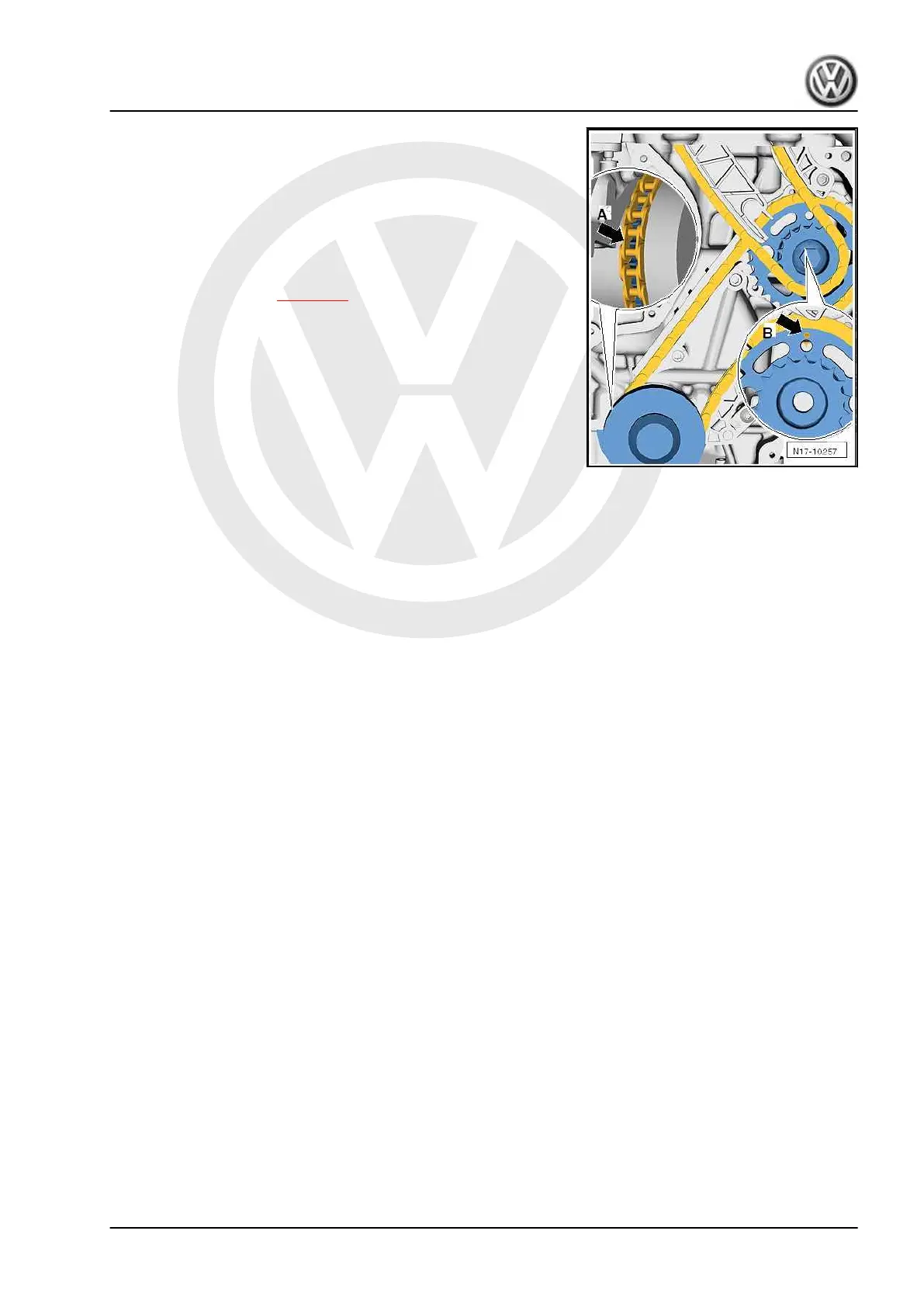

– Recheck adjustment markings.
• Ground tooth of drive sprocket -arrow A- must align with bear‐
ing joint.
• The marked hole -arrow B- must be in line with the mark on
the oil pump.
–
Tighten sprockets to 60 Nm + 90° (
1
/
4
turn) further. To do this,
counterhold vibration damper using counterhold - T10172- .
– Install sealing flange ⇒ page 41 .
Further assembly is carried out in the reverse order of removal.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
1. Sump, oil pump 127
