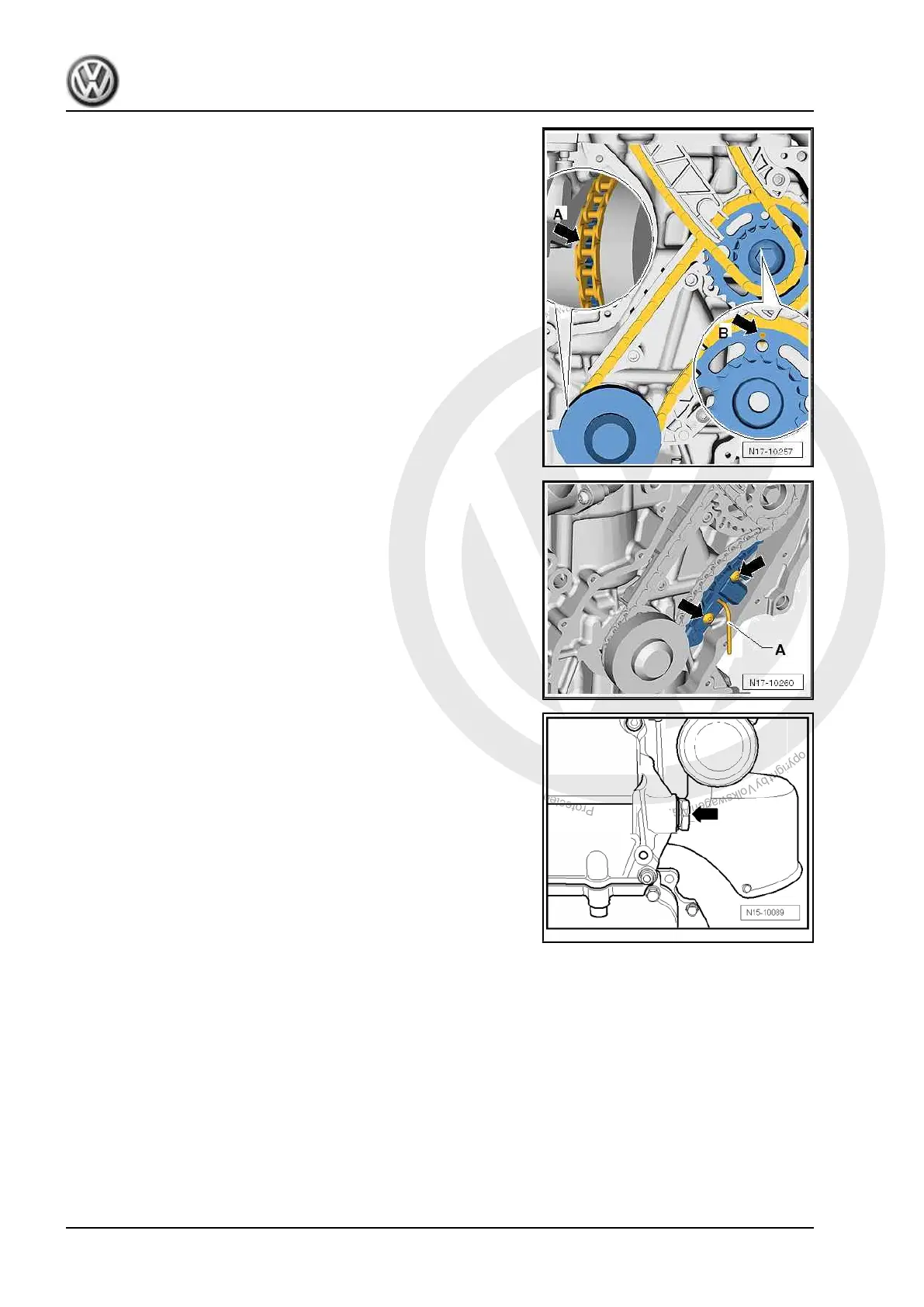

– Carefully pull sprocket off oil pump and swing upwards a little.
In this position, fit the camshaft timing chain. The marking
made during removal must align.
– Fit sprocket onto oil pump shaft again and tighten hand-tight.
– Install lower chain tensioner and tighten to 8 Nm -arrows-.
– Remove Allan key -A-.
– Install chain tensioner for camshaft timing chain -arrow-.
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.6 l engine, 4V) - Edition 12.2019
126 Rep. gr.17 - Lubrication
